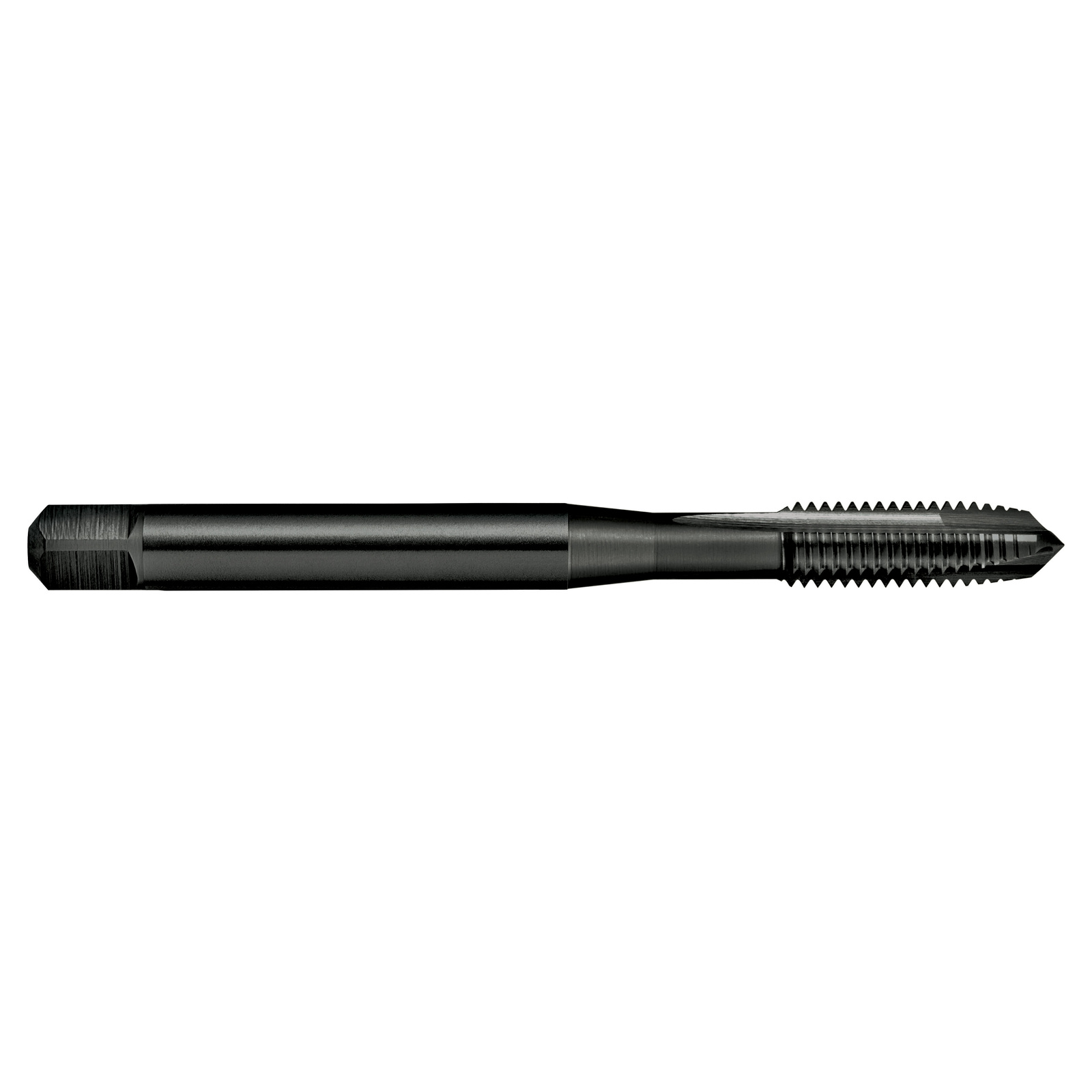

Tap T144 M 8x1.25 6HX Gun H Din371 B PM-Co. Blu Sutton T1440800



Features

  • Suitable for harder short chipping materials up to 45 HRc
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: H (for hard materials forming short chips)
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: 6HX
  • Lead: Form B / 4.5 x P

Part Number/SKU: T1440800

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1440800
Barcode # 9311963398464
Brand Sutton Tools
Shipping Weight 0.0350kg
Shipping Width 0.017m
Shipping Height 0.014m
Shipping Length 0.115m
Shipping Cubic 0.000027000m3
