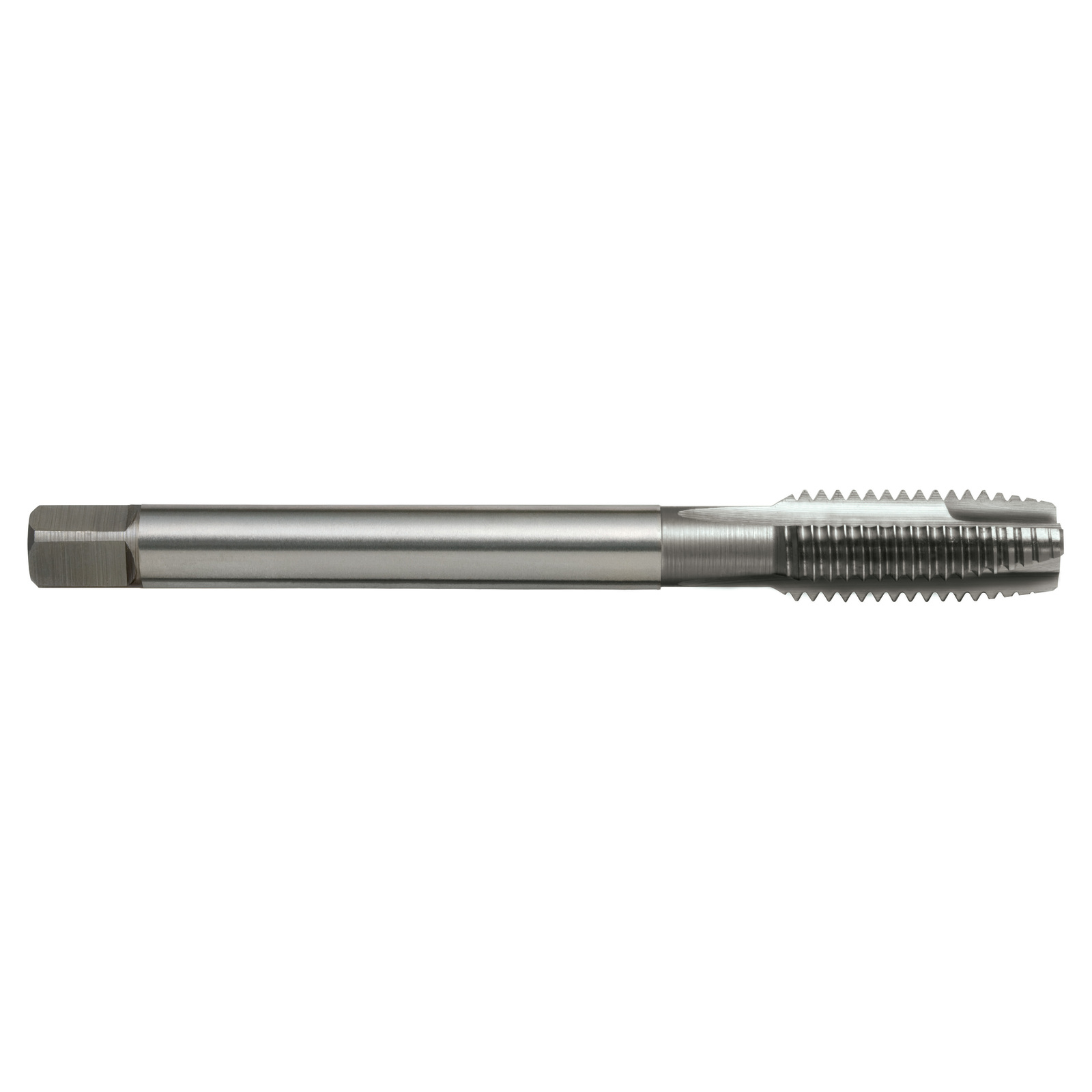

Tap T123 M 16x2 6H Gun W Din376 B HSSE Ni Sutton T1231600



Features

  • Suitable for use in soft materials
  • CrN for copper and non-ferrous materials
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: W (for soft materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Plasma Nitride (Ni)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Part Number/SKU: T1231600

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1231600
Barcode # 9311963393315
Brand Sutton Tools
Shipping Weight 0.1060kg
Shipping Width 0.002m
Shipping Height 0.002m
Shipping Length 0.013m
