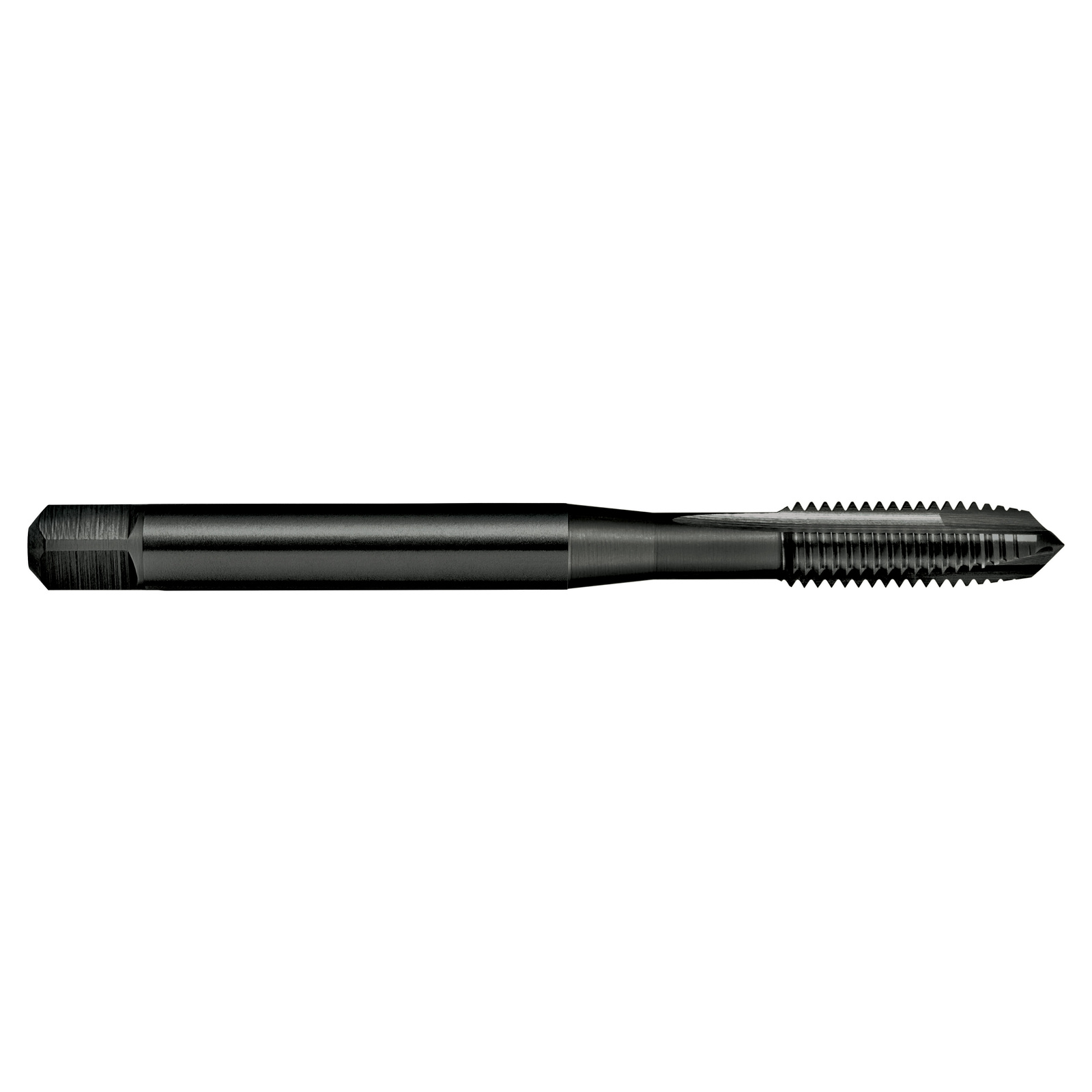

Tap T114 M 3x0.5 6HX Gun VA Din371 B PM-V3 Blu Sutton Tools T1140300

Features

• PM-HSSE V3 offers superior performance
• Use in stainless steels and high-strength steels
• Suitable for materials up to 850N/mm2
• Through holes
• Depths up to 3 x d1

Specifications

• Designation: VA (for stainless and tough steels)
• Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
• Finish: Steam Oxide (Blue)
• Max Cut Depth: 3xD
• Shank Form: Reinforced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun)
• Standard: DIN371
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: 6HX
• Lead: Form B / 4.5 x P

Part Number/SKU: T1140300

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
