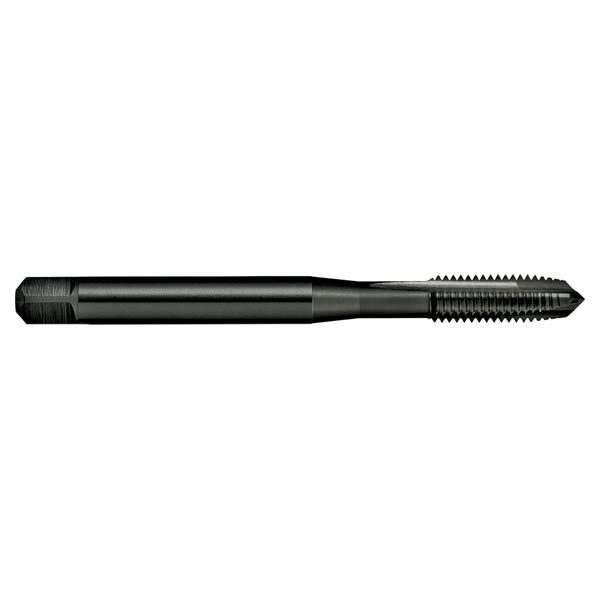

Tap T110 M 5x0.8 6H GUN VA DIN371 B HSSE BLU Sutton T1100500



  • Use in stainless steels and high strength steels
  • Suitable for materials up to 850N/mm2
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Stainless Steel - Duplex

Part Number/SKU: T1100500

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1100500
Barcode # 9311963102221
Brand Sutton Tools
Shipping Weight 0.0140kg
Shipping Width 0.009m
Shipping Height 0.009m
Shipping Length 0.094m
Shipping Cubic 0.000008000m3
