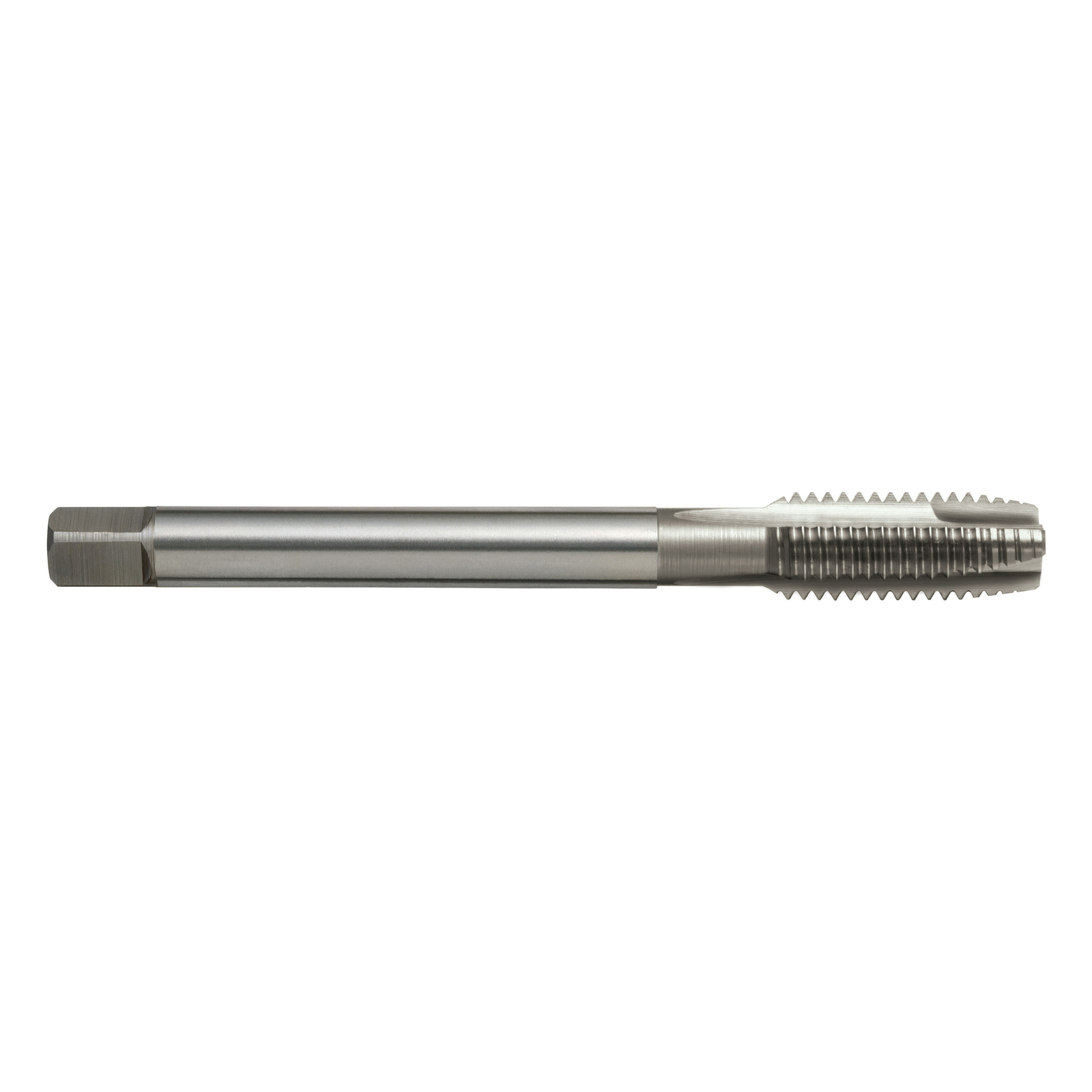

Tap T107 M 14x2 6G GUN N DIN376 B HSSE Sutton T1071400



Features

  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 3 / 6G
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Part Number/SKU: T1071400

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1071400
Barcode # 9311963397481
Brand Sutton Tools
Shipping Weight 0.0610kg
Shipping Width 0.017m
Shipping Height 0.017m
Shipping Length 0.123m
Shipping Cubic 0.000036000m3
