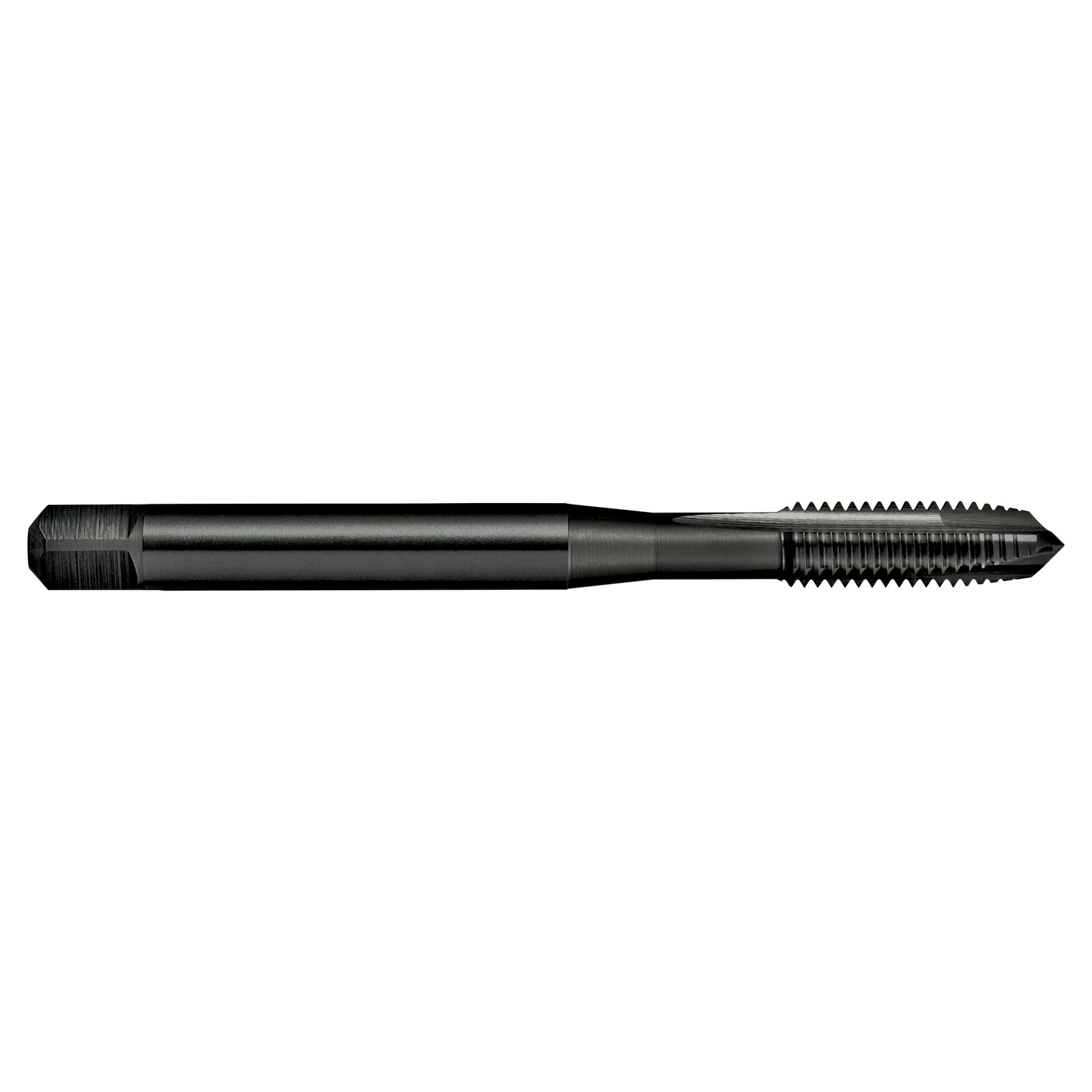

Tap T102 M 7x1 6H Gun N Din371 B HSSE Blu Sutton T1020700



Features

  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Part Number/SKU: T1020700

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1020700
Barcode # 9311963397351
Brand Sutton Tools
Shipping Weight 0.0250kg
Shipping Width 0.014m
Shipping Height 0.014m
Shipping Length 0.116m
Shipping Cubic 0.000023000m3
