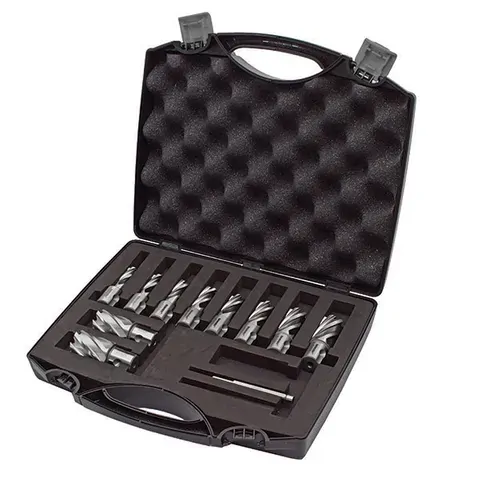

Silver Series Set Metric Short 12, 13, 14, 16, 17, 18, 20, 22, 24, 26mm & Pin Holemaker Asset-B

FEATURES:

  • M2AL High Speed Steel Material: M2AL high speed steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.
  • Step Hardened Process: This state of the art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance, while maintaining a softer body which is less susceptible to breakage than standard high speed steel cutters.
  • Multi-Cut Geometry: Provides smooth and fast cutting, with decreased chatter. This also increases the cutters ability to remove swarf away from the cut and helps to enhance centering.
  • Fully Ground With Internal Relief: This feature allows holemaker cutters to produce reamed quality, burr-free holes, and also helps to reduce torque and horsepower requirements.
  • Universal Shank: 19.05mm (3/4") universal shank for cutters up to and including 60mm diameter. Featuring 2 flat sections to suit most magnetic base drilling machines. Cutters of diameters 61mm and above feature a 31.75mm, 1-1/4" Weldon shank.

Set Includes:

  • 1x AS1225 12mm x 25mm
  • 1x AS1325 13mm x 25mm
  • 1x AS1425 14mm x 25mm
  • 1x AS1625 16mm x 25mm
  • 1x AS1725 17mm x 25mm
  • 1x AS1825 18mm x 25mm
  • 1x AS2025 20mm x 25mm
  • 1x AS2225 22mm x 25mm
  • 1x AS2425 24mm x 25mm
  • 1x AS2625 26mm x 25mm
  • 1x SP16003 Short Pilot Pin

Part Number/SKU: ASSET-B

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU ASSET-B
Brand Holemaker
Shipping Weight 2.56kg
Shipping Width 0.300m
Shipping Height 0.150m
Shipping Length 0.350m
Shipping Cubic 0.015750000m3
Unit Of Measure Pk
