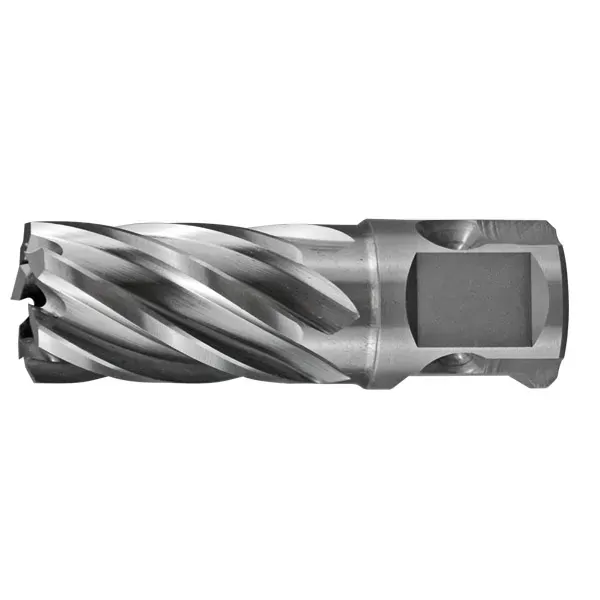

Silver Series Annular Cutter, Uni Shank 39mm x 25mm Holemaker AS3925

FEATURES:

  • M2AL High Speed Steel Material: M2AL high-speed steel is a high-alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and extended tool life.
  • Step Hardened Process: This state-of-the-art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance, while maintaining a softer body, which is less susceptible to breakage than standard high-speed steel cutters.
  • Multi-Cut Geometry: Provides smooth and fast cutting, with decreased chatter. This also increases the cutter's ability to remove swarf away from the cut, and helps to enhance centring.
  • Fully Ground with Internal Relief: This feature enables holemaker cutters to produce reamed, burr-free holes while also reducing torque and horsepower requirements.
  • Universal Shank: 19.05mm (3/4") universal shank for cutters up to and including 60mm diameter. Featuring 2 flat sections to suit most magnetic base drilling machines. Cutters of diameters 61mm and above feature a 31.75mm, 1-1/4"weldon shank. M2AL high-speed steel is a high-alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.

SPECIFICATIONS:

Diameter 39mm
Depth Of Cut 25mm
Pilot Pin Diameter 6.34mm
Shank Diameter 3/4"
Pilot Pin To Suit SP16003




Part Number/SKU: AS3925

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU AS3925
Brand Holemaker
Shipping Weight 0.7500kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.002250000m3
Unit Of Measure ea
