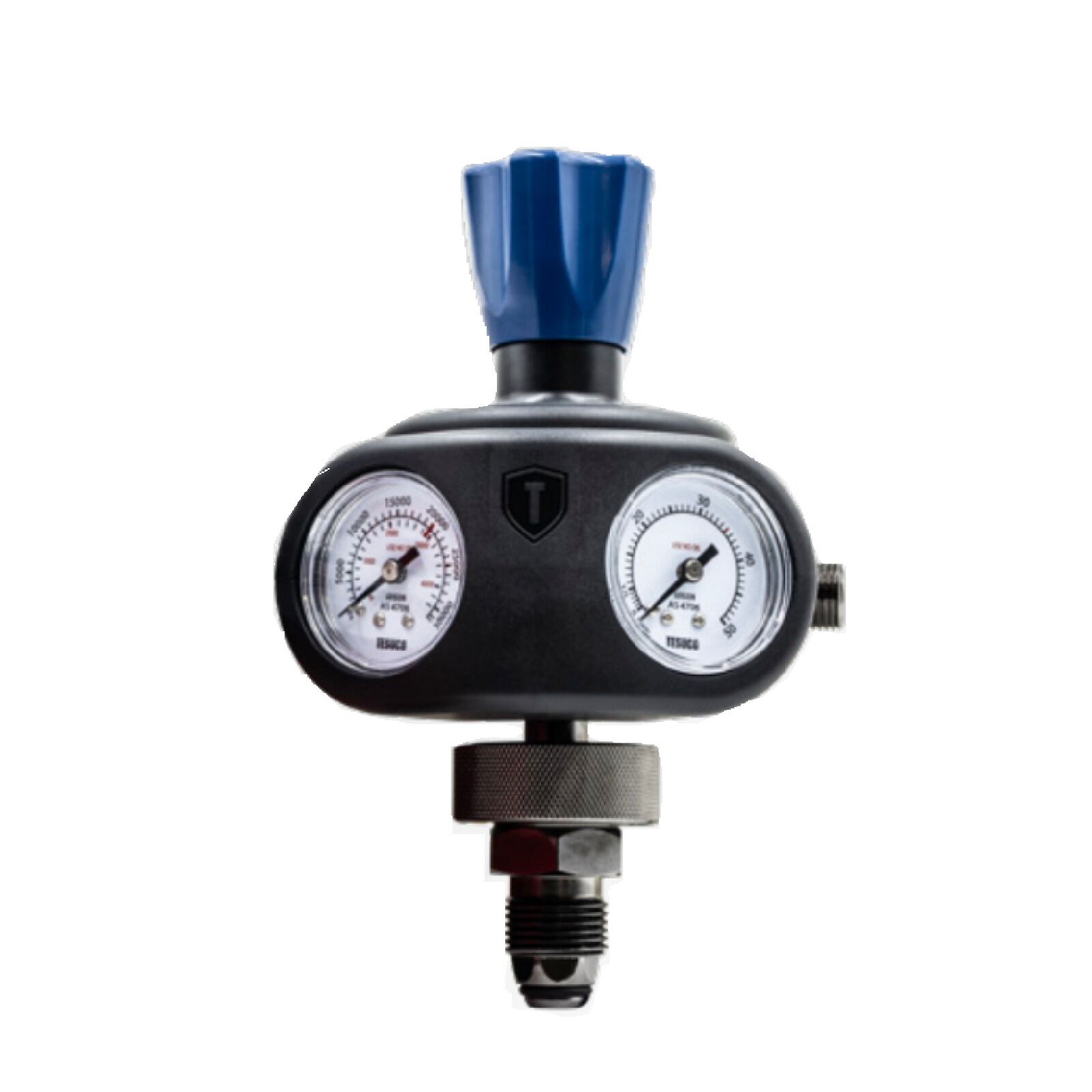

Shield Rear Entry Argon Regulator Type 10 Handwheel Tesuco RTS1RARFG

DESCRIPTION:

The shield rear entry argon regulator is purpose-built for welding and shielding gas applications. Featuring a calibrated flow gauge (0-35 L/min) and a heavy-duty shield gauge protection system, it delivers accurate and consistent gas flow. Its encapsulated seat design ensures reliable performance and long operational life in demanding welding environments

FEATURES:

• Precision flow control (0-35 L/min)
• 20000 kPa maximum inlet pressure capacity
• Argon HP pressure gauge
• Calibrated outlet flow gauge
• Dual shield gauge protection system
• Universal inlet configuration (top and side entry cylinders)
• Type 10 handwheel inlet  connection
• 5/8-18 UNF RH outlet connection
• Encapsulated seat for consistent flow performance.
• Durable brass body construction.
• Blue control knob for argon identification.
• Serviceable design - compatible with shield service kit
• Complies with AS 4267

KEY COMPONENTS:

• Upper shroud
• Lower shroud
• Argon HP (inlet) pressure gauge
• Argon flow gauge (0-35 L/min)
• Type 10 argon inlet stem
• Type 10 inlet stem nut
• Blue argon control knob
• 5/8-18 UNF RH outlet
• Shield service kit (diaphragm, encapsulated seat, and seal)

APPLICATIONS:

• Welding
• Weld purging
• Gas shielding

SPECIFICATIONS:

Part Number/SKU: RTS1RARFG
