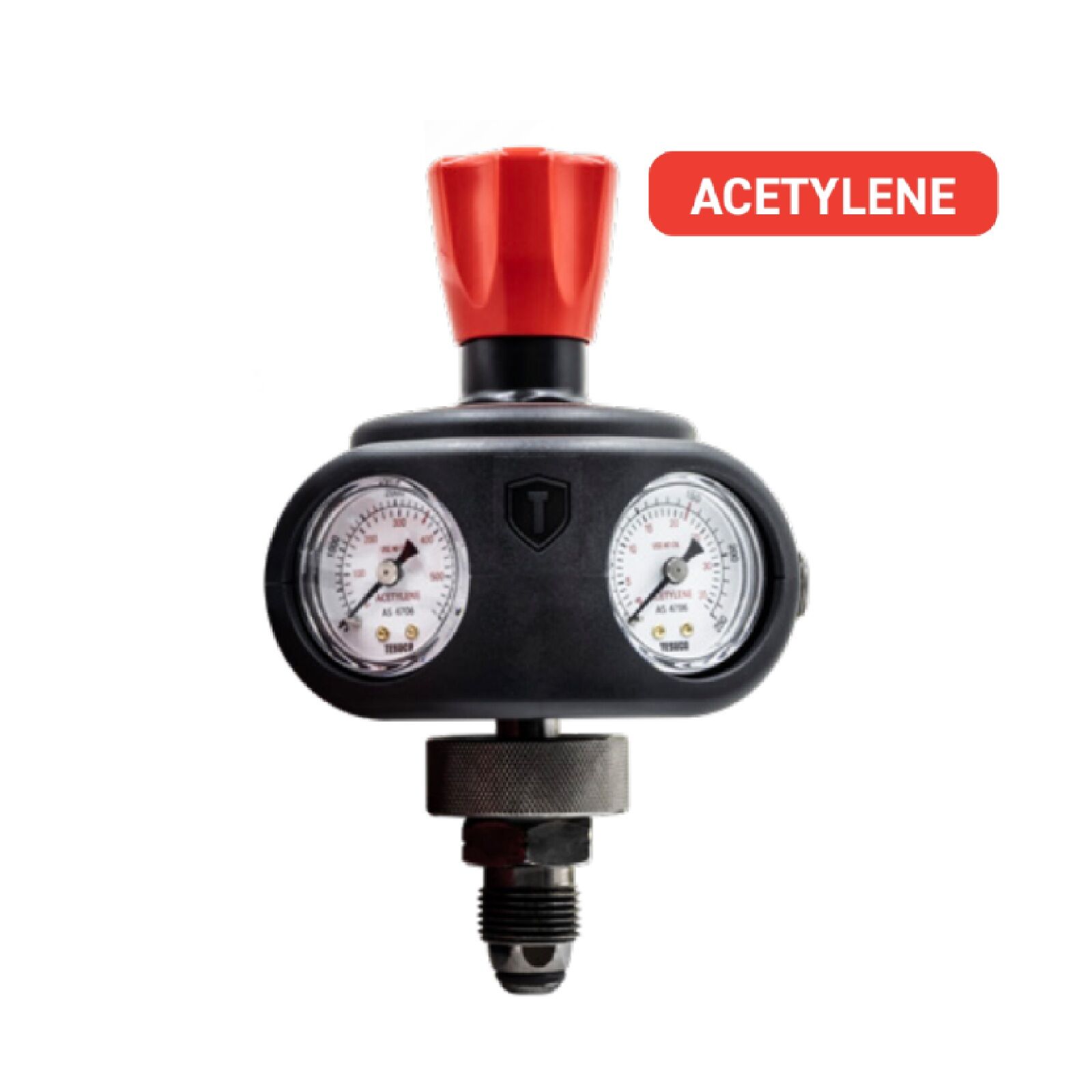

Shield Rear Entry Acetylene Regulator Type 20 Handwheel Tesuco RTS1RAC1.5

DESCRIPTION:

The shield rear entry Acetylene regulator is specifically engineered for safe and accurate acetylene gas control. Featuring a dual shroud gauge protection system and encapsulated seat technology, it ensures stable low-pressure delivery and long service life. Designed to withstand workshop and industrial conditions, it meets AS 4267 standards.

FEATURES:

• Accurate low-pressure control (0-150kPA).
• Designed for 2500kPA acetylene inlet pressure.
• Dual shield gauge protection system.
• Universal inlet configuration (top and side entry cylinders)
• Type 20 handwheel inlet connection.
• 5/8-18UNF LH outlet connection (acetylene standard).
• Encapsulated seat for durability and safety.
• Heavy-duty brass body.
• Red control knob for acetylene identification.
• Serviceable design - compatible with shield service kit.
• Complies with AS 4267

KEY COMPONENTS:

• Upper shroud
• Lower shroud
• Acetylene HP (inlet) pressure gauge
• Acetylene LP (inlet) pressure gauge
• Type 20 acetylene inlet stem
• Type 20 inlet stem nut
• Red Acetylene control knob
• 5/8-18UNF LH outlet
• Shield service kit (Diaphragm, encapsulated seat, and seal)

APPLICATIONS:

• Heating
• Cutting
• Welding
• Plumbing
• Manifold installations.

SPECIFICATIONS:

Part Number/SKU: RTS1RAC1.5
