Retracta 15m x 12.5mm

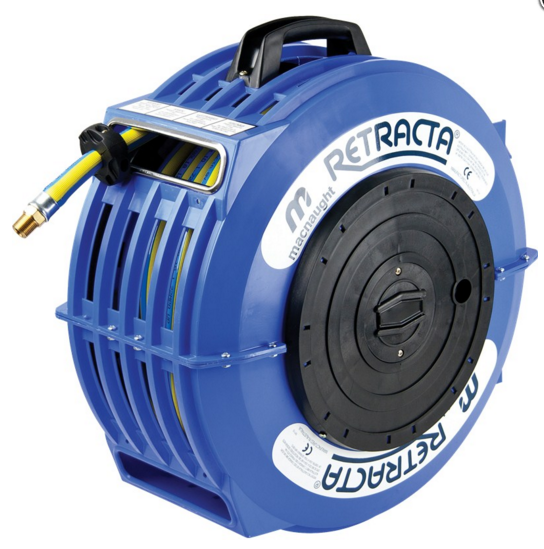

The High Quality RETRACTA AW2150 Water Hose Reel is a premium quality, strong, reliable reel, constructed using UV stabilised polypropylene, heavy duty rewind spring, quality swivel assembly, 10mm x 15m hose assembly and is supplied complete with mounting bracket and carry handle. Fitted with a positive spring latch mechanism the hose can be latched every half metre. The reel is supplied complete with a steel mounting bracket which allows the reel to pivot 270 degrees and a locking plate to be fixed into a set position if required. The corrosion and weather resistant construction makes Retracta reels the ideal choice for both indoor and outdoor use. The spring rewind mechanism is factory lubricated and sealed for trouble free operation and can be easily re-tensioned externally without removing the reel casing.



Features & Benefits

  • 10 Year limited warranty
  • Impact resistant - Maximum strength for a long service life
  • Vertical rib design - For increased strength
  • Precision machined swivels - Leak free and smooth operation
  • Screwed together - Easily repaired and maintained
  • Sealed and lubricated main spring - Virtually maintenance free service life
  • Spring latch mechanism - Allows the reel to be fitted in any orientation
  • Stainless steel mouth guard - Protects hose and reel casing against wear
  • Easy side plate removal - Easy to maintain reel without removal from installation
  • Lightweight & portable - Weighs only 10kg
  • Spare parts are available



Technical Specifications

  • Type: Water reel
  • Hose ID: 10mm
  • Length: 15m
  • Maximum working pressure: 250psi (1,700kPa)
  • Hose material: reinforced PVC
  • Reel color: Blue
  • Hose color: Yellow
  • Reel Inlet: 3/8” BSP (F)
  • Hose outlet: 1/4”BSP (M)
  • Weight: 10kg
  • Dimensions: 250mm wide / 440mm high / 598mm long (including mounting bracket)
  • Maximum Temperature 60 deg C



Package Includes

  • RETRACTA AW2150 water hose reel
  • Carry handle
  • Locking plate
  • BU100 mounting bracket and pin
  • Instruction manual



Optional Accessories



Related Products

This product was showcased in last edition's Tradesmart specials. Please contact us for latest price

.

Part Number/SKU: AW-2150

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU AW-2150
Brand Macnaught
Shipping Weight 10.0000kg
Shipping Width 0.250m
Shipping Height 0.440m
Shipping Length 0.598m
Shipping Cubic 0.065780000m3

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review
