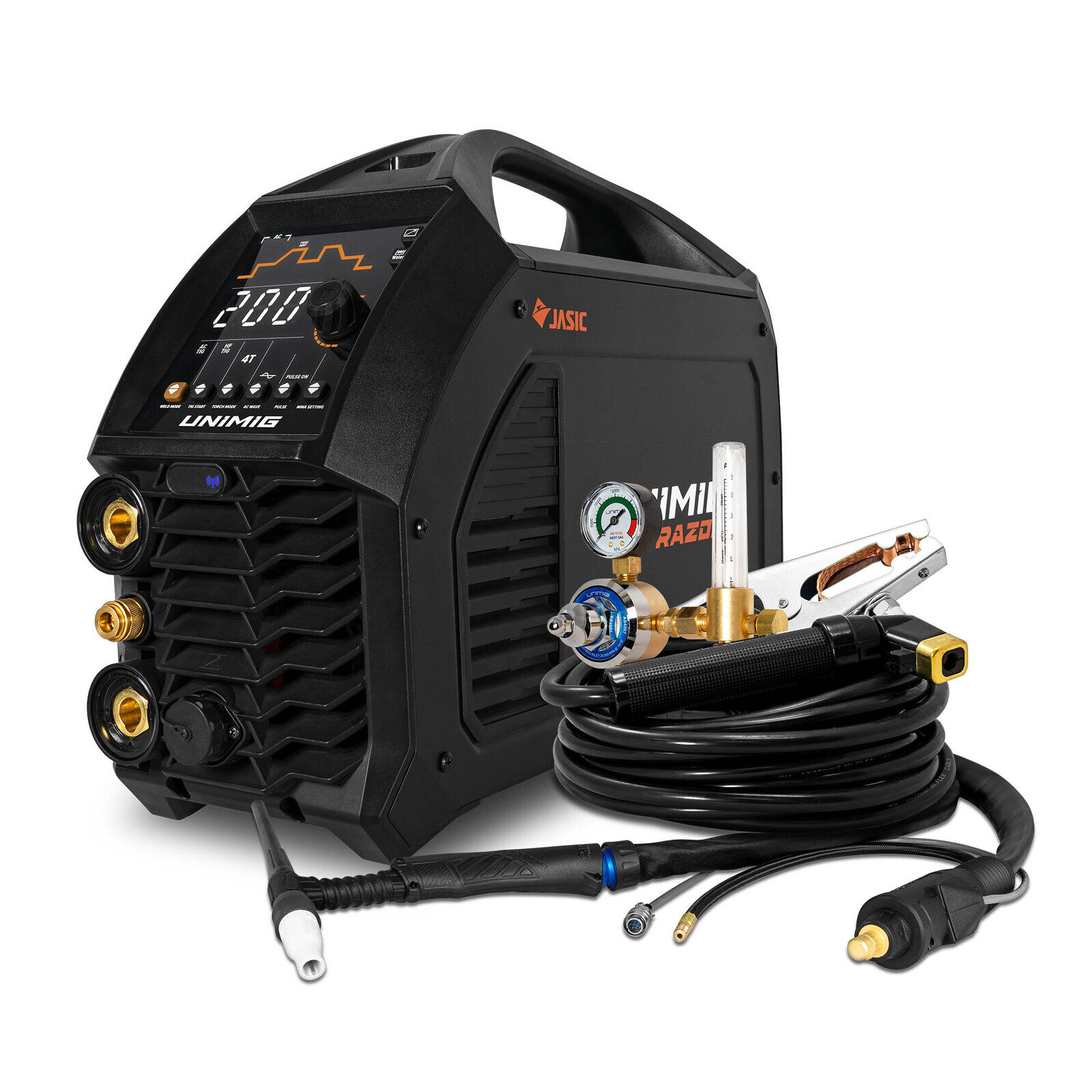

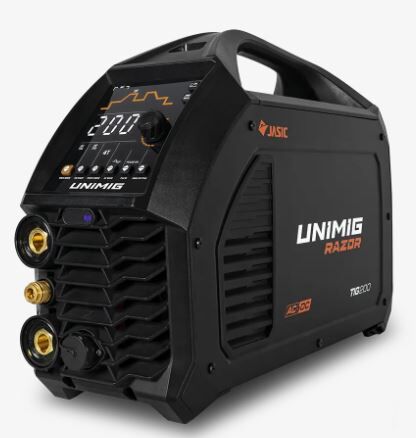

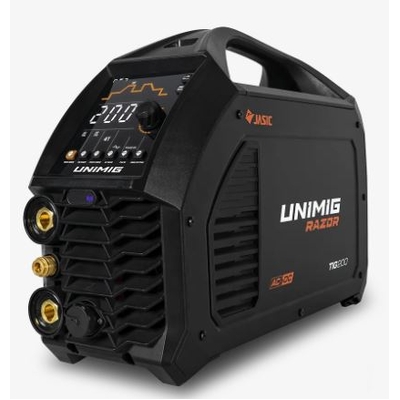

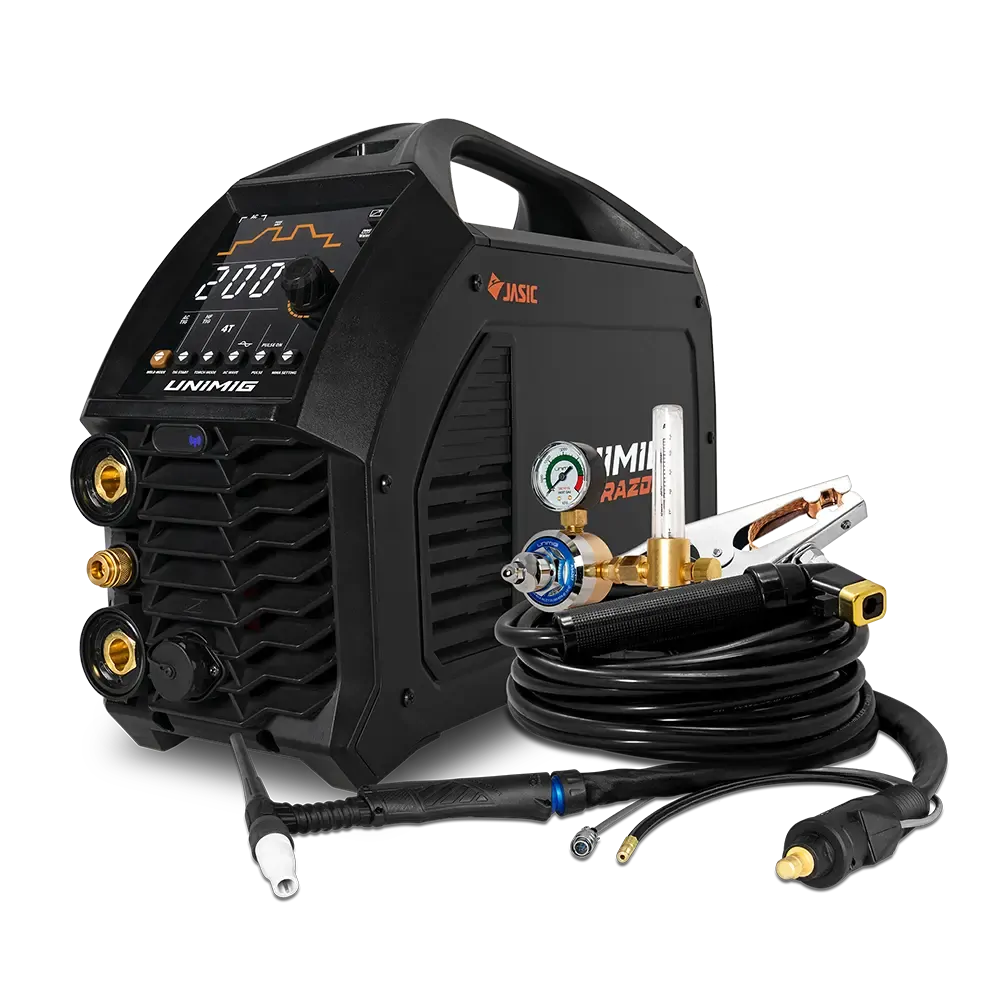

Razor TIG 200 AC/DC Welder Unimig U12002K-Special

DESCRIPTION:

Get incredible results from start to finish with this professional-grade TIG welder.

  • Effortlessly weld any metal with the high-frequency AC/DC TIG
  • The ultimate combination of AC and DC is available with Mixed Arc settings
  • Switch your AC welds to suit your needs with the choice of three waveforms

IN THE BOX:

  • RAZOR TIG 200 AC/DC Welder
  • 8m T2 TIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 300A Earth Clamp & Lead
  • Argon Flowmeter Regulator
  • 1.8m Quick-Connect Gas Hose
  • Operating Manual

FEATURES:

  • HD Backlit Interface: This next-generation interface panel is bright and easy to read in any environment.
  • Ultimate TIG Welding: Weld every kind of metal. With the ability to run on an Alternating Current (AC), you’re able to weld aluminium as effortlessly as mild and stainless steels on a Direct Current (DC).
  • Multiple AC Waveforms: Completely customise your aluminium welds. Switch between Sine, Square, and Triangle waves to change the arc characteristics, bead profile, and penetration to suit your weld.
  • Sine: The slow, smooth transition between positive and negative provides a consistent weld and good wetting in the toes
  • Square: The rapid transitions between positive and negative provide a stable arc, deep penetration, faster travel speeds, and a fast-freezing puddle
  • Triangle: The fast transitions between positive and negative and minimal heat input make it optimal for maintaining weld quality on thin or delicate materials.
  • Mixed AC/DC: Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC-TIG in one weld. With it, you get faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld on thicker materials.
  • Accessories: Ready for any kind of welding you've got planned, connect a complete range of MIG, TIG, or MMA accessories to your welder.
  • Foot Pedal: Enjoy greater control and precision with our optional foot control accessory. This handy feature allows you to easily adjust your TIG amperage on the fly, without interrupting your torch movement. Wireless and wired options are available.
  • Water Cooler: Maximise your TIG welding performance, especially at high amperages. When combined with the T3W Water-Cooled TIG Torch, which uses Bi-Flow™ Technology, you get greater performance from the TIG torch.
  • Inverter Technology: Not every inverter is made equal. With UNIMIG's ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.
  • Power Factor Correction (PFC): Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.
  • 10A Plug: Plug in and play. The 10A plug can be used on any domestic outlet, so it’s perfect for the DIY home handyman or the professional welder looking to take it anywhere.
  • Smart Fan: Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimizes the number of contaminants being pulled through the machine.
  • Active Air Passage: The active air passage works to contain the air that passes through the machine, keeping the electrical components protected from dust to improve performance and extend the life of your welder.
  • IP23S: Rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical while still.
  • Advanced MMA Features: Advanced MMA features are designed for improving weld quality and ease of use.
  • Arc Force: The Arc Force feature helps to keep the arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking.
  • Hot Start: The adjustable hot start is designed to help with striking an arc. The hot start temporarily boosts the output current at the start, making striking an arc, even with difficult electrodes, much easier. You get smoother arc starts, improving the quality of your weld.
  • Anti-Stick: The Anti-Stick feature, which is always on, prevents your electrode from sticking to your workpiece. When the machine detects sticking, the current will drop significantly, so the electrode can be removed.
  • High-Frequency TIG: Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters.
  • Lift Arc Start TIG: Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it to start the arc. This stops the tungsten tip from sticking to the workpiece and breaking off the tungsten electrode.
  • Generator Compatible: Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend an 8kVA for this machine.
  • Lightweight & Portable: Weighing just 11.7kg, the RAZOR TIG 200 AC/DC is ready to go anywhere you need it.

SPECIFICATIONS:

MACHINE SPECIFICATIONS:

Primary Input Voltage 240V Single-Phase
Ieff (A) 9.5
No Load Voltage (V) 65.0
Protection Class IP23S
Minimum Generator (kVA) 8.0
Standard AS 60974.1
Weight (kg) 11.7
Suitable Materials

TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys

MMA: Mild Steel, Stainless Steel, Cast Iron

Supply Plug 10A
IMAX (A) 21.1
No Load Voltage with VRD Active (V) 11.5
Insulation Class H
Dinse Connector 35/50
Warranty 5 Years

TIG SPECIFICATIONS:

TIG Ignition Type AC/DC High Frequency
AC/DC Lift Arc
TIG Duty Cycle @ 40°C 20% @ 200A
60% @ 115A
100% @ 90A
TIG Current Range 5-200A
TIG Welding Thickness Range 1-8mm

MMA SPECIFICATIONS:

MMA Current Range 20-160A
MMA Electrode Range 2.5-4.0mm
MMA Duty Cycle @ 40°C 15% @ 160A
60% @ 80A
100% @ 62A
MMA Welding Thickness Range 2-10mm




Part Number/SKU: U12002K-Special

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU U12002K-Special
Brand Unimig
Shipping Weight 30.0000kg
Shipping Width 0.550m
Shipping Height 0.590m
Shipping Length 0.650m
Shipping Cubic 0.210925000m3
Unit Of Measure ea
