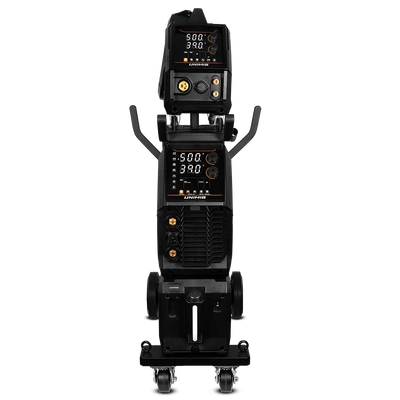

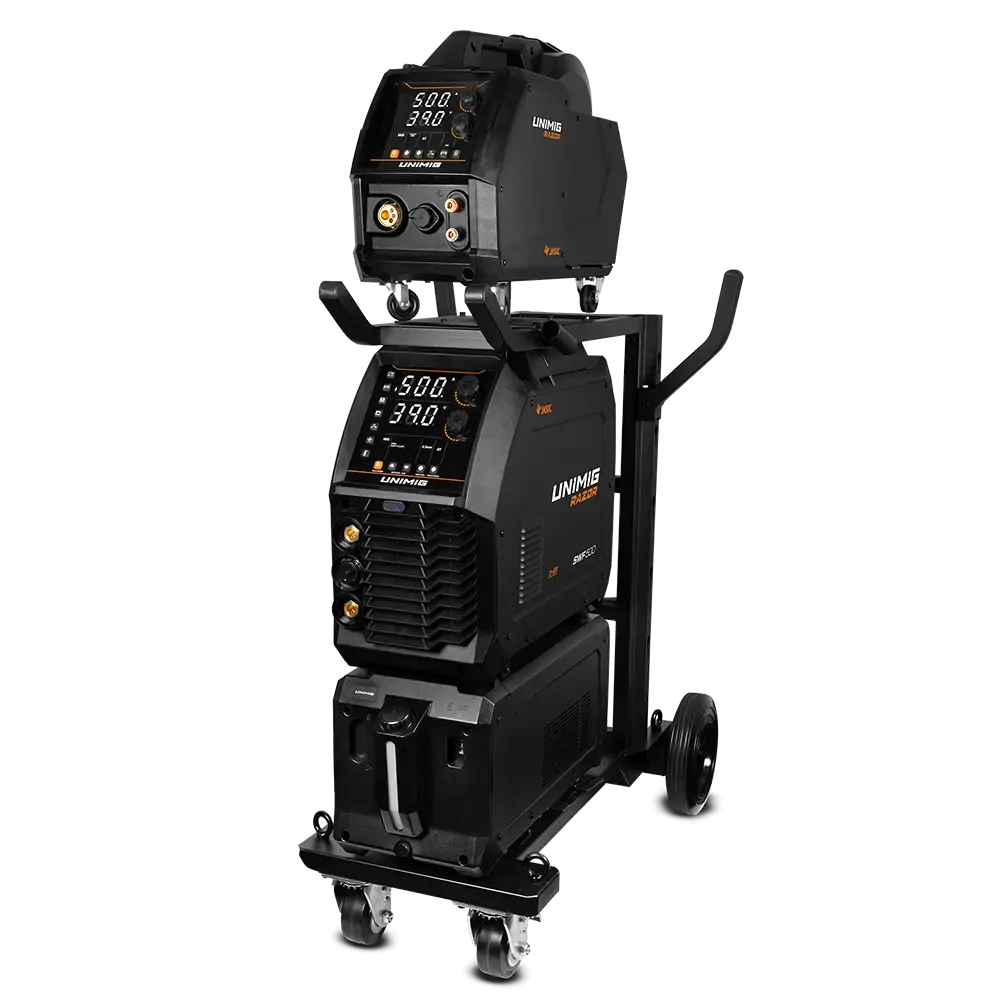

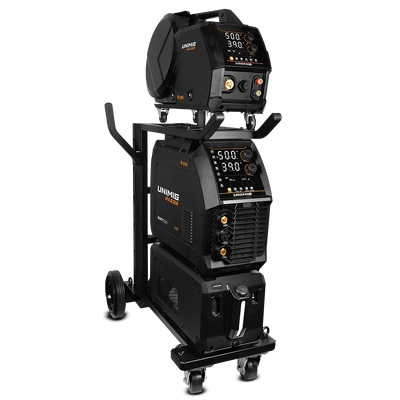

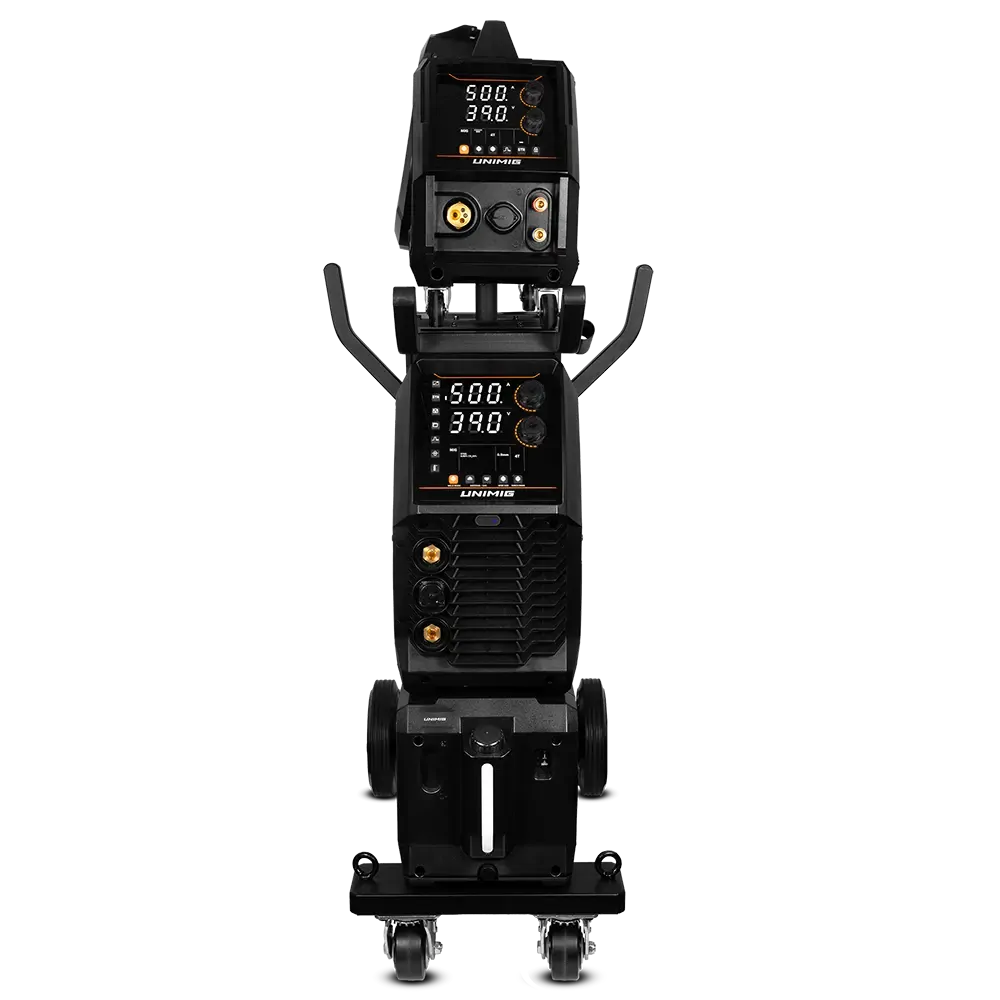

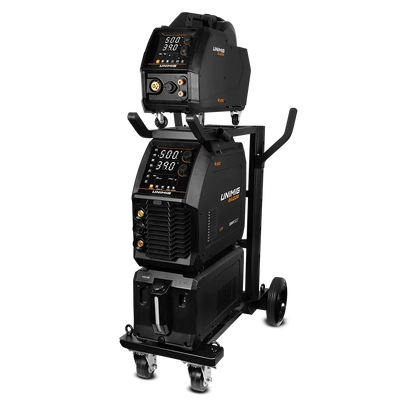

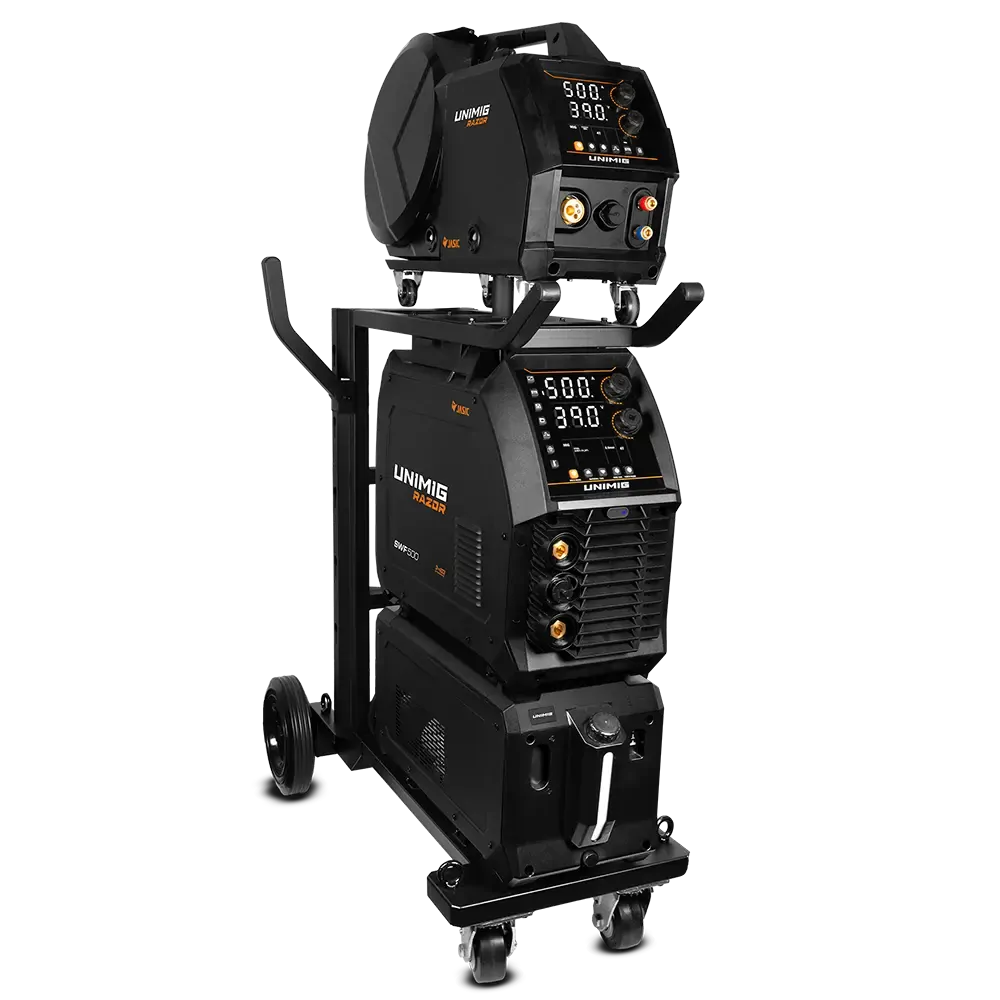

Razor SWF 500 Water-Cooled Welder Bundle Unimig PK11127

DESCRIPTION:

Superior performance even in the hardest conditions, this powerful water-cooled workshop machine delivers nothing less than top-tier weld quality.

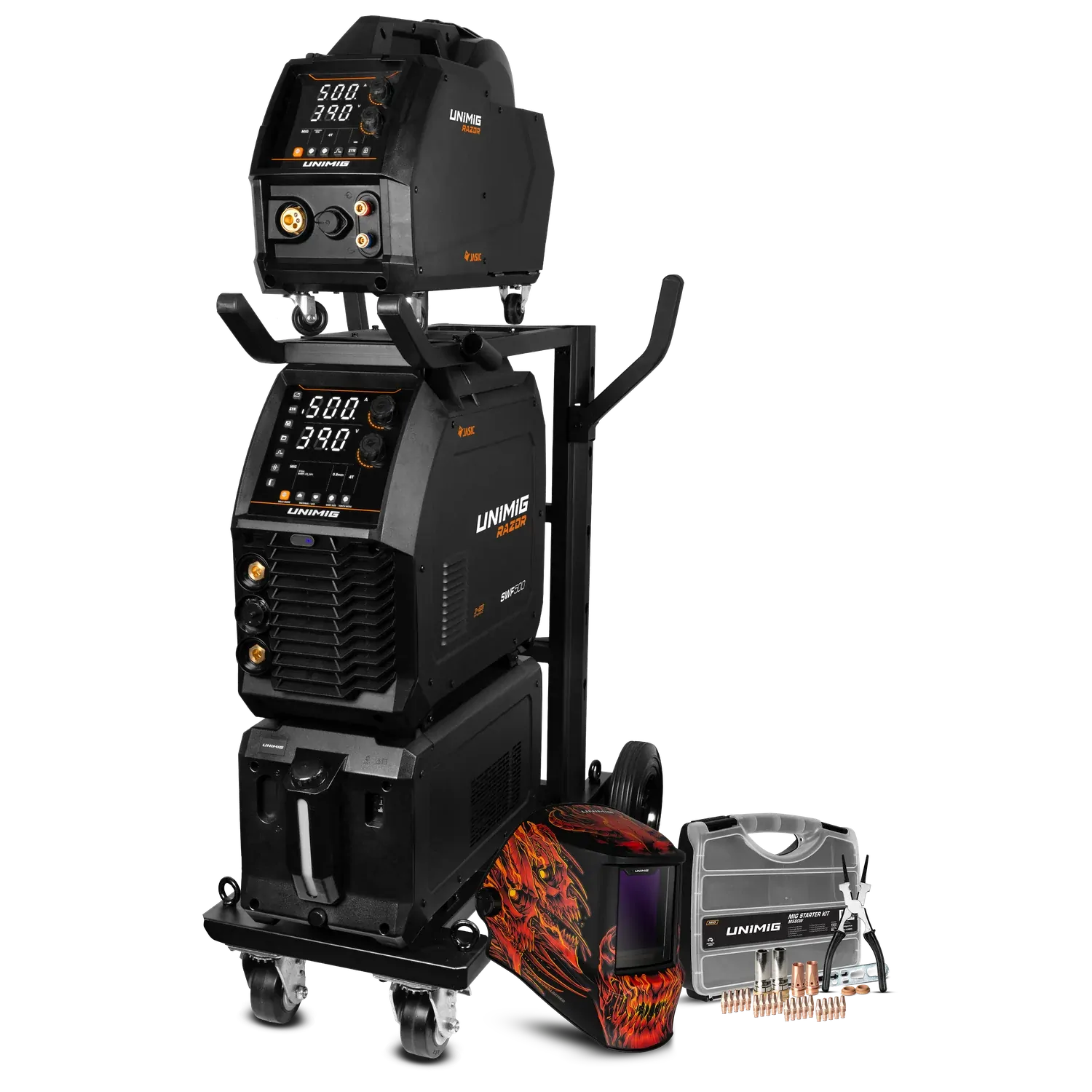

IN THE BOX:

• RAZOR SWF 500 WATER-COOLED WELDER (U11234)
• CONSUMABLE STARTER KIT SUIT M580W (U11076)
• WELDING HELMET PROFESSIONAL SERIES DEMON (U21018)

FEATURES:

• Smart-Set MIG: Getting set up for a weld has never been faster with our preset synergic programs. Simply select your wire type, wire size, gas type, and material thickness, and the machine does the rest. It'll pick the optimal settings for your weld.
• Multi-Process: Get the job done quickly and efficiently with our versatile three-in-one welding machine. With the ability to perform MIG, TIG, and MMA welding all in one unit, it's also capable of running both gas-shielded and gasless MIG wire, so you can tackle a wide variety of welding projects with ease. Whether you're working with mild steel, stainless steel, aluminium, or flux-cored wire, our machine has got you covered, saving you valuable time and effort without sacrificing quality.
• HD Backlit Control Panel: The high definition backlit screen presents your welding parameters in a clean, easy-to-follow layout. Clear numbers, simple icons and a structured interface make adjusting your settings fast, intuitive and effortless.
• 4 Geared Wire Feed System: Built for stability and control. The four geared mechanism increases drive force and keeps wire delivery steady, even when you are using extended torch lengths.
• Digital Display MIG Torch: Adjust your weld settings directly from the torch with instant visual feedback. The built-in display shows your amperage, voltage and arc length in real time, so you can fine-tune your weld without looking away from the workpiece. This keeps full control in your hand and makes on-the-fly adjustments fast and precise.
• Accessories: Ready for any kind of welding you've got planned, connect a complete range of MIG, TIG, or MMA accessories to your welder.
• Spool Gun: Make welding aluminium even easier. No need to change your existing setup. The spool gun lets you quickly switch over and get any job done with no downtime.
• Push-Pull Gun: Achieve smooth and steady wire feeding, especially when using softer wires such as aluminium. With a pull motor built into the torxh, the wire can be fed over a greater distance, granting you the freedom to move and manoeuvre with ease while MIG welding.
• TIG Torch: The trigger-controlled DC lift arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip from sticking to the workpiece and breaking the tip form the tungsten electrode.
• Advanced IGBT Inverter Technology: Our IGBT inverter platform delivers higher efficiency, stronger arc stability and more consistent power delivery. It runs cooler, responds faster to changes in arc demand and provides the reliability needed for modern welding applications.
• Smart Fan Technology: The fan runs only when needed, reducing noise, cutting power use and limiting the dust drawn into the machine. This keeps internal components cleaner and helps extend the overall life of the unit.
• IP23S Protection Rating: Rated IP23S for reliable performance in demanding welding environments. Built to handle tougher conditions and maintain dependable operation where durability matters.
• Advanced MMA Features: Advanced MMA features are designed for improving weld quality and ease of use.
• Arc Force: The arc force feature helps to keep teh arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking.
• Anti-Stick: The anti-stick feature, which is always on, prevents your electrode from sticking to your workpiece. When the machine detects sticking, the current will drop significantly, so the electrode can be removed.
• Separate Wire Feeder: Get the ultimate flexibility. The audition of a separate wire feeder means you can detach the wire feeder from the main power source, giving you an extra 10m of manoeuvrability.
• Job Memory: The job memory function allows you to enter and store weld parameter settings. Weld parameters can be further adjusted and stored as required. A total of 10 jobs can be memorised and stored for recall.
• Large Wire Spool Capacity: Fits both D200 and D300 wire spools, so you can put 15kg mild steel or 7kg aluminium spools in the machine.
• Generator Compatible: Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 40kVA for this machine.

SPECIFICATIONS:

MACHINE SPECIFICATIONS:

MIG SPECIFICATIONS:

TIG SPECIFICATIONS:

MMA SPECIFICATIONS:

Part Number/SKU: PK11127

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
