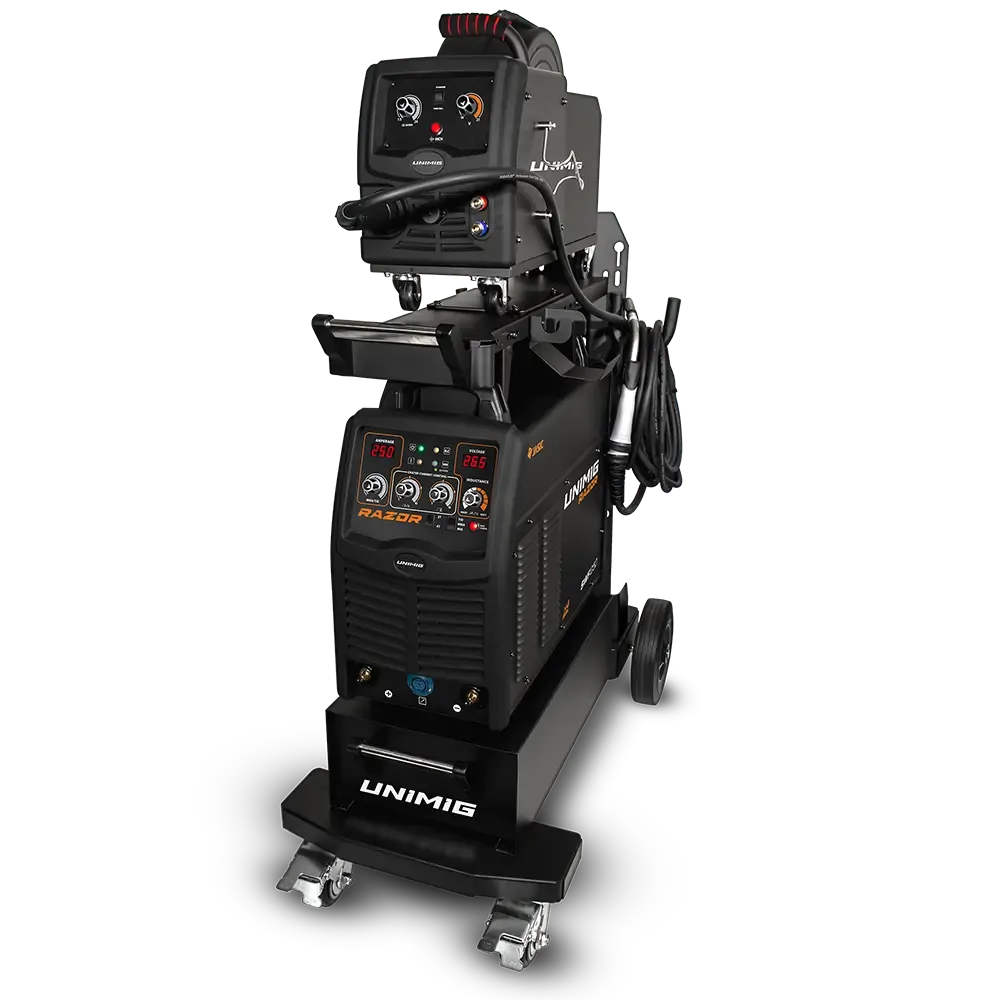

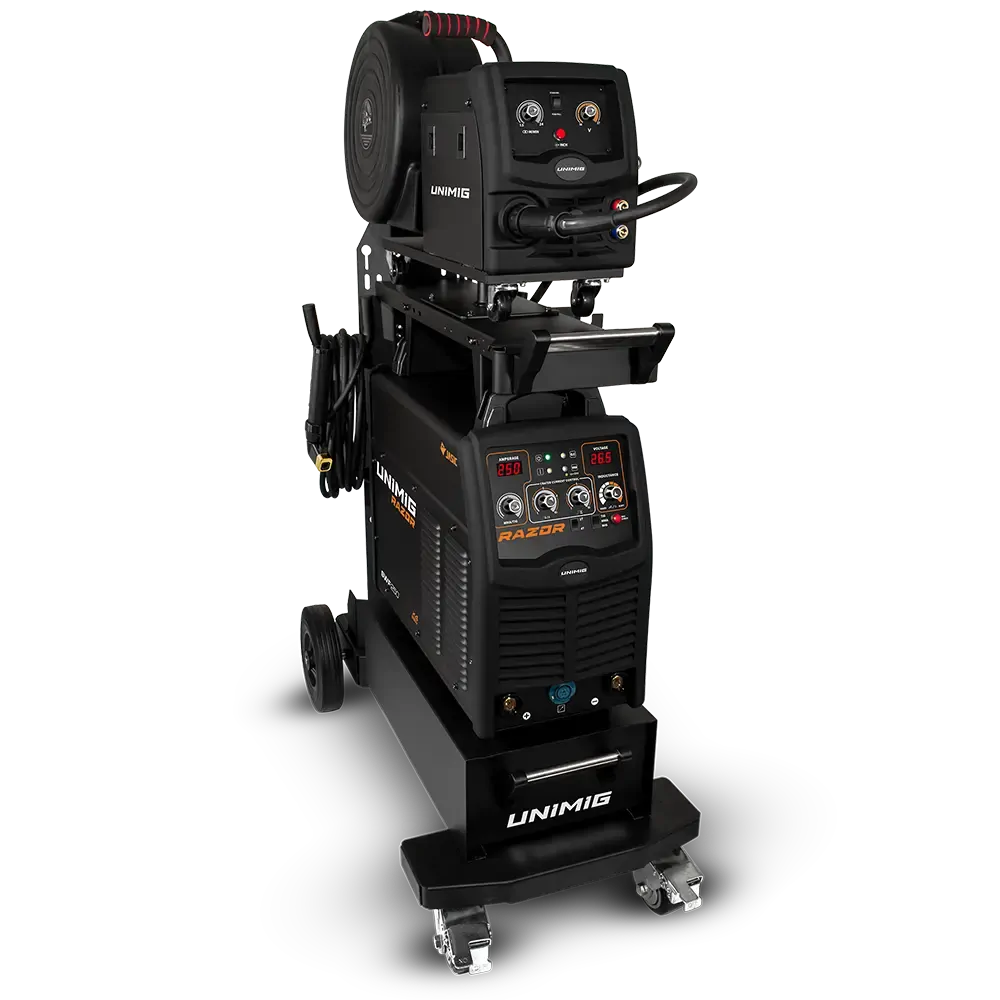

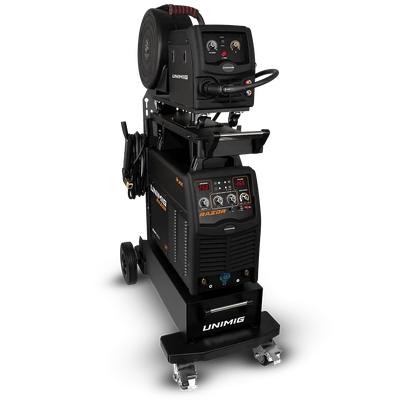

Razor SWF 250 Welder Unimig KUMJR250SWF

DESCRIPTION:

Exceptional performance even in the harshest conditions. This powerful workshop machine offers only the highest quality welds.

IN THE BOX:

  • RAZOR SWF 250 Welder
  • Separate Wire Feeder Unit
  • 10m Interconnecting Cables
  • 4m M24 MIG Torch
  • 10m Twist Lock Electrode Holder
  • 10m 300A Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • Operating Manual
  • 2x 1.0-1.2mm V Groove Roller

FEATURES:

Multi-Process: Get the job done quickly and efficiently with our versatile three-in-one welding machine. With the ability to perform MIG, TIG, and MMA welding all in one unit, it's also capable of running both gas-shielded and gasless MIG wire, so you can tackle a wide variety of welding projects with ease. Whether you're working with mild steel, stainless steel, aluminium, or flux-cored wire, our machine has got you covered, saving you valuable time and effort without sacrificing quality.

Inverter Technology: Not every inverter is made equal. With UNIMIG's ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.

Accessories: Ready for any kind of welding you've got planned, connect a complete range of MIG, TIG, or MMA accessories to your welder.

Spool Gun: Make welding aluminium even easier. No need to change your existing setup. The spool gun lets you quickly switch over and get any job done with no downtime.

Push-Pull Gun: Achieve smooth and steady wire feeding, especially when using softer wires such as aluminium. With a 'Pull' motor built into the torch, the wire can be fed over a greater distance, granting you the freedom to move and manoeuvre with ease while MIG welding.

Inductance Control: Take complete control of your arc with the inductance settings. By changing the frequency of your short-circuit MIG welds with the Inductance controls, you can choose your preferred arc characteristics on every weld.

Crater Current Control: End your welds as strong as they started. The Crater Current Control ramps your welding current and voltage down at the end of a weld, filling it in at a lower amperage, eliminating craters and pinholes.

4 Geared Wire Drive: The most consistent and smoothest wire-feeding experience there is. With a four-gear wire drive unit, there’s more power pushing the wire, improving the wire-feeding, especially in longer torches.

Separate Wire Feeder: Get the ultimate flexibility. The addition of a separate wire feeder means you can detach the wire feeder from the main power source, giving you an extra 10m of manoeuvrability.

SPECIFICATIONS:

MACHINE SPECIFICATIONS:

Primary Input Voltage 240V Single-Phase
Ieff (A) 26.6
No Load Voltage (V) 56.5
Insulation Class H
Dinse Connector 35/50
Warranty 3 Years
Dimensions (LxWxH) 630 x 280 x 860mm
Supply Plug Unplugged (32A Recommended)
Imax (A) 45.0
Protection Class IP21
Minimum Generator (kVA) 13.0
Standard AS 60974.1
Weight (kg) 54.60
Suitable Materials MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
MMA: Mild Steel, Stainless Steel, Cast Iron
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze

MIG SPECIFICATIONS:

MIG Current Range 30-250A
MIG Wire Sizes 0.6-1.2mm
MIG Welding Thickness Range 1-12mm
MIG Duty Cycle @ 40°C 35% @ 250A
100% @ 137A
MIG Wire Spool Sizes 5kg (D200)
15kg (D300)
Drive Roller Size 30/22

TIG SPECIFICATIONS:

TIG Ignition Type DC Lift Arc
TIG Duty Cycle @ 40°C 35% @ 225A
100% @ 133A
TIG Current Range 10-225A
TIG Welding Thickness Range 1-10mm

MMA SPECIFICATIONS:

MMA Current Range 10-250A
MMA Electrode Range 2.5-4.0mm
MMA Duty Cycle @ 40°C 35% @ 250A
100% @ 137A
MMA Welding Thickness Range 2-12mm




Part Number/SKU: KUMJR250SWF

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU KUMJR250SWF
Brand Unimig
Shipping Weight 44.9999kg
Shipping Width 0.950m
Shipping Height 1.600m
Shipping Length 0.130m
Shipping Cubic 0.197600000m3
Unit Of Measure ea
