Razor Multi 200 Pulse Bundle Unimig PK11115

DESCRIPTION:

The latest innovation in pulse MIG, this machine comes filled with revolutionary technology.

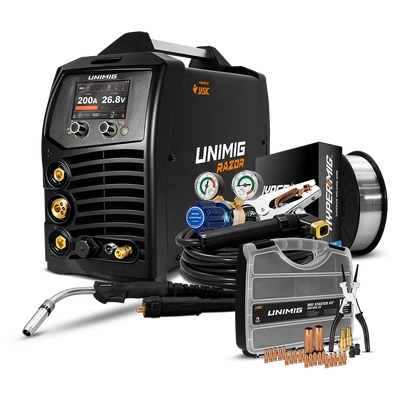

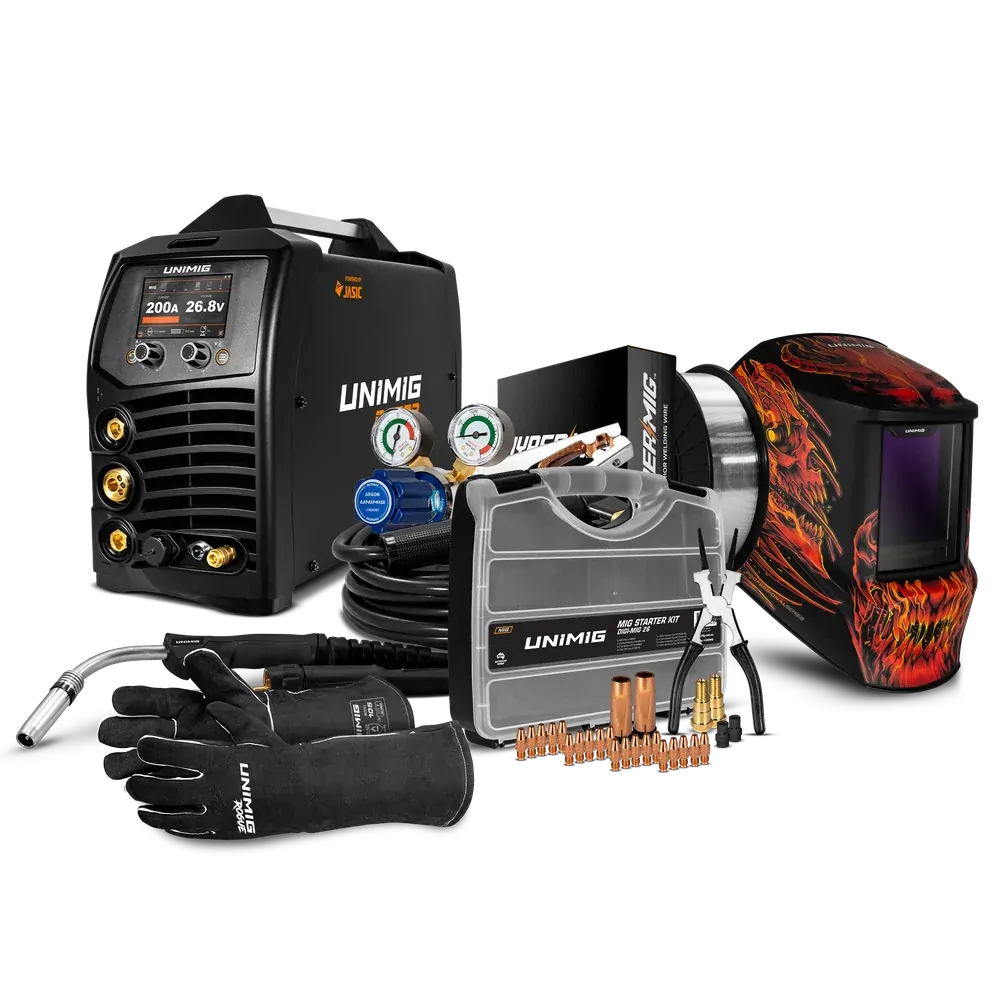

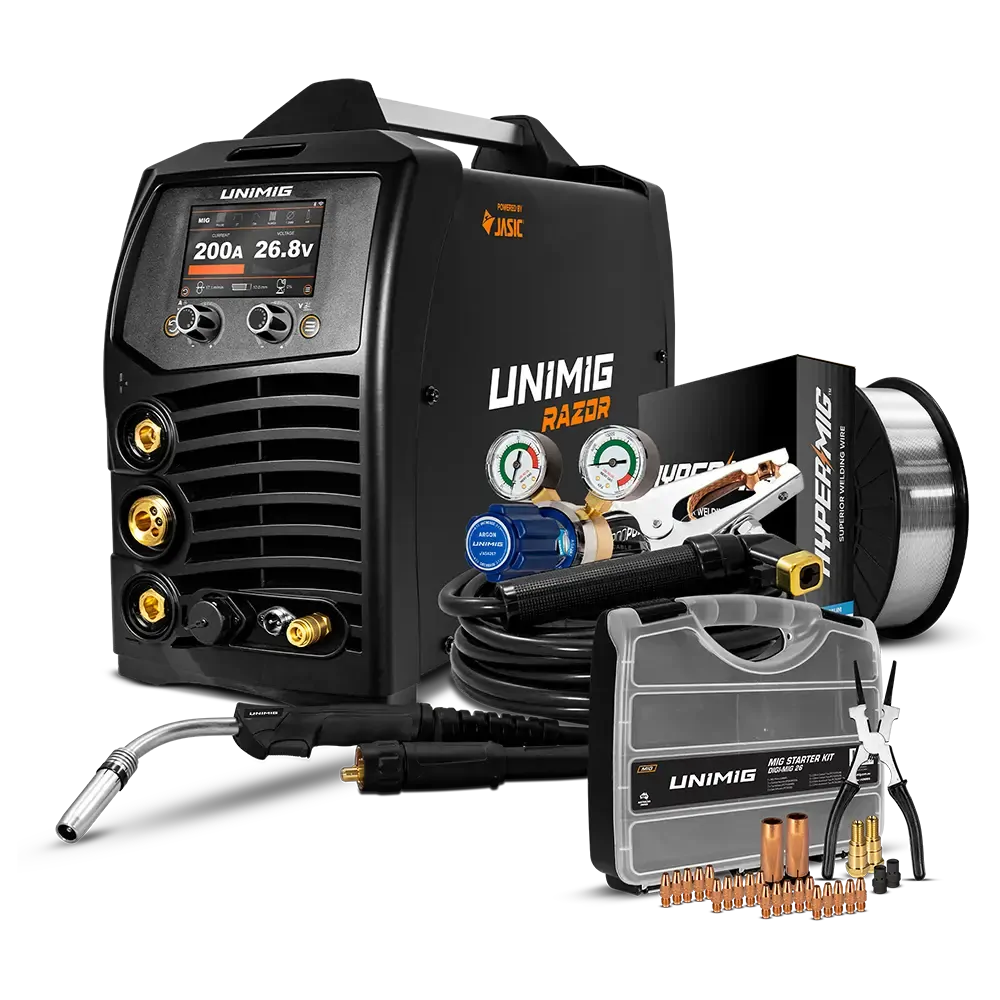

IN THE BOX:

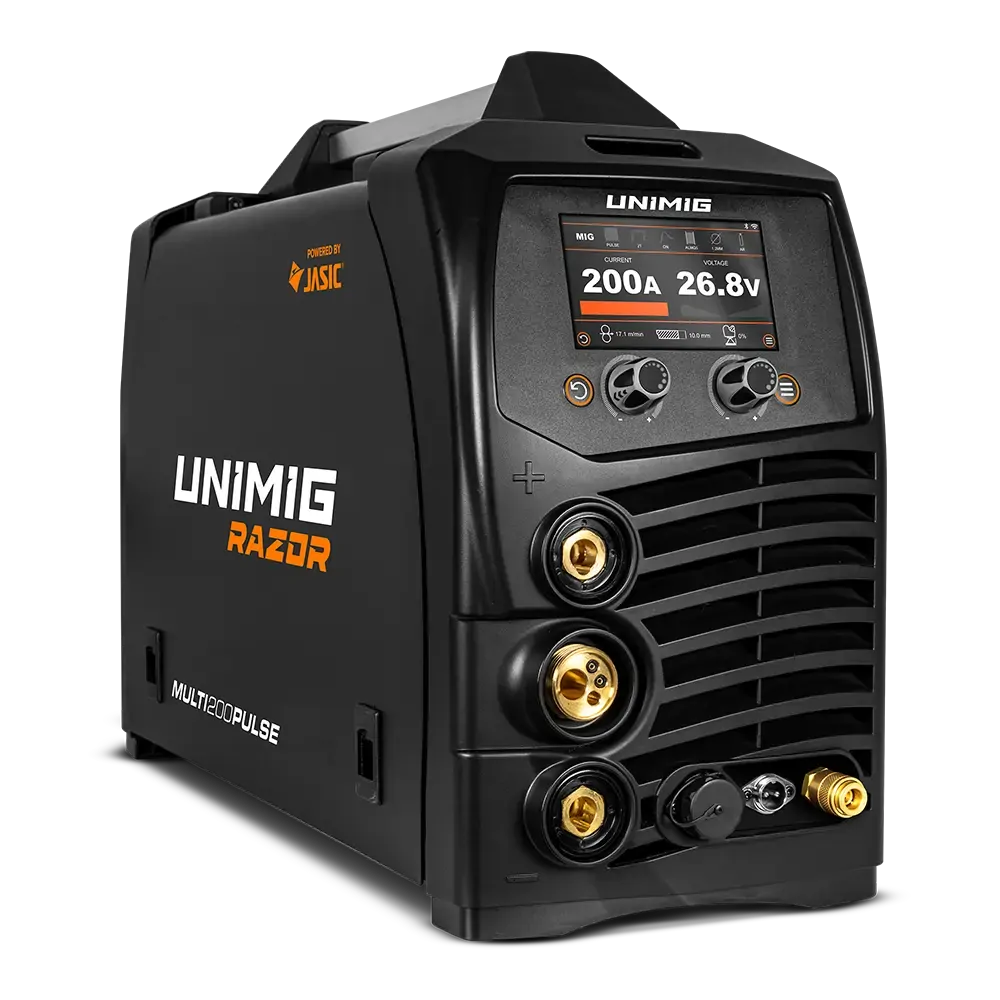

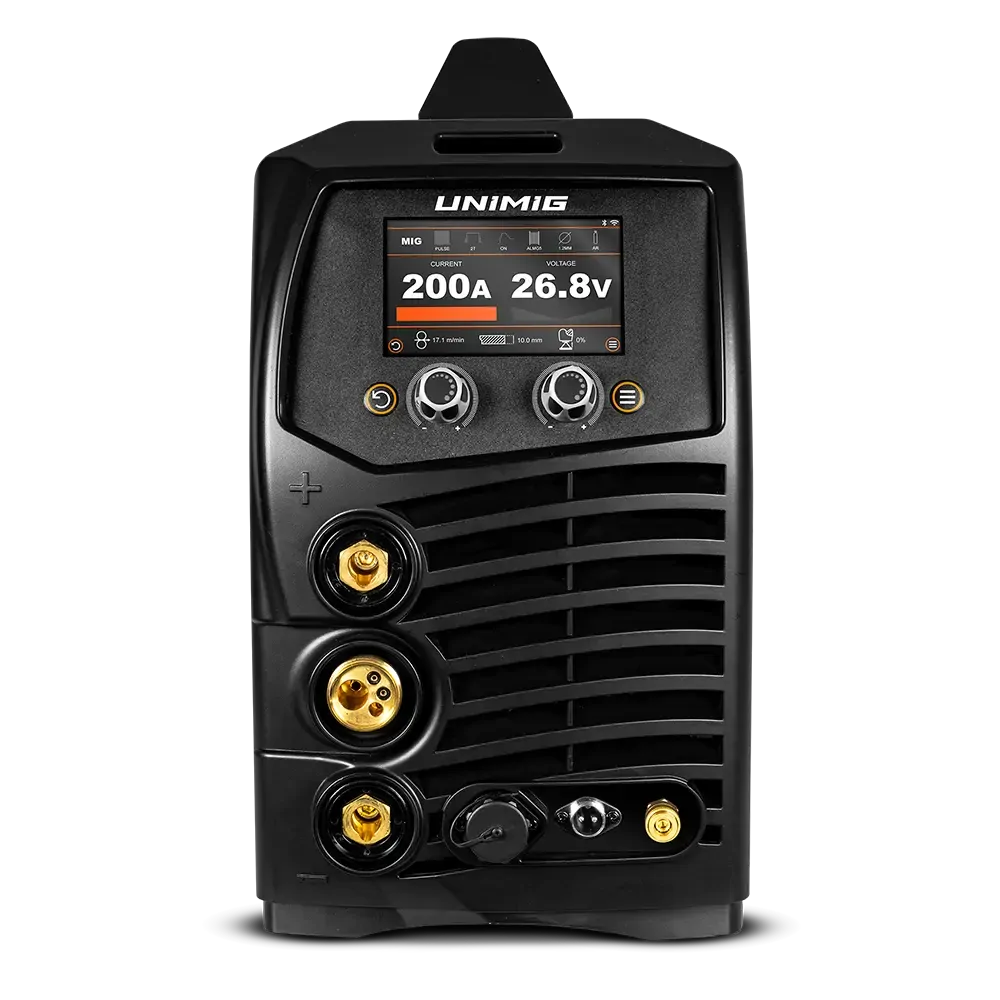

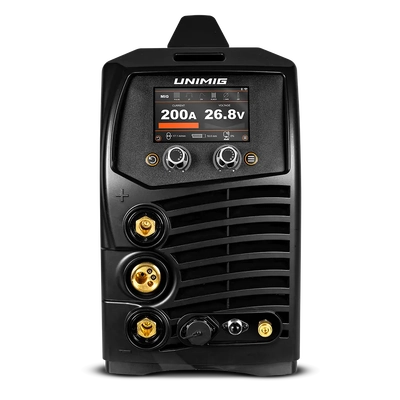

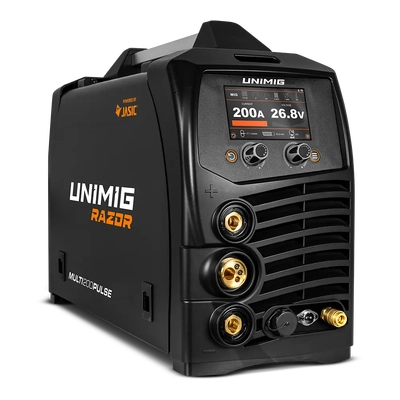

• RAZOR MULTI 200 PULSE Welder (U11003K)
• Welding Helmet Professional Series - Demon (U21018)
• MIG Welding Gloves (UMWG8)

FEATURES:

• Not All Pulse Machines Are Equal: Less spatter. Lower heat. Smoother results. Streamline your welds with the single and double pulse functions.
• Single Pulse: A single pulse weld alternates between a peak and base current, which works to minimise the amount of heat input without compromising on any of the penetration. The addition of a base current and reduction in heat means it's perfect for softer materials like aluminium. Pulse welding is also done by spray transfer, eliminating spatter and cutting your post-weld clean-up time.
• Double Pulse: A double pulse weld alternates between a peak current and two base currents, reducing the heat input of the weld even further than a single pulse, while still maintaining all of the benefits. Because of the faster freezing puddle, your double pulse welds come out looking just like a stack of dimes. You get the aesthetics of a TIG weld with all the speed of spray MIG.
• 100+ Smart-Set MIG Programs: Getting set up for a weld has never been faster with over 100 synergic programs. Simply select your metal type, wire size, gas type and material thickness, and the machine does the rest. It'll pick the optimal settings for your weld.
• Hot Start: Get the smoothest arc start possible. The Hot Start function gives a boost of current at the beginning of your weld, eliminating any issues with starting on cold metal, letting you weld on thicker materials and making welding aluminium even easier.
• Crater Fill: End your welds as strong as they started. Crater Fill ramps your welding current and voltage down at the end of a weld, filling it in at a lower amperage, eliminating craters and pinholes.
• Digital Control Torch: Our digital MIG torch lets you adjust settings on the fly. Change the amps, current and voltage at the touch of a torch button.
• High-Frequency TIG Start: Strike the arc without touching the tungsten to the workpiece. High-frequency ignition protects the tungsten from contamination, improves arc stability and gives you access to the full TIG cycle, including pre gas, post gas and controlled slope settings.
• Power Factor Correction (PFC): Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.
• Advanced IGBT Inverter Technology: Our IGBT inverter platform delivers higher efficiency, stronger arc stability and more consistent power delivery. It runs cooler, responds faster to changes in arc demand and provides the reliability needed for modern welding applications.
• 4 Geared Wire Feed System: Built for stability and control. The four geared mechanism increases drive force and keeps wire delivery steady, even when you are using extended torch lengths.
• Accessories: Ready for any kind of welding you've got planned, connect a complete range of MIG, TIG or MMA accessories to your welder.
• Spool Gun: Make welding aluminium even easier. No need to change your existing setup. The spool gun lets you quickly switch over and get any job done with no downtime.
• Push-Pull Gun: Achieve smooth and steady wire feeding, especially when using softer wires such as aluminium. With a 'Pull' motor built into the torch, the wire can be fed over a greater distance, granting you the freedom to move and manoeuvre with ease while MIG welding.
• TIG Torch: As a multi-process welder, you can switch to high-frequency DC TIG with the click of a button. With high-frequency TIG, you get ultimate customisation of the weld cycle and complete control over every arc characteristic.
• Foot Pedal: As a multi-process welder, you can switch to high-frequency DC TIG with the click of a button. With high-frequency TIG, you get ultimate customisation of the weld cycle and complete control over every arc characteristic.
• Advance MMA Features: Advanced MMA features are designed for improving weld quality and ease of use.
• Arc Force: The Arc Force feature helps to keep the arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking.
• Hot Start: The adjustable hot start is designed to help with striking an arc. The hot start temporarily boosts the output current at the start, making striking an arc, even with difficult electrodes, much easier. You get smoother arc starts, improving the quality of your weld.
• Anti-Stick: The Anti-Stick feature, which is always on, prevents your electrode from sticking to your workpiece. When the machine detects sticking, the current will drop significantly, so the electrode can be removed.
• Job Memory: Save all of your favourite settings with the Job Memory feature. With up to 100 saves available, you’ll never need to memorise your parameters again. Plus, seamlessly switch between different jobs with the touch of a button.
• Generator Compatible: Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 10kVA for this machine.
• Inductance Control: Take complete control of your arc with the inductance settings. By changing the frequency of your short circuit MIG welds with the Inductance controls, you can choose your preferred arc characteristics on every weld.
• Burnback Adjustment: Stop your wire from ever fusing with your weld or your contact tips again. Tune your burnback control to suit how much wire you want to remain sticking out from your torch when you finish a weld.

SPECIFICATIONS:

MACHINE SPECIFICATIONS:

MIG SPECIFICATIONS:

TIG SPECIFICATIONS:

MMA SPECIFICATIONS:

Part Number/SKU: PK11115

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
