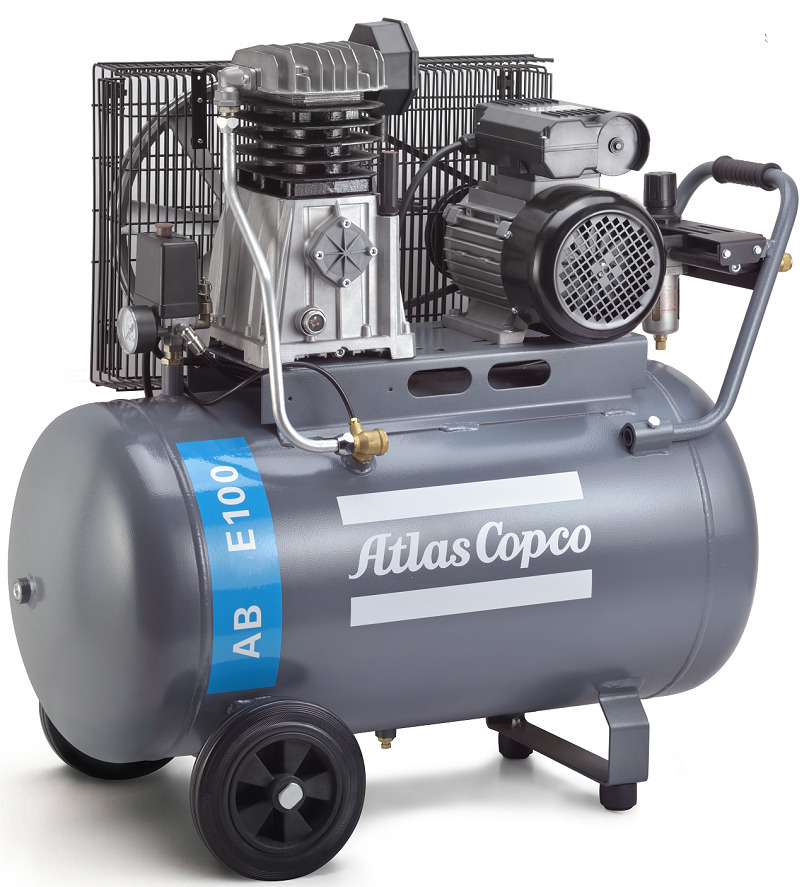

Single Phase Compressor Professional Piston FAD 175L/m 2.5hp 100 Litre Tank AB25E100


Part number: 1129740255
Model name: AB25E100
Power: 2.5hp / 1.85kW (240/1/50)
Max Pressure: 10 bar / 145 psi
Tank Volume: 100 l  (AS1210 Approved Tank)
Pump Displacement: 257 l/min
TRUE Free Air Delivery @ 7 bar: 172 l/min / 6 cfm (Tested as per ACACA Protocol™ 2000  -Australian Commercial Air Compressor Association)
Current Draw: 10 Amp
Noise: 73 db
Cylinders/Stages:  2 / 1
Motor Speed: 2850 rpm
Oil:  0.5 l
Dimension (LxWxH) / weight (machine): 920mm x 510mm x 830mm / 81 kg
Filter Regulator Yes
Gauge Yes Yes
Feet 2W + Legs (Rubber)

Alternative SKU: AB25E100

Part Number/SKU: 1129740255
