Powertec®-i500S MIG/MAG/MMA Welder Lincoln K14185-1

POWERTEC®-i S RANGE is a brand new range of Lincoln Electric products based on the latest inverter platform,
combining modularity, ease of use and optimal MIG/MAG or MMA welding performance with excellent power
cost efficiency.
Three power sources: i350S, i420S and i500S with a choice of separate wire feeders, standard LF52D
for basic use, or the advanced LF56D for more demanding applications, helps customer to fulfill
every possible welding needs.
All POWERTEC®-i S have the option of water cooling by simply adding the new COOLARC® 26

APPLICATION

Processes	Welding Of
GMAW	Steel
FCAW-G	Stainless Steel
FCAW-S	Low Alloy Steel
SMAW	Aluminium

Powersouce Includes

Input cable (5m)
Work clamp and cable assembly (3m)
Gas hose (2m)
Chain
USB with Operator’s Manual

Package Includes

• K14187-1 - LF-56D Wire Feeder
• K14198-PG-10M - Cable Pack 5 Pin G 70mm² 10M
• KA36040 - Powercraft 360G 4M
• LE2520-RG002- Regulator Argon

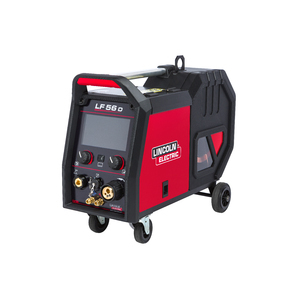

LF 56D Digital Wire Feeders

Top Features

• Small rugged and easy to handle feeder with bright digital meters
• Digital communication protocol for welding, making it the best choice for seamless, time critical integration with the power source

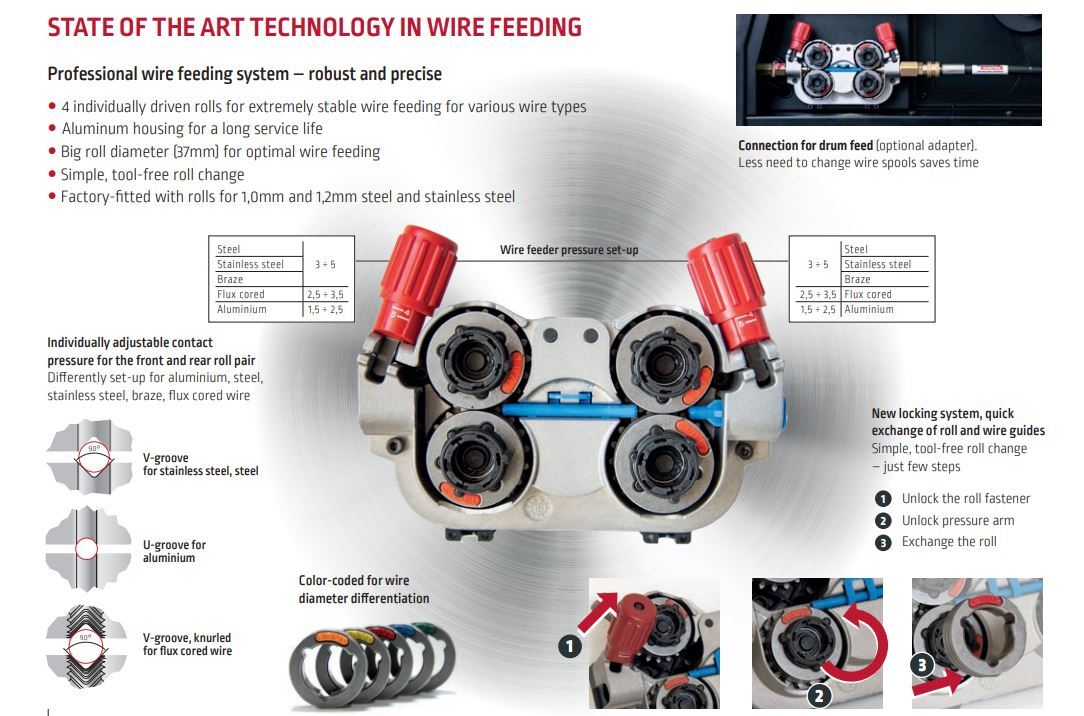

• Perfect feedability, 4 roll drive system with powerful motor
• Easy-to-understand user interface panels make it easy to set weld parameters
• Optimized wire spool installation, inspection window and lifting eye.
• Cored Wire size Range - 1.0-1.6mm
• Wire speed range IPM (M/Min) - 1-22 m/min

K14198-PG-10M
Top Features

• Air cooled
• For use with Powertec i-S range

Part Number/SKU: K14185-1P

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
