Pelican Spacecase

Pelican Spacecase Moulded from UV stabilised food-grade polyethylene plastic
Modular, stackable and interlocking design
High strength rugged case – will not rust or dent
Dust, oil, chemical and water resistant
Large range of sizes
Made military tough
Proudly Designed and Manufactured in Australia

Pelican Spacecase has 3 year warranty

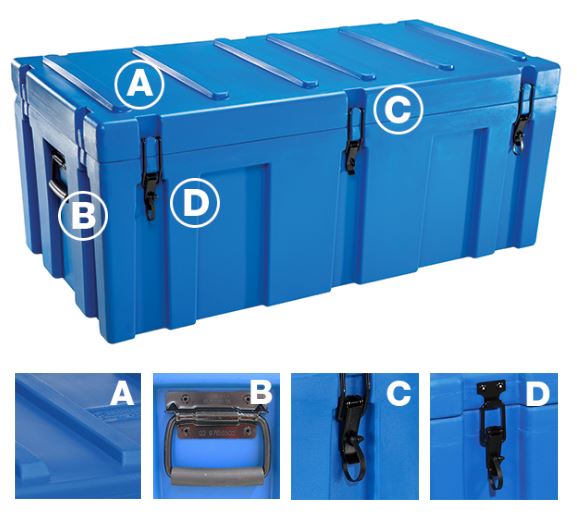

A Interlocking Male/Female Ribs for secure non-slip stacking on matched size cases
B Comfortable Rubber Grip Handles
C Recessed hardware protected from impact, snag-free exterior
D Zinc Plated and E-coated Hardware - Stainless Steel hardware is also available

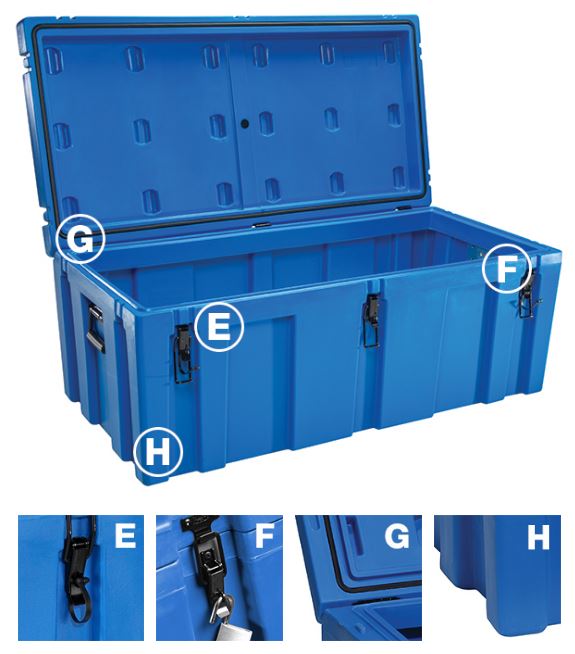

E Keeper Pin prevents opening under vibration
F Over Centre Padlockable Lock to keep the inside cargo secure
Pelican Spacecase is G Weather Resistant Sealing System. EPDM hollow sponge seal in lid prevents moisture ingress. Moulded tongue-in-groove parting line maintains original configuration after impact
H Reinforced Corners and Edges. 15-20% thicker corners and edges for added impact protection





General Range

These cases only interlock with cases of the same footprint (i.e. external length and width)
L20 – Refers to the external lid height = 200mm
L50 – Refers to the external lid height = 500mm

Product Code	External L x W x H (mm)	Opening L x W (mm)	Internal L x W x H (mm)	Weight (kg)
BG030030020	300mm x 300 x 200	225 x 225	250 x 250 x 155	2.5
BG030030030	300mm x 300 x 300	225 x 225	250 x 250 x 250	3.3
BG035034034	350mm x 340 x 340	300 x 300	320 x 320 x 300	3.5
BG042033018	420mm x 330 x 180	350 x 255	340 x 290 x 150	3.1
BG046038015	460mm x 380 x 150	395 x 305	420 x 335 x 105	3.3
BG050045021	500mm x 450 x 210	420 x 375	450 x 400 x 165	5
BG050045031	500mm x 450 x 310	425 x 375	450 x 400 x 265	5.5
BG057032032	570mm x 320 x 320	490 x 225	510 x 265 x 290	4
BG070055037	700mm x 550 x 370	580 x 435	630 x 480 x 315	9
BG078038038	780mm x 380 x 380	700 x 290	720 x 330 x 310	6
BG084031018	840mm x 310 x 180	775 x 255	765 x 255 x 150	5.2
BG084044018	840mm x 440 x 180	780 x 375	765 x 375 x 125	6.75
BG084044067	840mm x 440 x 675	775 x 375	765 x 375 x 620	13
BG084044080	840mm x 440 x 800	765 x 375	765 x 375 x 770	13.5
BG090040040	900mm x 400 x 400	795 x 295	800 x 305 x 325	12.5
BG090055040	900mm x 550 x 400	755 x 405	850 x 490 x 325	12.5
BG090062055	900mm x 620 x 550	825 x 520	860 x 570 x 500	18
BG110110050L20	1100mm x 1100 x 500	940 x 940	1040 x 1040 x 350	35
BG110110080L20	1100mm x 1100 x 800	940 x 940	1040 x 1040 x 700	45
BG110110080L50	1100mm x 1100 x 800	940 x 940	1040 x 1040 x 645	45
BG110110110	1100mm x 1100 x 1100	940 x 940	1035 x 1035 x 940	55
BG120055040	1200mm x 550 x 380	1100 x 440	1150 x 460 x 300	15
BG124028040	1240mm x 280 x 400	1165 x 180	1230 x 225 x 300	13
BG140032032	1400mm x 320 x 320	1310 x 230	1310 x 240 x 235	13
BG165110045	1650mm x 1100 x 450	1500 x 940	1565 x 1020 x 380	60
BG180074094	1800mm x 740 x 940	1635 x 585	1730 x 680 x 750	55.5
BG215032032	2150mm x 320 x 320	2065 x 235	2065 x 235 x 230	19

Modular 550/1100 Range

All cases in this range interlock and crosstack with other cases within this series for safe and secure palletisation.
Designed to suit ISO standard pallets, racks and shipping containers.
**optional tray kits are available for all 550 series cases.
L08 – Refers to the external lid height = 80mm      L30 – Refers to the external lid height = 300mm

Product Code	External L x W x H (mm)	Opening L x W (mm)	Internal L x W x H (mm)	Weight (kg)
BG055055025L08	550mm x 550 x 225	470 x 440	490 x 490 x 175	6.8
BG055055031L08	550mm x 550 x 310	470 x 440	490 x 490 x 255	7.8
BG055055045L08	550mm x 550 x 450	470 x 440	490 x 490 x 405	8
BG055055055L30	550mm x 550 x 550	470 x 440	490 x 490 x 550	9
BG055055067L08	550mm x 550 x 675	470 x 440	480 x 480 x 630	10.5
BG055055067L30	550mm x 550 x 675	470 x 440	490 x 490 x 640	11
BG055055080L08	550mm x 550 x 800	470 x 440	480 x 480 x 745	13
BG055055102L30	550mm x 550 x 1020	470 x 440	480 x 480 x 990	15
BG110055025L08	1100mm x 550 x 225	1020 x 440	1045 x 495 x 170	12
BG110055031L08	1100mm x 550 x 310	1020 x 440	1045 x 495 x 260	14.5
BG110055045L08	1100mm x 550 x 450	1020 x 440	1035 x 480 x 395	16
BG110055055L30	1100mm x 550 x 550	1020 x 440	1045 x 480 x 505	18
BG110055067L08	1100mm x 550 x 675	1020 x 440	1025 x 475 x 630	21
BG110055067L30	1100mm x 550 x 675	1020 x 440	1025 x 475 x 650	21
BG110055080L08	1100mm x 550 x 800	1020 x 440	1025 x 475 x 750	22
BG110055102L30	1100mm x 550 x 1020	1020 x 440	1020 x 470 x 982	24
BG110090045	1100mm x 900 x 450	1000 x 800	1045 x 850 x 360	30
BG165055045	1650mm x 550 x 450	1555 x 455	1575 x 480 x 385	23.5
BG165055067	1650mm x 550 x 675	1560 x 440	1580 x 480 x 570	0
BG220055045	2200mm x 550 x 450	2110 x 440	2140 x 490 x 385	35
BG220055067	2200mm x 550 x 675	2110 x 450	2140 x 490 x 585	45

Modular 620/1240 Range

All cases in this range interlock and crosstack with other cases within this series for safe and secure palletisation.

Product Code	External L x W x H (mm)	Opening L x W (mm)	Internal L x W x H (mm)	Weight (kg)
BG062031031	620mm x 310 x 310	540 x 235	570 x 265 x 230	5.75
BG062031045	620mm x 310 x 450	540 x 235	565 x 260 x 375	7.75
BG062062031	620mm x 620 x 310	545 x 545	570 x 570 x 230	9
BG062062045	620mm x 620 x 450	545 x 545	570 x 570 x 380	12
BG062062067	620mm x 620 x 675	540 x 540	555 x 555 x 615	15
BG124062031	1240mm x 620 x 310	1155 x 540	1185 x 565 x 230	18
BG124062045	1240mm x 620 x 450	1155 x 540	1185 x 565 x 365	28
BG124062067	1240mm x 620 x 675	1170 x 540	1185 x 565 x 595	32

Modular 520/1040 Range

All cases in this range interlock and crosstack with other cases within this series for safe and secure palletisation.

Product Code	External L x W x H (mm)	Opening L x W (mm)	Internal L x W x H (mm)	Weight (kg)
BG052045025	520mm x 450 x 225	440 x 350	465 x 395 x 170	6
BG052045031	520mm x 450 x 310	440 x 350	465 x 395 x 245	6.2
BG052045045	520mm x 450 x 450	440 x 350	465 x 395 x 395	8
BG104045025	1040mm x 450 x 225	955 x 350	995 x 400 x 180	12
BG104045031	1040mm x 450 x 310	955 x 350	985 x 395 x 250	13
BG104045045	1040mm x 450 x 450	955 x 350	980 x 390 x 400	14.5
BG104090031	1042mm x 900 x 310	960 x 805	985 x 845 x 210	16.5
BG104090045	1042mm x 900 x 450	960 x 805	985 x 845 x 360	18

Front Opening Range

Product Code	External L x W x H (mm)	Opening L x W (mm)	Internal L x W x H (mm)	Weight (kg)
BG055036045BP	550mm x 360 x 440	495 x 370	495 x 310 x 405	10.5
BG055055045BP	550mm x 550 x 440	495 x 460	495 x 500 x 410	14
BG055055045FO	550mm x 550 x 440	495 x 460	495 x 500 x 410	14

Insulated Box Range

Product Code	External L x W x H (mm)	Opening L x W (mm)	Internal L x W x H (mm)	Weight (kg)
BS060042034ULT	620mm x 410 x 340	515 x 305	500 x 300 x 215	8.2
BS062062045ULT1	620mm x 620 x 450	495 x 495	495 x 495 x 320	13
BS124062045ULT1	1240mm x 620 x 450	1100 x 480	1100 x 480 x 320	28

Part Number/SKU: Spacecase

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
