Panasonic Material Handling Industrial Robot TM1400G3 1437mm Horizontal Reach

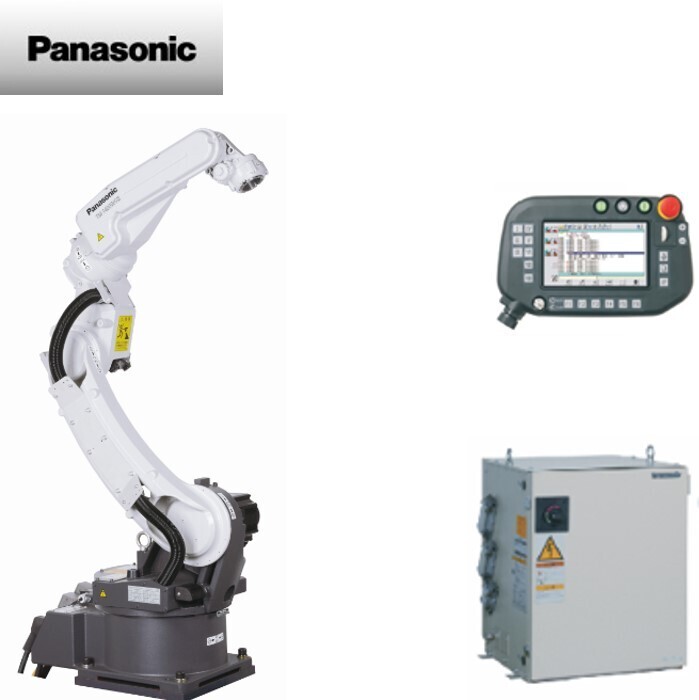

Panasonic TM1400G3 Industrial Robot System - Reach & Payload
The Panasonic TM1400G3 Industrial Robot System has 1437mm of horizontal reach and an extensive work envelope as shown in the elevation and plan view diagrams.

  • With a 6kg payload capacity this robot system is suited to a wide range of applications including;
  • Materials Handling
  • Picking & Packing
  • Welding
  • Labelling
  • Cutting
  • Machine Tending
  • Assembly

Panasonic G3 Industrial Robot Controller

  • Controls maximum 27 axes with multi robot and external axis control.
  • 3 robots synchronization capability
  • C-like advanced programming language
  • 64 bit CPU achieving 30 second quick boot time
  • Standard 40000 points memory
  • Standard user I/O 40 each. Option I/O 504 each
  • Optimum kinematic calculation realizing faster acceleration and deceleration
  • Communication via Ethernet
  • Optional DeviceNet, Profibus and CC-Link interfaces

Panasonic G3 Robot Teach Pendant

  • 7 inch TFT colour LCD
  • Graphical User Interface-display
  • Network protocols provides advanced production management and quality control for line productions
  • Eight function keys, enabling same action with less key strokes during teaching
  • Light weight design under 1 kg
  • 2 x USB 2.0 ports
  • SD memory card slot (SD, SDHC)
  • Key Switch for Manual to Automatic Mode switching
  • Includes Start / Stop / Servo On and Emergency Stop switches for production control.

Panasonic TM1100G3 Industrial Robot System – Dimensions


Part Number/SKU: TM1400G3

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU TM1400G3
Brand Panasonic
Shipping Weight 7.0000kg
Shipping Width 0.700m
Shipping Height 0.700m
Shipping Length 0.600m
Shipping Cubic 0.294000000m3
Unit Of Measure ea
