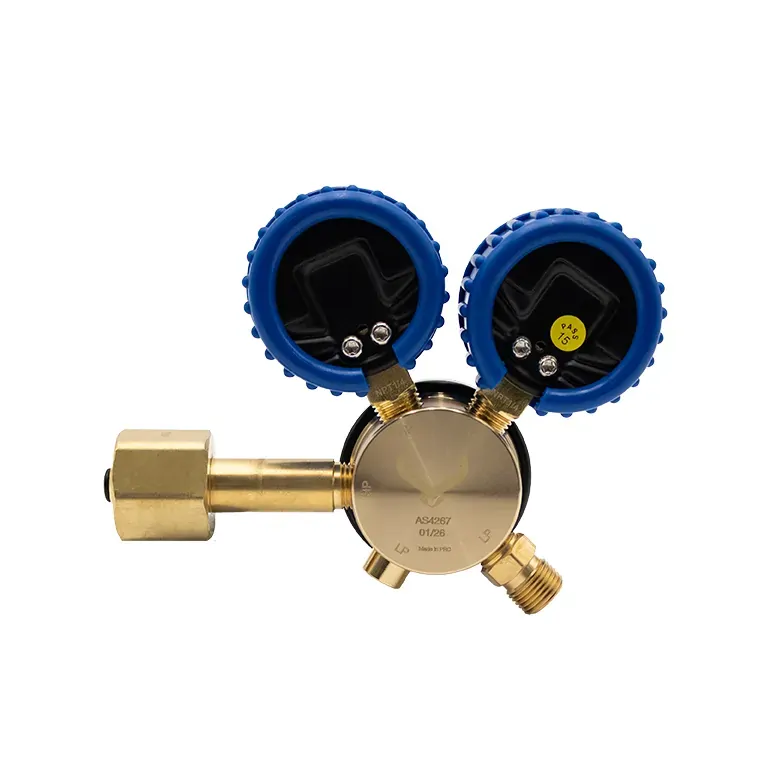

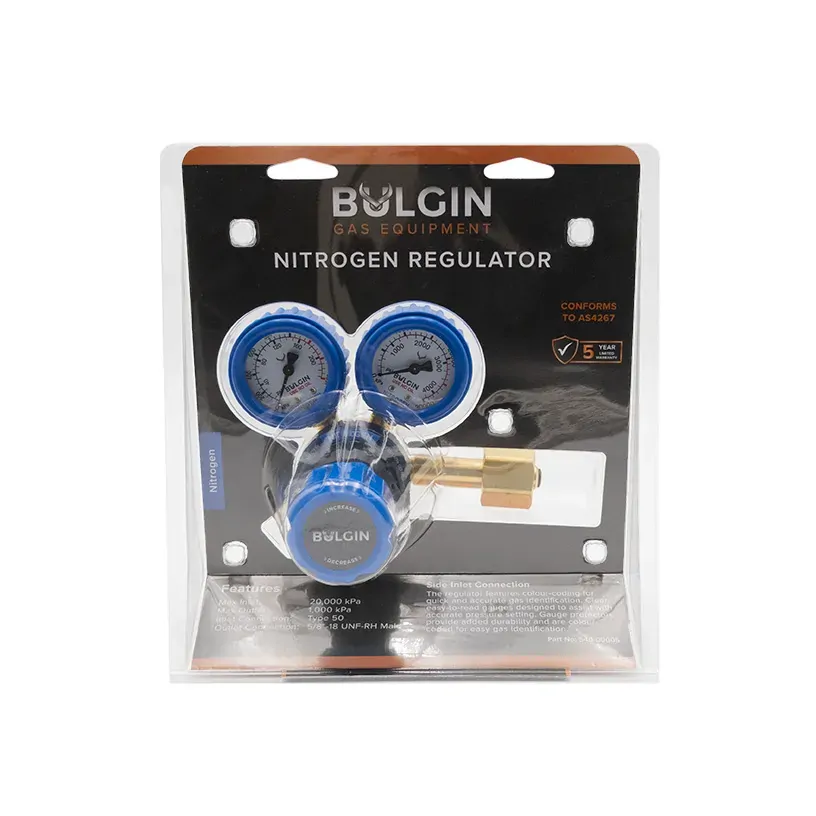

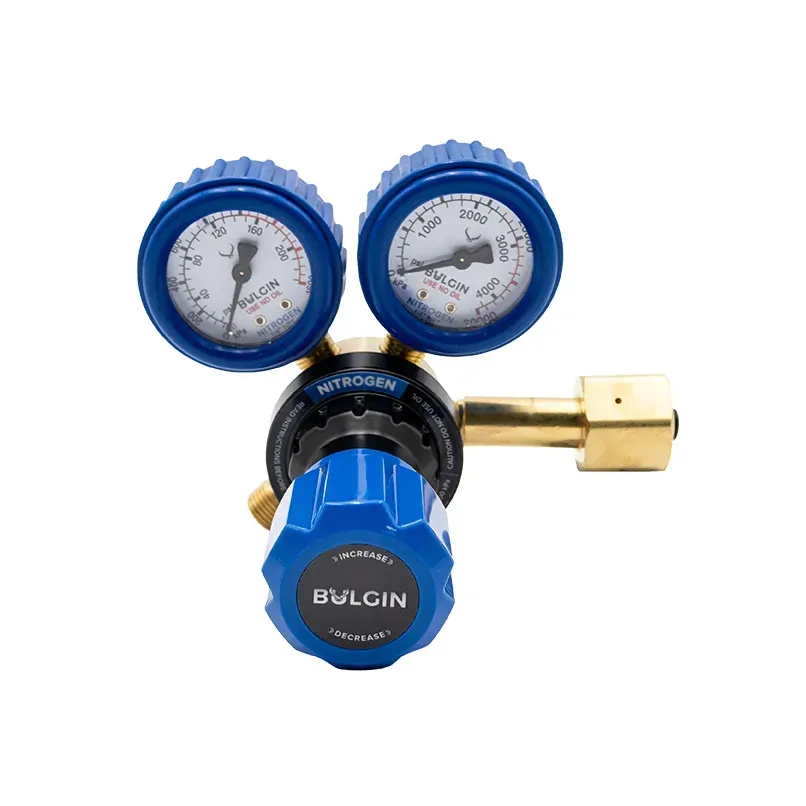

Nitrogen Regulator 0-1000kPa Side Entry Type 50 AS4267 Bulgin 540-00005

DESCRIPTION:

When working with nitrogen, stable and accurate pressure control is critical. The Bulgin Gas Equipment Nitrogen Regulator is engineered to deliver consistent, controlled gas pressure for industrial, fabrication, laboratory, and process applications. Designed for demanding environments, it combines precision adjustment, heavy-duty construction, and integrated safety protection for reliable long-term performance.

FEATURES:

  • Gauge protectors for added durability
  • Integrated pressure relief valve and sintered inlet filtration
  • Compatible with standard industrial nitrogen cylinders
  • Colour coded for clear gas identification
  • Conforms to Australian Standard AS 4267
  • Backed by Limited 5-Year Warranty

APPLICATIONS:

Nitrogen purging, pressure testing, inerting, blanketing, industrial processing, fabrication, laboratory use, and general inert gas applications.

SPECIFICATIONS:

Body Material High-grade machined brass
Diaphragm EPDM
Inlet Pressure Rating Up to 20,000 kPa
Outlet Pressure Range 0-1,000 kPa
Inlet Connection Type 50 as per AS 2473.2
Outlet Connection 5/8"-18 UNF RH
Gauges Dual gauge (cylinder & delivery pressure) with polycarbonate lenses and gauge protectors
Safety Features Integrated pressure relief valve, sintered inlet filter
Standards Compliance Conforms to AS 4267
Temperature Rating −20°C to +60°C



Alternative SKU: RC1SNI10

Part Number/SKU: 540-00005

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 540-00005
Brand Bulgin Group
Shipping Weight 2.00kg
Shipping Width 0.220m
Shipping Height 0.220m
Shipping Length 0.220m
Shipping Cubic 0.010648000m3
Unit Of Measure ea
