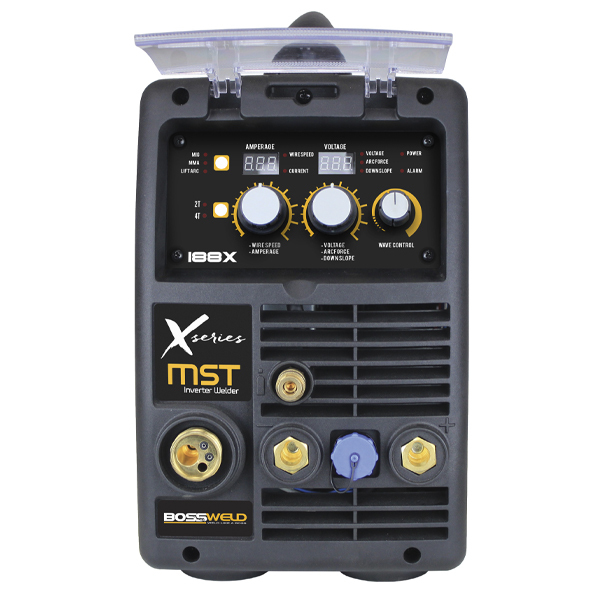

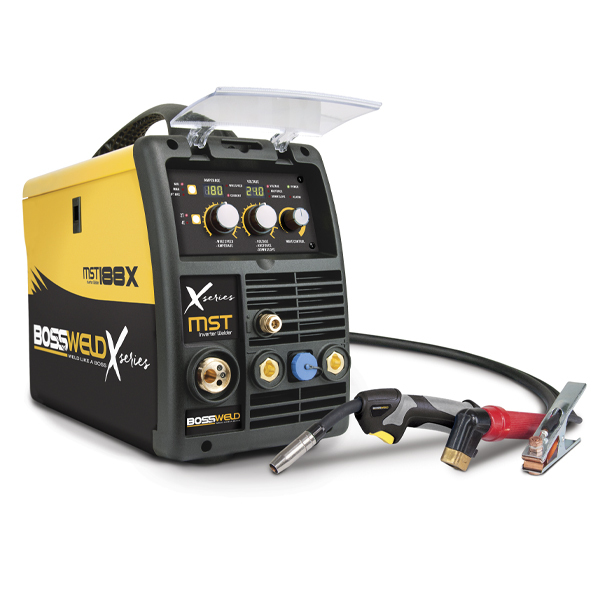

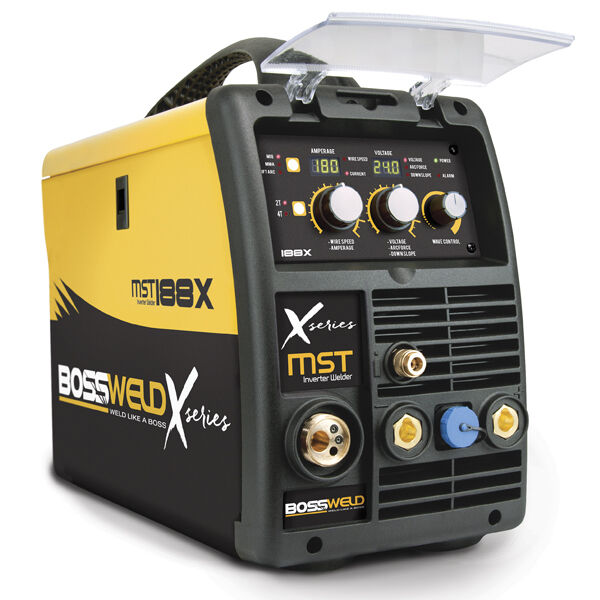

Multipurpose Welder X-Series 188X MST 240V 10Amps Bossweld 699188

The  MST 188X is a lightweight and portable multi process inverter based welder that gives the welder the possibility to MIG, STICK and TIG weld from the same machine, making it the ideal
choice for your next welding project.

  • Multiprocess Welder
  • 180Amp Output
  • Spool Size – 1Kg & 5Kg
  • LCD Digital Display
  • DC TIG Lift Arc Function
  • Stepless Control
  • Spool Gun Ready
  • Gas / Gasless Operation
  • 2T / 4T Trigger Control
  • Generator safe
  • Materials - Aluminium (Mig Only), Mild steel, Stainless Steel, Brass, Cast Iron
  • Wire Size - Upto 0.9mm
  • Electrode Size - Upto 3.2mm (Ideal - 2.6mm)
  • 3 Year warranty

SPECIFICATIONS

 Primary Power   Single Phase 240V 50-60 Hz +/- 15%
 Duty Cycle @40°C  MIG/TIG/MMA 10% @ 180A
 Open circuit Voltage   MIG 58.5V
 Output Current Range

 MIG 40-180 Amps

 MMA/TIG 10-180 Amps

 I Max

 MIG 37.5A

 TIG 29.5A

 MMA 44A

 I eff

 MIG/MMA 10 A

 TIG 9.5 A

 Wire Diameter   0.6mm to 1.0mm
 Electrode Diameter Range  1.6mm to 3.2mm
 Thermal Overload  Yes
 Minium kVA  9
 Dimensions   55 x 39.5 x1.4 cm
 Weight   12.5 Kg

PACKAGE INCLUDES

  •  MST 188X Inverter Welder

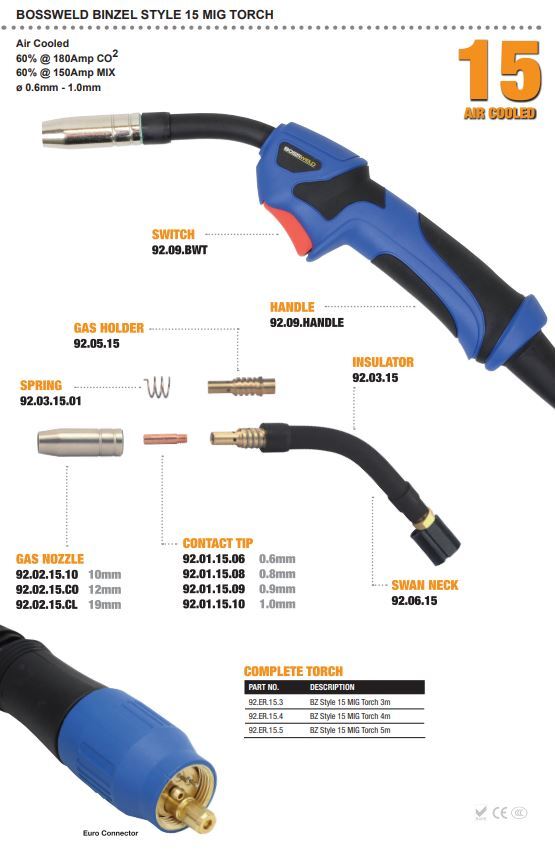

  •  3Mt Ergon BZ15 MIG Torch
  •  3Mt Twist lock Electrode Holder
  •  3Mt 200Amp Earth clamp
  •  2Mt Gas Hose
  •  Bossweld Twin Gauge Argon Regulator
  • Operator Manual
  • Drive Rollers
    • 0.8 / 0.9mm V Groove Roller (fitted)
    • 0.8 / 0.9mm Knurled spare

Part Number/SKU: 699188

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 699188
Brand Bossweld
Shipping Weight 20.0000kg
Shipping Width 0.560m
Shipping Height 0.520m
Shipping Length 0.370m
Shipping Cubic 0.107744000m3
Unit Of Measure ea
