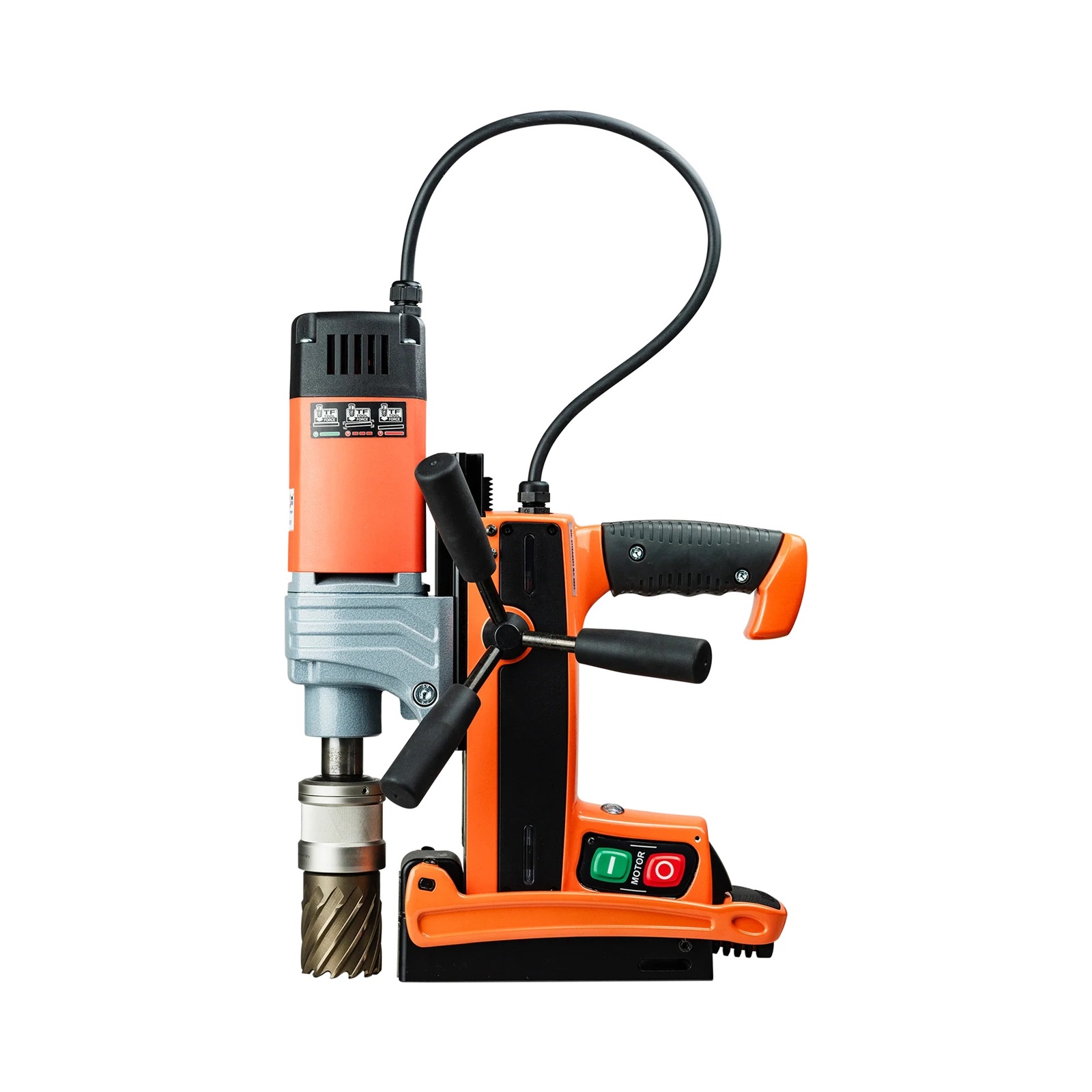

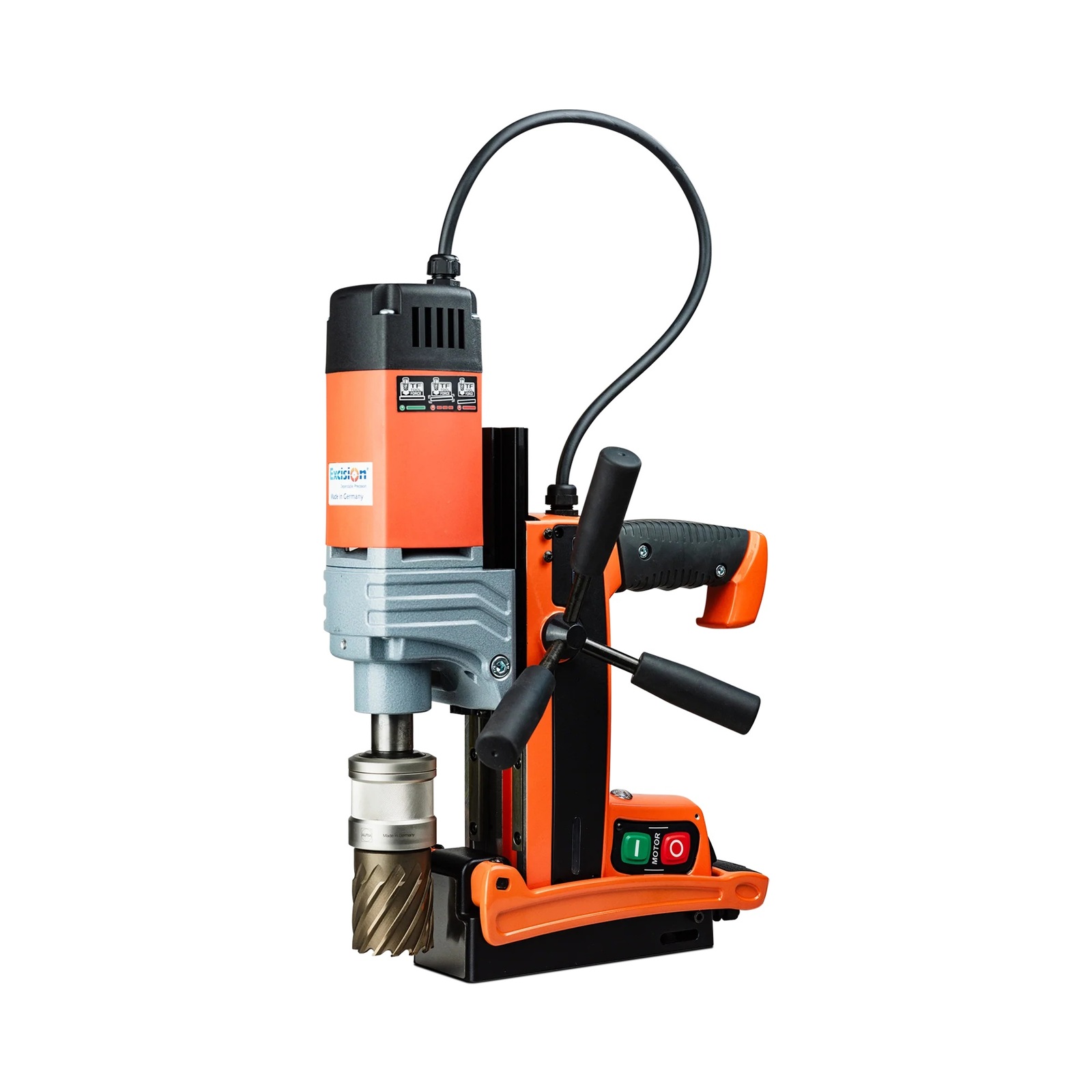

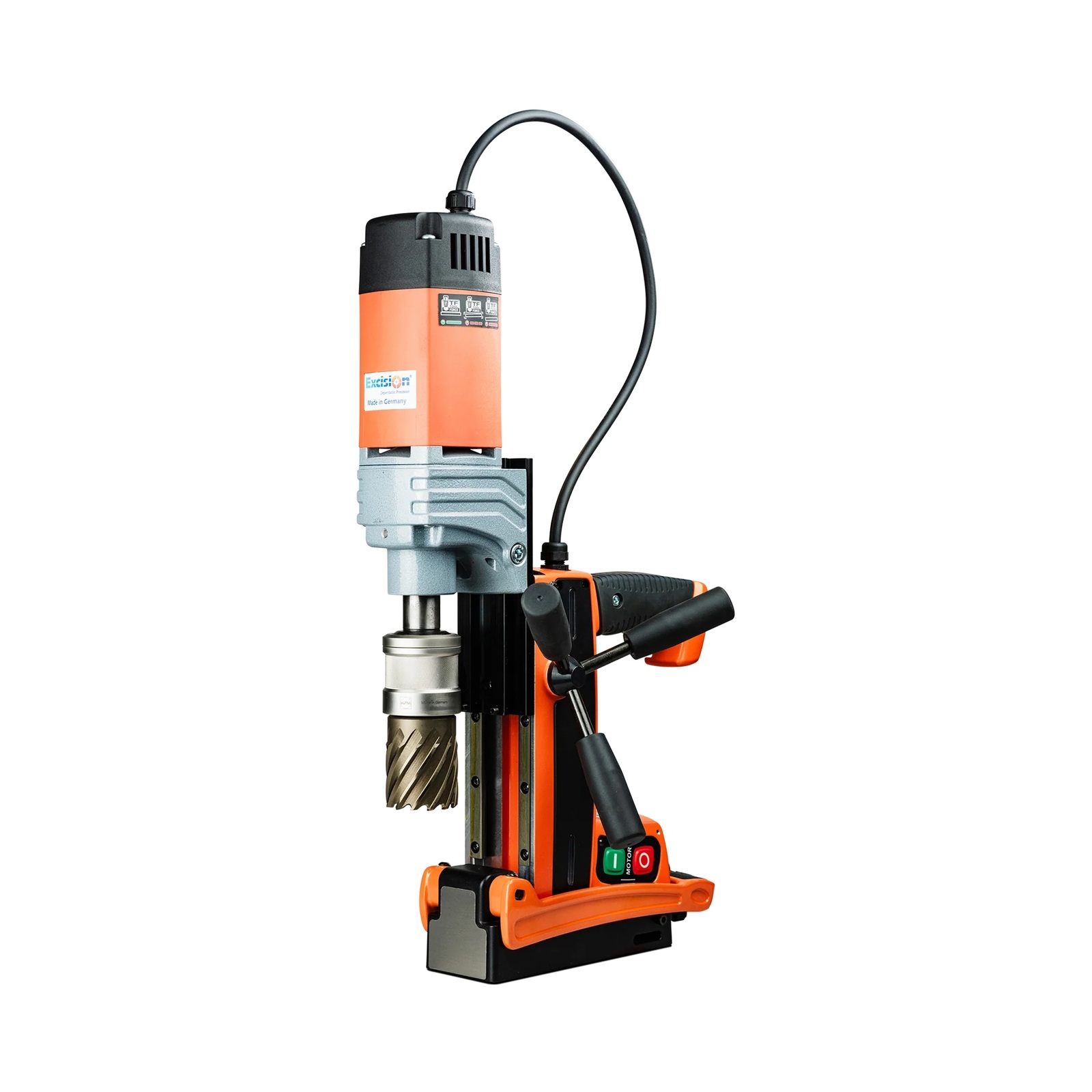

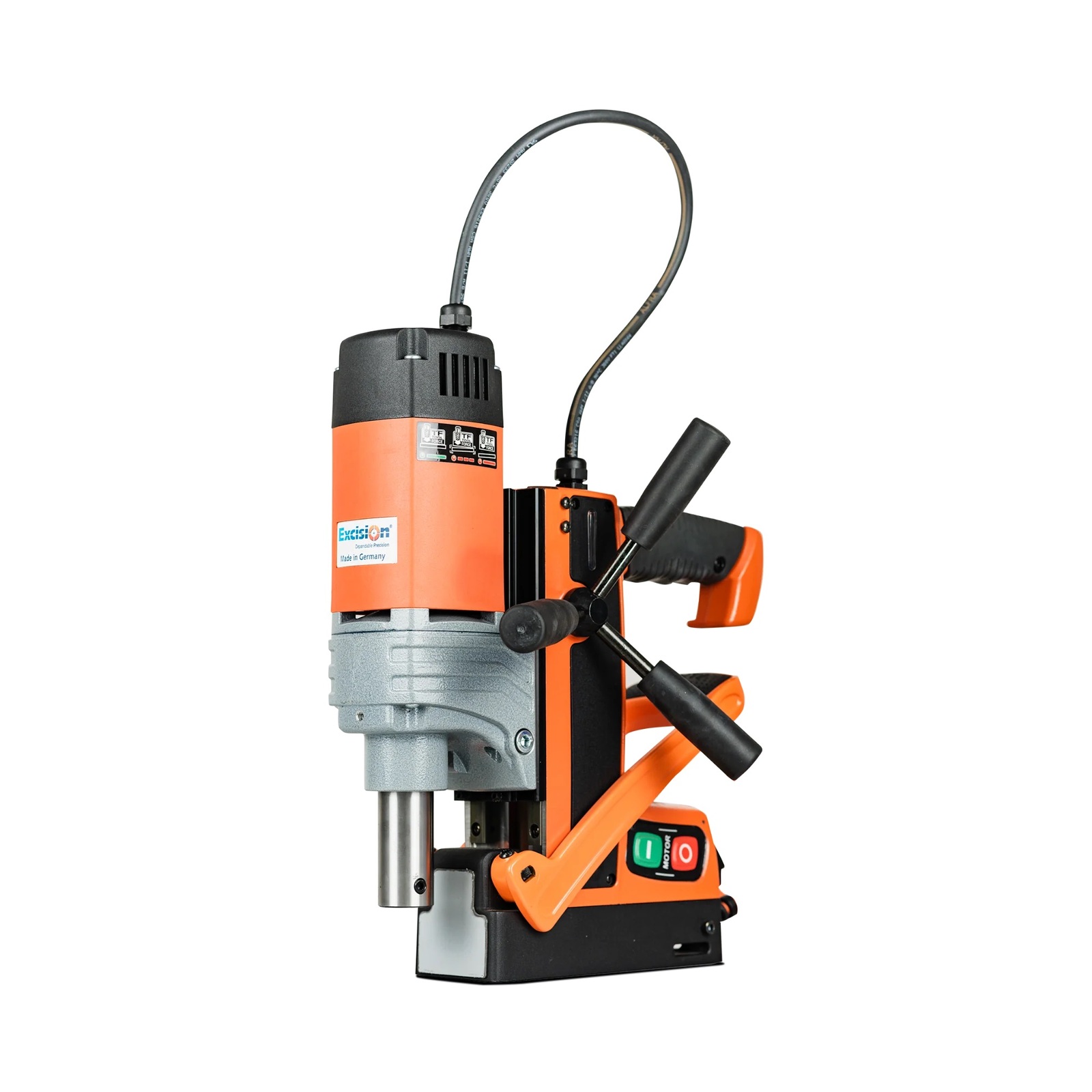

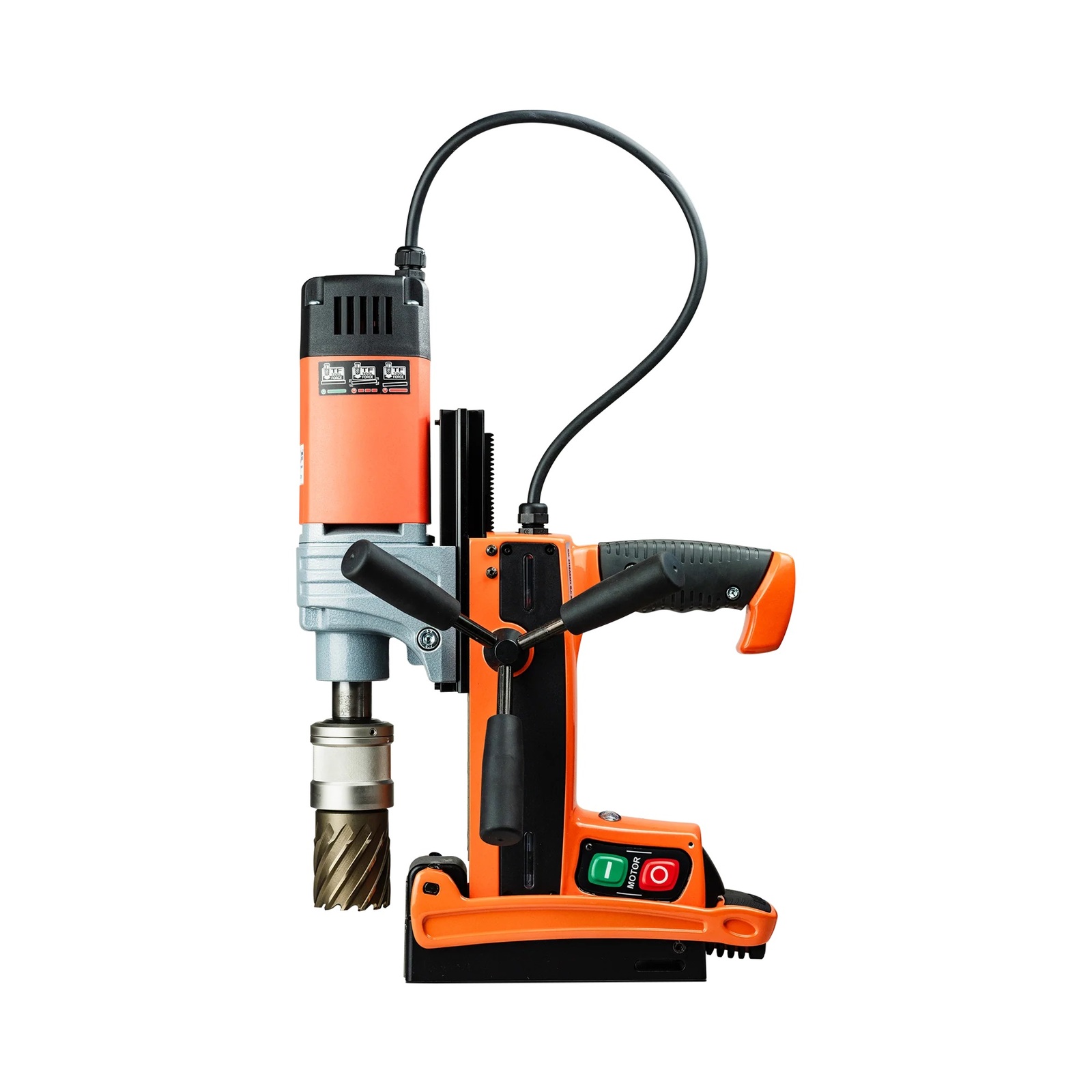

Magnex Drill 40 Excision 18801

Magnex Drill 40 features a powerful permanent magnet, ideal for a wide range of steel with a minimum thickness of 1.6mm, that requires no power supply. It's also wonderfully lightweight and compact, fitting 19mm Weldon shanks, and has double dove-tailed height adjustment for drill chucks.



  • Powerful permanent magnet - doesn't need a power supply
  • Very light and compact
  • Smooth start motor with overload protection and emergency stop
  • Stepless adjustment slides
  • Self-adjustment guides
  • Soft touch grips
  • Membrane keyboard
  • Quick-change chuck
  • 105mm stroke
  • Suits 19mm Weldon shanks

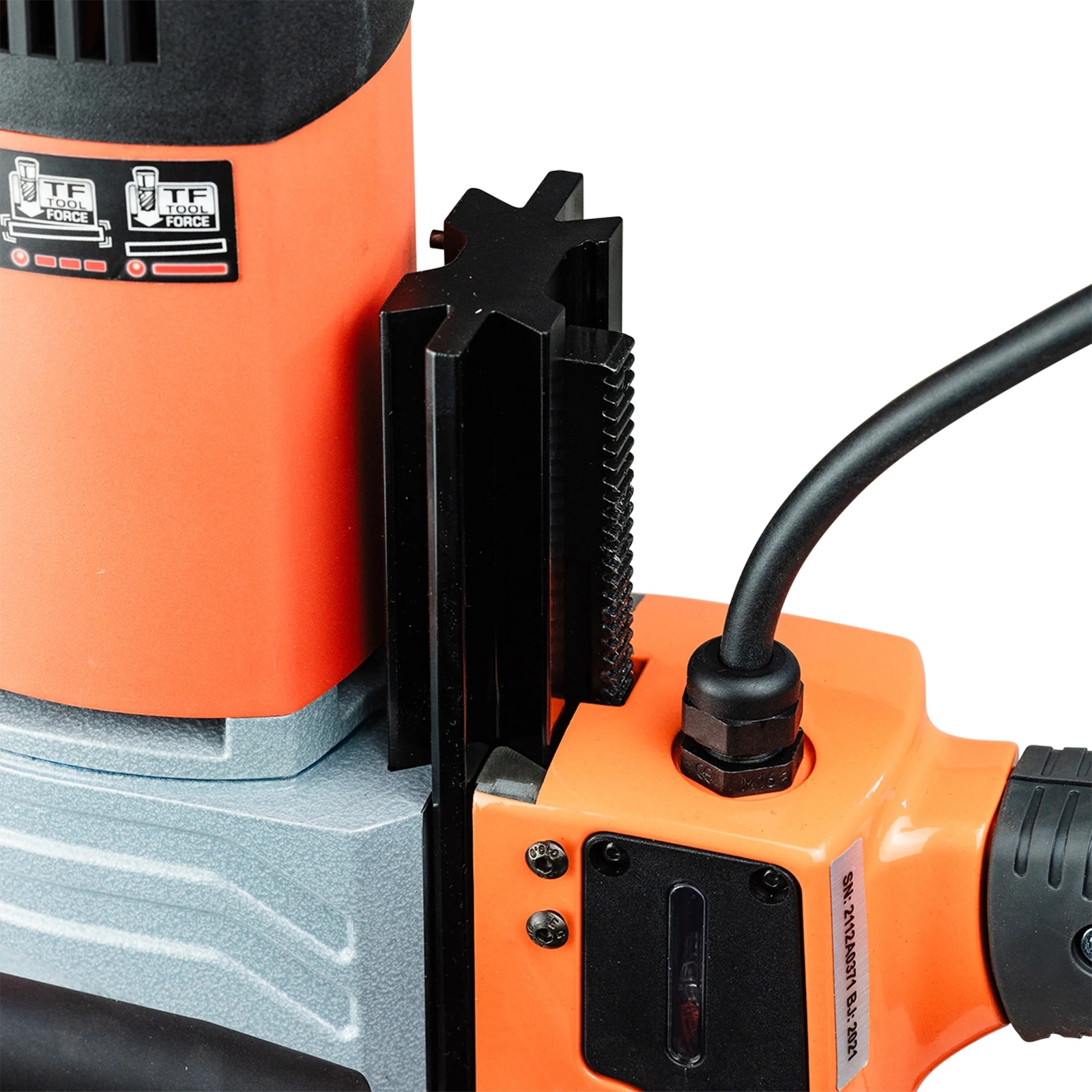

  • Double dove-tailed height-adjustment for using drill chucks
  • Ergonomic design
  • Solid brass guides



Drill Features and Specifications




Core Drill Dimensions 12.0-40.0mm
Cutting Depth 50.0mm
Twist Drill

1.0-13.0mm

Counter-Boring

10.0-40.0mm

Arbors

Quick-Release Chuck

Stroke

105mm

Height Adjustment

80mm

Gearbox-On-Load Speed

450rpm

Power Consumption

1,100W

Voltage

230V 50/60Hz

Tool Force (10mm)/Magnetic Adhesion Strength

2,800N/17,000N

Tool Force (6mm S235)

2,300N

Magnetic Base

72×190mm

Weight

9.9Kg


Part Number/SKU: 18801

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 18801
Brand Excision
Shipping Weight 10.0000kg
Shipping Width 0.600m
Shipping Height 0.950m
Shipping Length 0.800m
Shipping Cubic 0.456000000m3
Unit Of Measure ea
