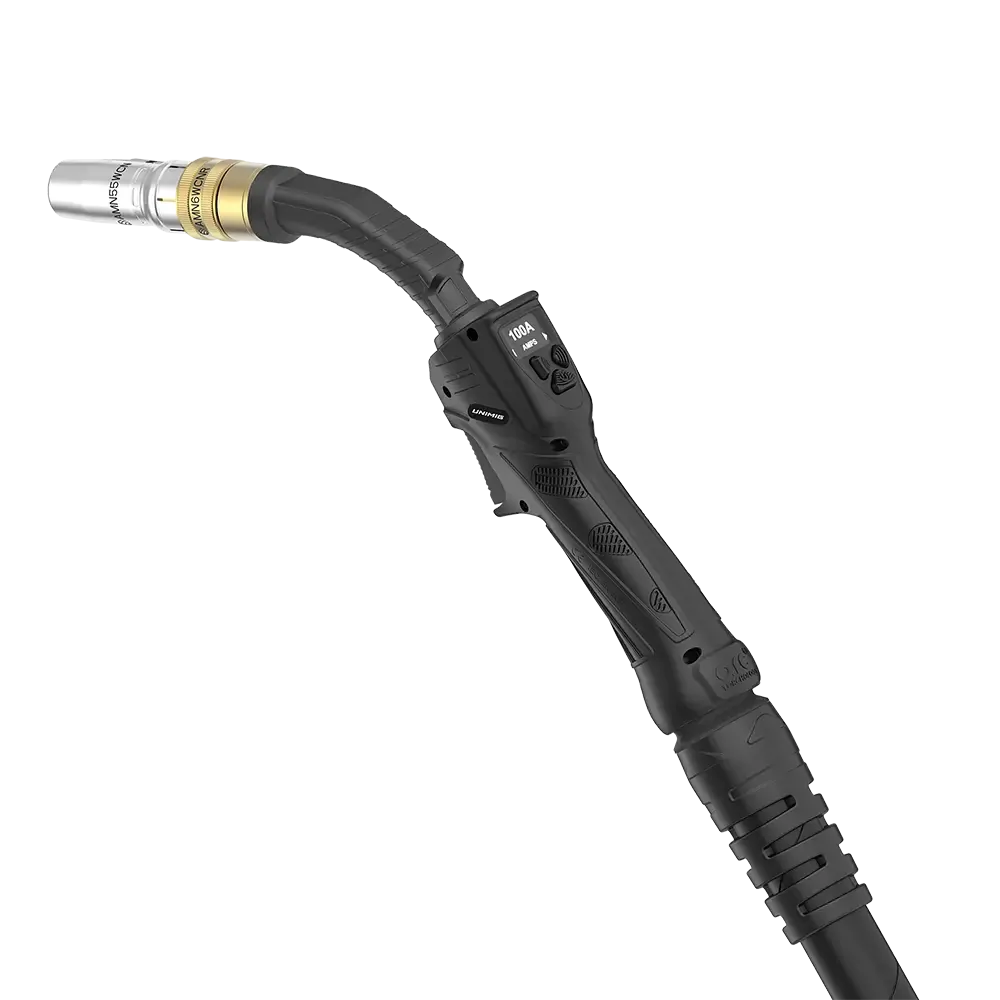

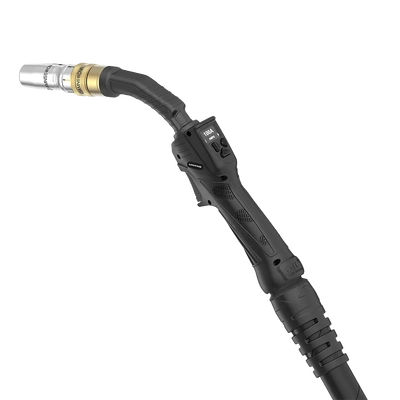

M580W Water-Cooled MIG Torch 4m Suit ENVY Unimig U11610

DESCRIPTION:

The arc torchology M580W water-cooled MIG torch has been engineered for long-lasting high-performance, especially when pulse welding, even under heavy loads.

• The 580A output will weld as thick as 1.6mm wires.
• 6x more life from the specially designed consumables for this torch.
• Digital MIG control modules let you adjust parameters while welding without disturbing the filler metal and weld puddle.

FEATURES:

Longer Torch Consumables Life: Get superior life out of every torch consumable. Designed for maximum performance, you will get 6x longer life with arc torchology consumables.
Contact Tip Performance: The arc torchology contact tips lasted up to 6x longer, withstanding the maximum amperage for 30 hours vs the Binzel 501D's 5 hours.
Gas Nozzle Performance: The arc torchology gas nozzles lasted up to 3x longer, withstanding the maximum amperage for 75 hours vs the Binzel 501D's 25 hours.
Tip Adapter Performance: The arc torchology tip adapters lasted up to 5x longer, withstanding the maximum amperage for 250 hours vs the Binzel 501D's  50 hours.
Cooler Running Torched: The arc torchology gas nozzles run 75% cooler in 15 minutes, with a maximum temperature of 200 degrees Celsius vs the competitor's 350 degrees Celsius.
Less Maintenance and Downtime: Spend less time cleaning your consumables and have them last longer with 90% less spatter adhesion.
Contact Tip Performance: The arc torchology contact tips had 90% less spatter adhesion on the tip's face, with only 9% spatter vs the binzel 501D's 100%.
Gas Nozzle Performance: The arc torchology gas nozzle had 33% less spatter adhesion on the nozzle's face, with only 67% spatter vs the Binzel 501D's 100%
Digital Control MIG Torch: Make live adjustments from the torch using simple digital buttons for amperage or voltage changes. The machine screen updates instantly, giving you accurate feedback while you weld. A clean, tactile control layout lets you adjust settings with ease.
Duraflex Performance Cable: Designed for maximum flexibility and durability, the Duraflex cable uses a cross-linked polymer jacket that resists heat, abrasion, and tearing. With a burn threshold of 375 degrees Celsius, it holds up under constant movement and heavy use at the torch.
Reinforced Rear Cable Support: A heavy-duty rear support keeps the torch cable stable and protected, even when the lead is bent at sharp angles. This reduces strain on the housing and helps maintain smooth, consistent wire feeding.
0.9-2.0mm Wire Size: Capable of welding a wide range of wire sizes, from as thin as 0.9mm to as thick as 2.0mm.
580A Output: Perform effortlessly on every weld. With a rated output of up to 580 amps, it delivers superior performance.

TECHNICAL SPECIFICATIONS:

TORCH SPECIFICATIONS:

WATER COOLER SPECIFICATIONS:

Part Number/SKU: U11610

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
