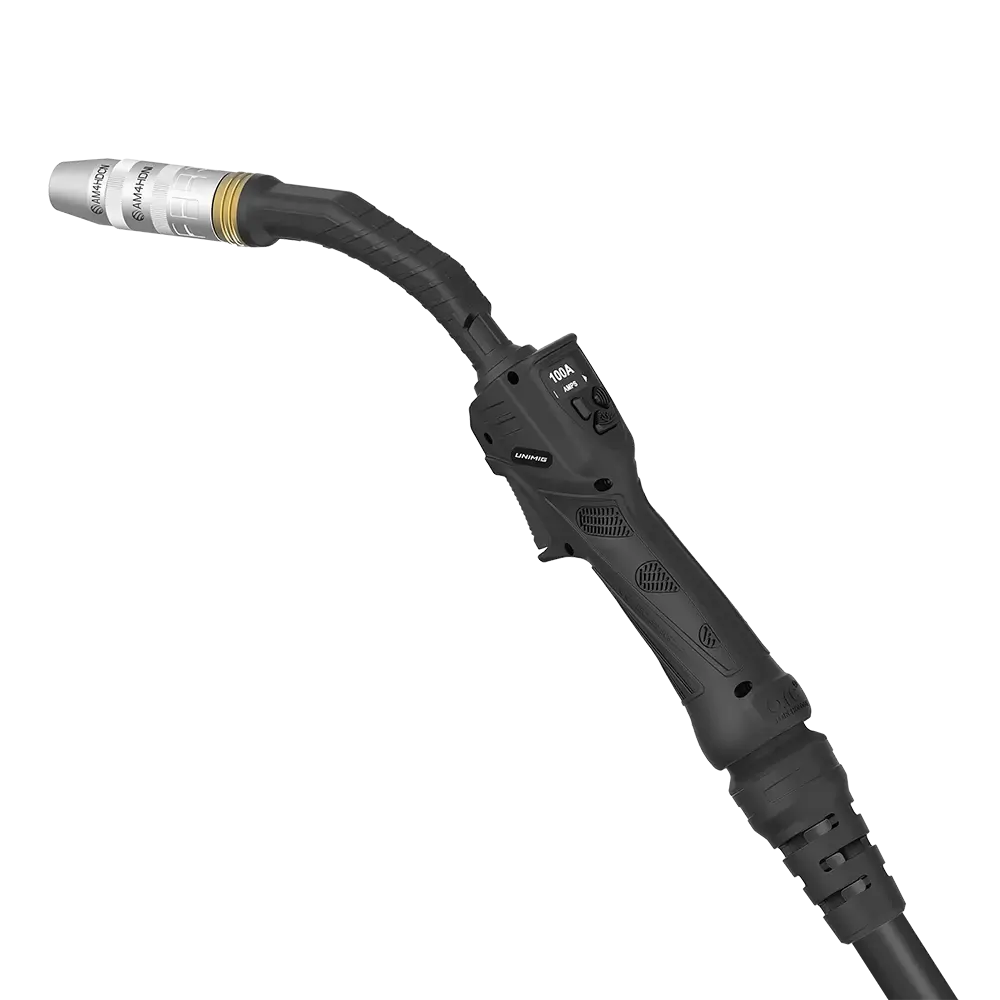

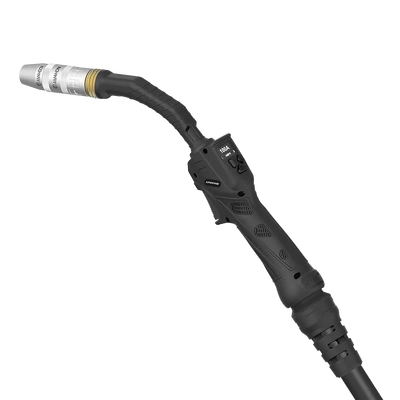

M350 MIG Torch 3M Suit ENVY Unimig U11607

DESCRIPTION:

The Arc Technology M350 MIG Torch has been engineered for high-performance, especially while pulse welding, with parameter adjustment at your fingertips.

  • The 350A output will weld as thick as 1.2mm wires.
  • 6x more life from the specially designed consumables for this torch.
  • Digital MIG control modules let you adjust parameters while welding without disturbing the filler metal and weld puddle.

FEATURES:

  • Longer Torch Consumable Life: Get superior life out of every torch consumable. Designed for maximum performance, you'll get 6x longer life with Arc Technology consumables.
  • Contact Tip Performance: The Arc Technology contact tips lasted up to 6x longer, withstanding the maximum amperage for 30 hours vs the Binzel 501D's 5 hours.
  • Gas Nozzle Performance: The Arc Technology gas nozzles lasted up to 3x longer, withstanding the maximum amperage for 75 hours vs the Binzel 501D's 25 hours.
  • Tip Adapter Performance: The Arc technology tip adapters lasted up to 5x longer, withstanding the maximum amperage for 250 hours vs the Binzel 501D's 50 hours.
  • Cooler Running Torches: The Arc Technology gas nozzles run 75% cooler in 15 minutes, with a maximum temperature of 200°C vs the competitor's 35 °C.
  • Less Maintenance and Downtime: Spend less time cleaning your consumables and have them last longer with 90% less spatter adhesion.
  • Contact Tip Performance: The Arc Technology contact tips had 90% less spatter adhesion on the tip's face, with only 9% spatter vs the Binzel 501D's 100%.
  • Gas Nozzle Performance: The Arc technology gas nozzle had 33% less spatter adhesion on the nozzle's face, with only 67% spatter vs the Binzel 501d's 100%.
  • Digital Control Module: The control pad lets you adjust your parameters while welding without disturbing the filler metal and weld puddle.
  • Duralex Performance Cable: Get ultimate cable flexibility and the highest heat and abrasion resistance. The outer cable jacket is constructed from cross-linked polymers, providing a tear-proof layer with a burn threshold of 375°C.
  • Rear Cable Support: The extra-durable cable support system keeps your torch housing protected and intact, no matter what angle the torch lead is bent at, improving wire-feeding consistency.
  • 0.8-1.2mm Wire Size: Capable of welding a wide range of wire sizes, from as thin as 0.8mm to as thick as 1.2mm.
  • 350A Output: Perform effortlessly on every weld. With a rated output of up to 350 amps, it delivers superior performance.

SPECIFICATIONS:

Cooling Method Air-Cooled
Duty Cycle @ 40°C - CO2 60% @ 350A
Wire Size 0.8-1.2mm
Standard EN 60974-7
Maximum Output 350A
Duty Cycle @ 40°C - Mixed Gas 60% @ 320A
Lengths (m) 3, 4




Part Number/SKU: U11607

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU U11607
Brand Unimig
Shipping Weight 3.5000kg
Shipping Width 0.350m
Shipping Height 0.150m
Shipping Length 0.450m
Shipping Cubic 0.023625000m3
Unit Of Measure ea
