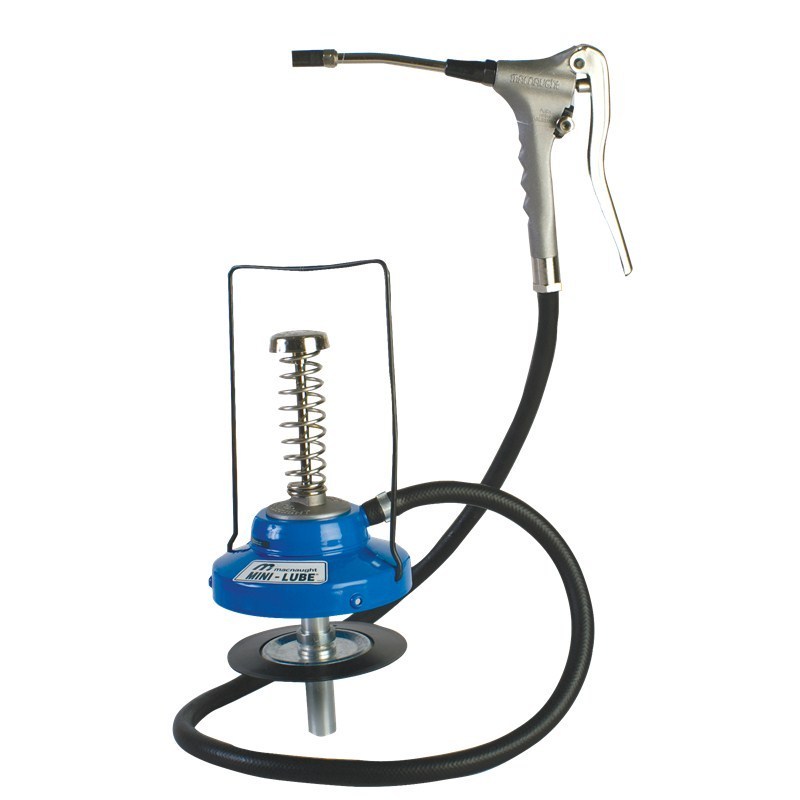

K7 MINILUBE® Portable High Pressure Manual Greasing System

The K7 MINILUBE® Portable High Pressure Manual Greasing System provides high-volume/high-pressure greasing in a compact and portable package. It consists of two main components, a foot operated spring-loaded pump, that dispenses grease from the container to the hose and gun and a patented high pressure/high volume KR pressurite™ gun. When the gun is set on the “high volume” position the gun will deliver up to 5,000 psi and when set on the “high pressure” setting the gun will deliver a lower volume of grease, but at higher pressures ( up to 10,000 psi). The K7 is an economical alternative to the more expensive air-operated greasing systems.

Features & Benefits

• Compatible with 2.5kg containers (K7-01)
• Includes a KT5 (2.5kg) reusable container (K7-24)
• Includes a KT6 5kg reusable container (K7-67)
• Can be used as a backup for power operated systems - In case of a systems malfunction or breakdown eg. power failure.
• Manual greasing system - Suitable for users who need a high-pressure greasing capability but don't have or can't use air-powered equipment.
• Light weight and portable - Holds more grease than a conventional handgun so it can be easily transported to the application.
• Up to 6 times the grease capacity of a cartridge - less down time changing grease cartridges
• Self air bleeding system when first used - No air purging necessary when changing containers
• Manually operated & light weight with carry handle - Portable go anywhere system.
• 2 way KR patented Pressurite Gun - Two grease guns in one
• High pressure / High volume switch - Can deliver up to 5,000psi on the high volume setting or 10,000psi on the high pressure setting
• Pressurite gun offers high volume greasing up to 5,000psi - High volume greasing offers superior performance compared to hand held manual grease guns
• Pressurite gun offers high pressure greasing up to 10,000psi - Air operated performance, clears blocked or damaged grease nipples
• Fully sealed greasing system - Clean grease to the bearing every time
• Handles most greases up to NLGI No.2 viscosity - Versatility of use
• Easy push-down foot operated, spring loaded pump - Provides 30 shots at the gun, no pressure developed in container, allows one-handed operation
• Rubber edged follower plate - Wipes container clean to use all of the grease in the container, prevents air pockets and contamination
• KY Supergrip™ Coupler - Positive, no leak connection. Ensures grease gets to the bearing
• Inbuilt grease strainer - Ensures clean grease to the bearing
• Fully repairable - Provides a longer service life
• 1.5m grease delivery hose - Easy to reach difficult applications, transfer only / Maximum 280psi
• 360° swivel to gun - Prevents hose kinking / twisting. Easy one handed operation
• Range of push-on / quick release greasing accessories available - Increased versatility / flexibility for different applications

Package Includes

• K7 MINILUBE® Portable Greasing system
• KR PRESSURITE gun
• 1.5m Flexible delivery hose
• Follower plate
• KT5 reusable 2.5kg grease container (K7-24)
• KT6 reusable 5kg grease container (K7-67)

Notes

• The K7-01 MINILUBE® does not include a 2.5kg container
• The K7-24 comes with a 2.5kg container
• The K7-67 comes with a 5kg container



K7-01 Product Sheet

K7-24 Product Sheet

K7-67 Product Sheet

K7 Minilube Instruction Manual

Part Number/SKU: K7-01

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
