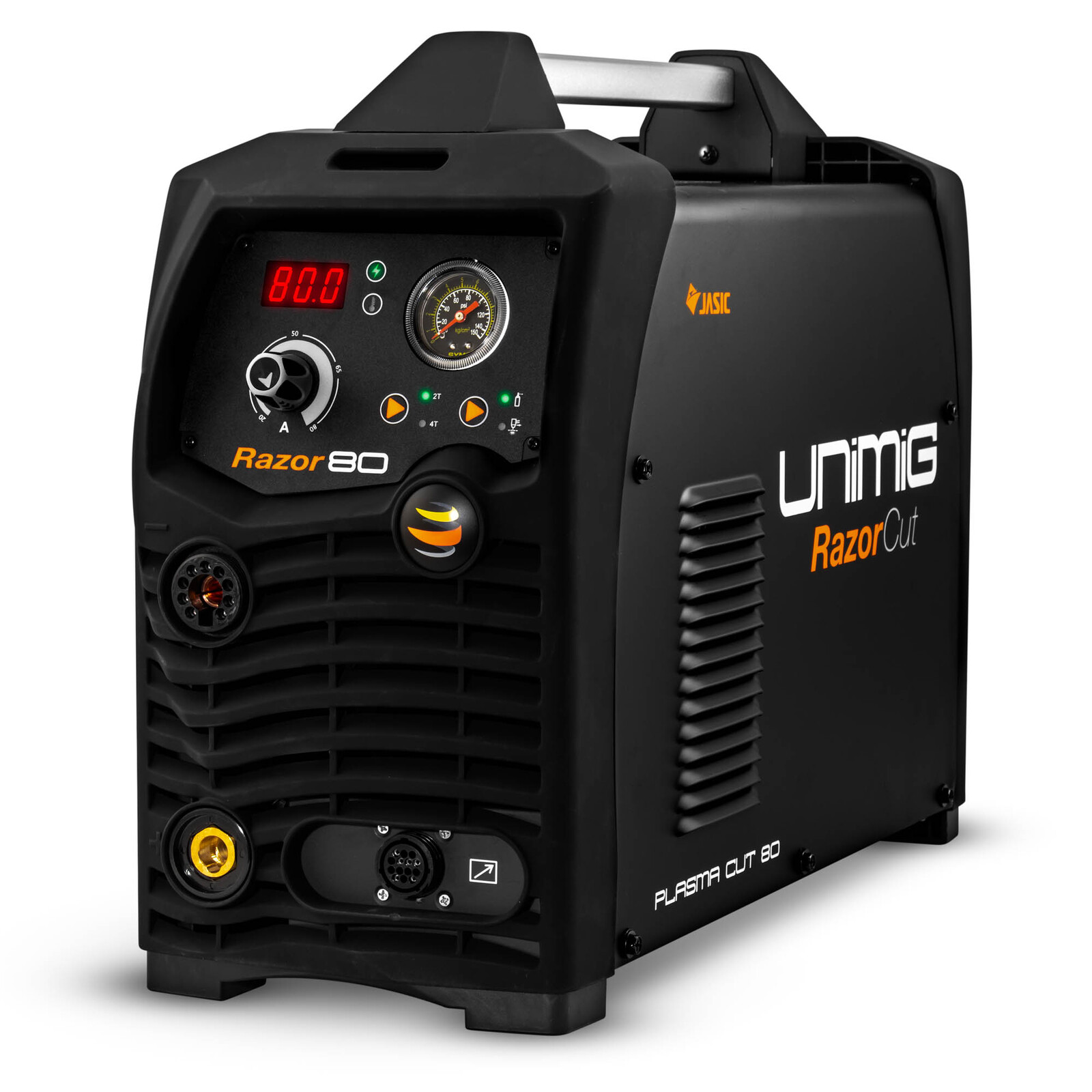

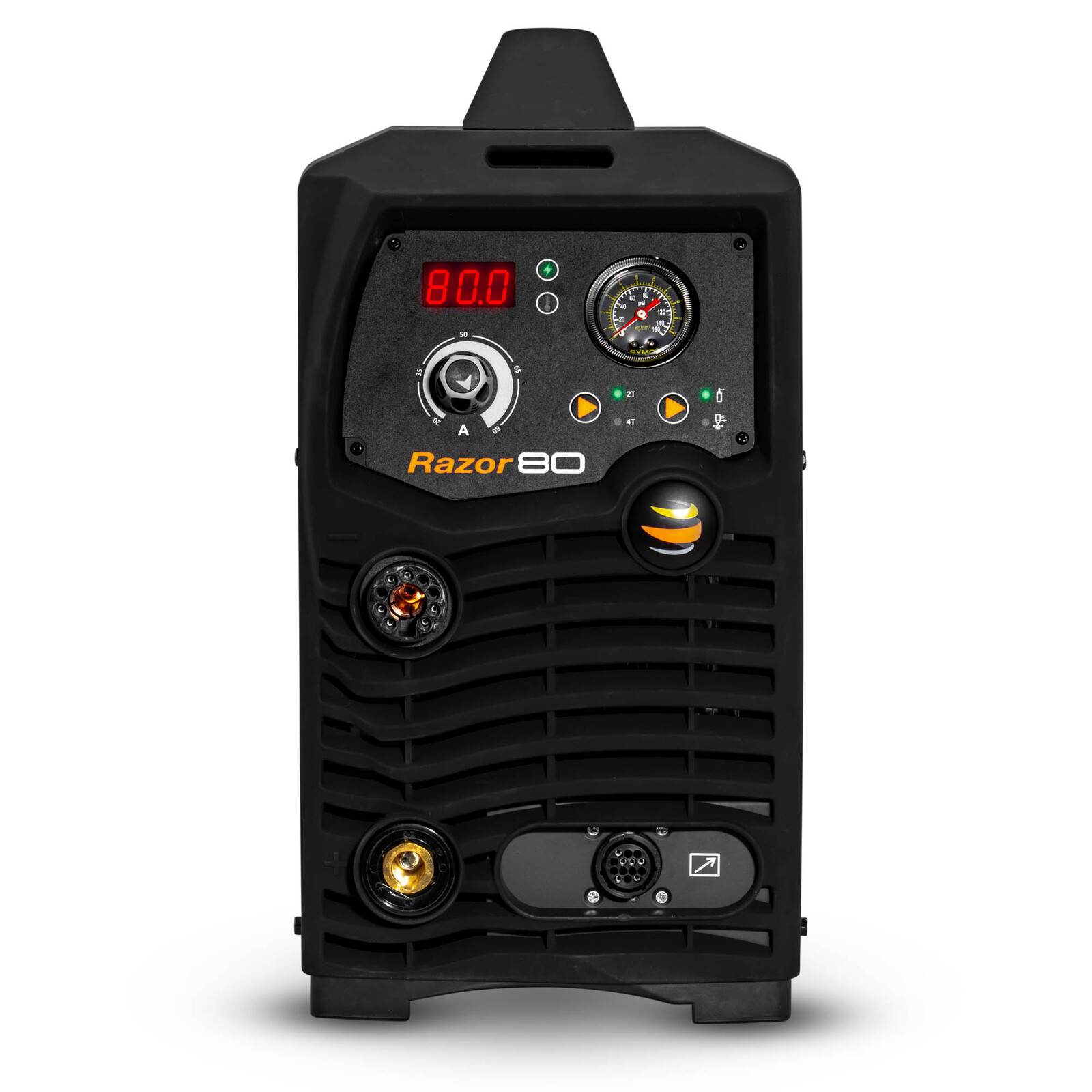

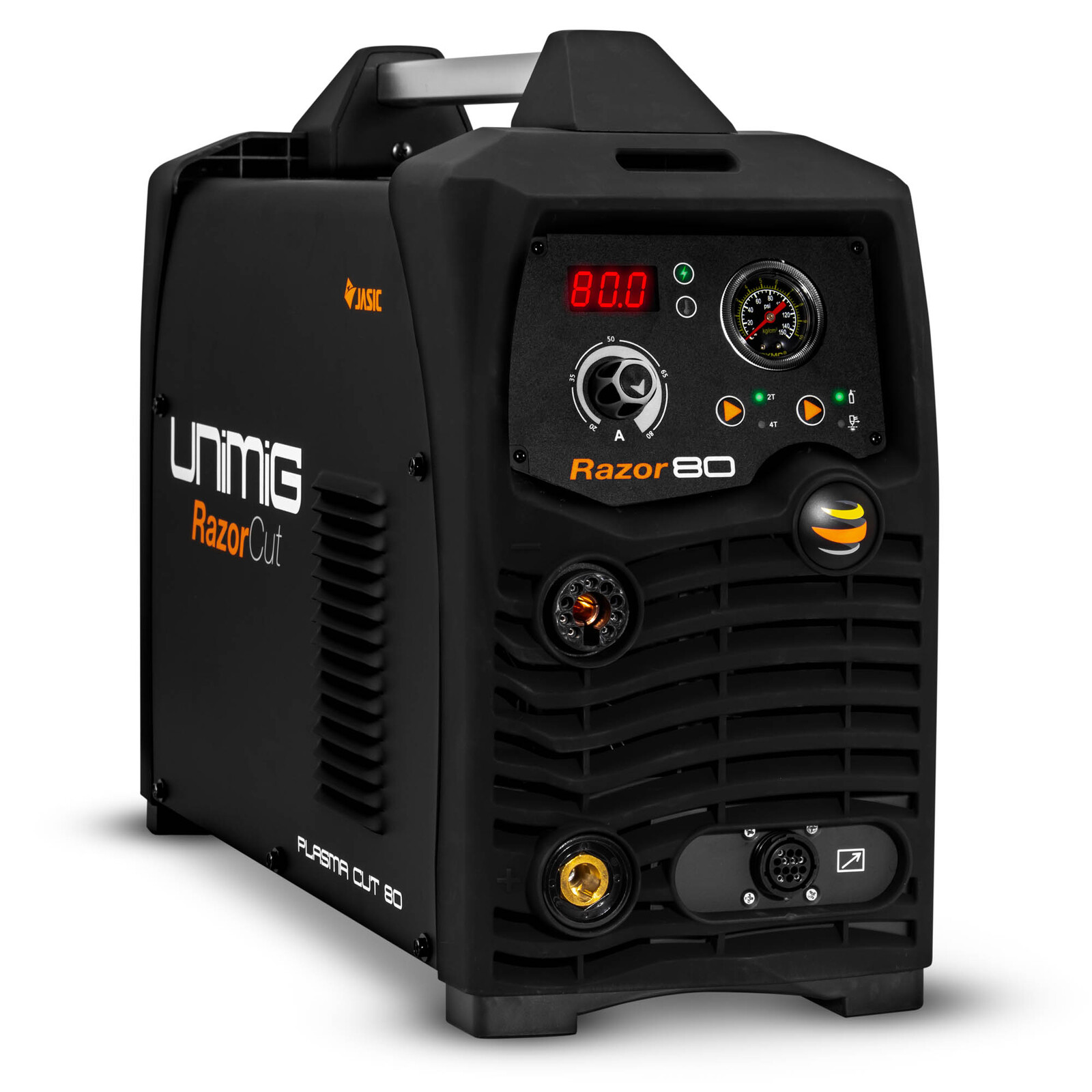

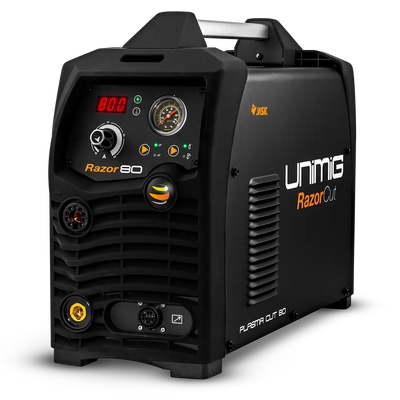

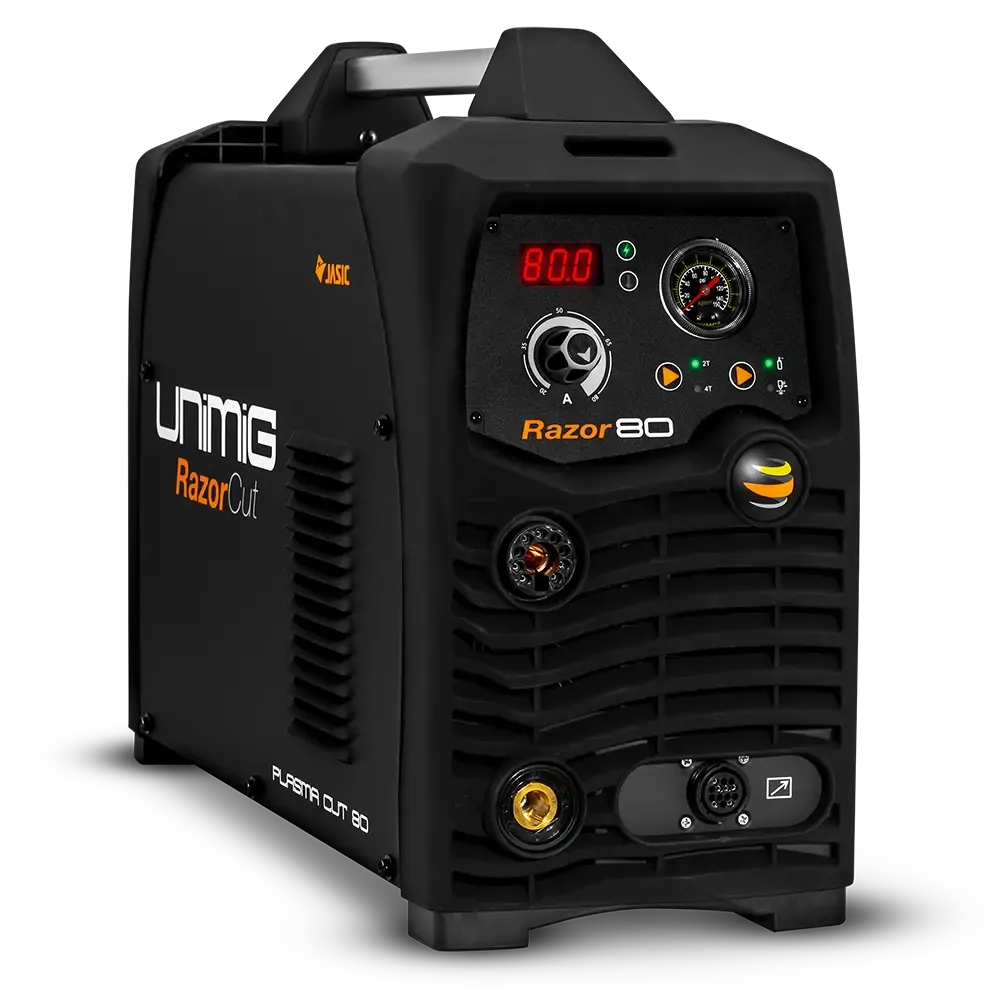

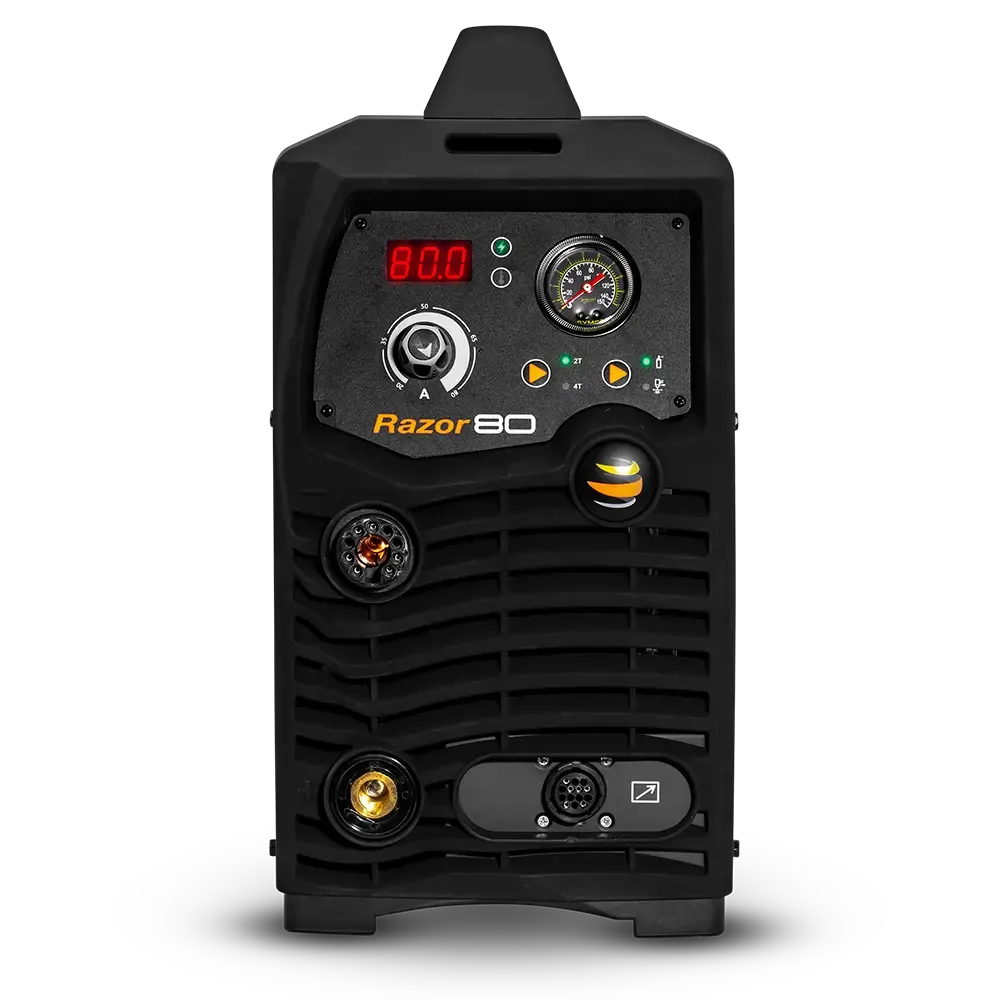

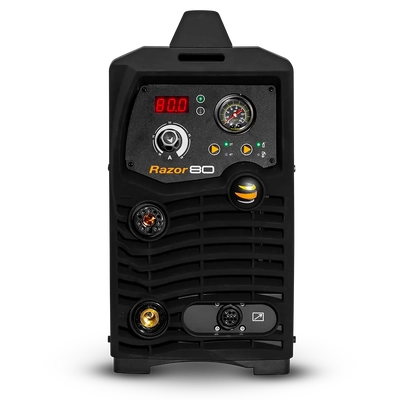

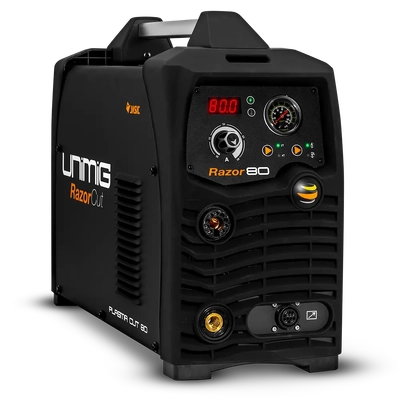

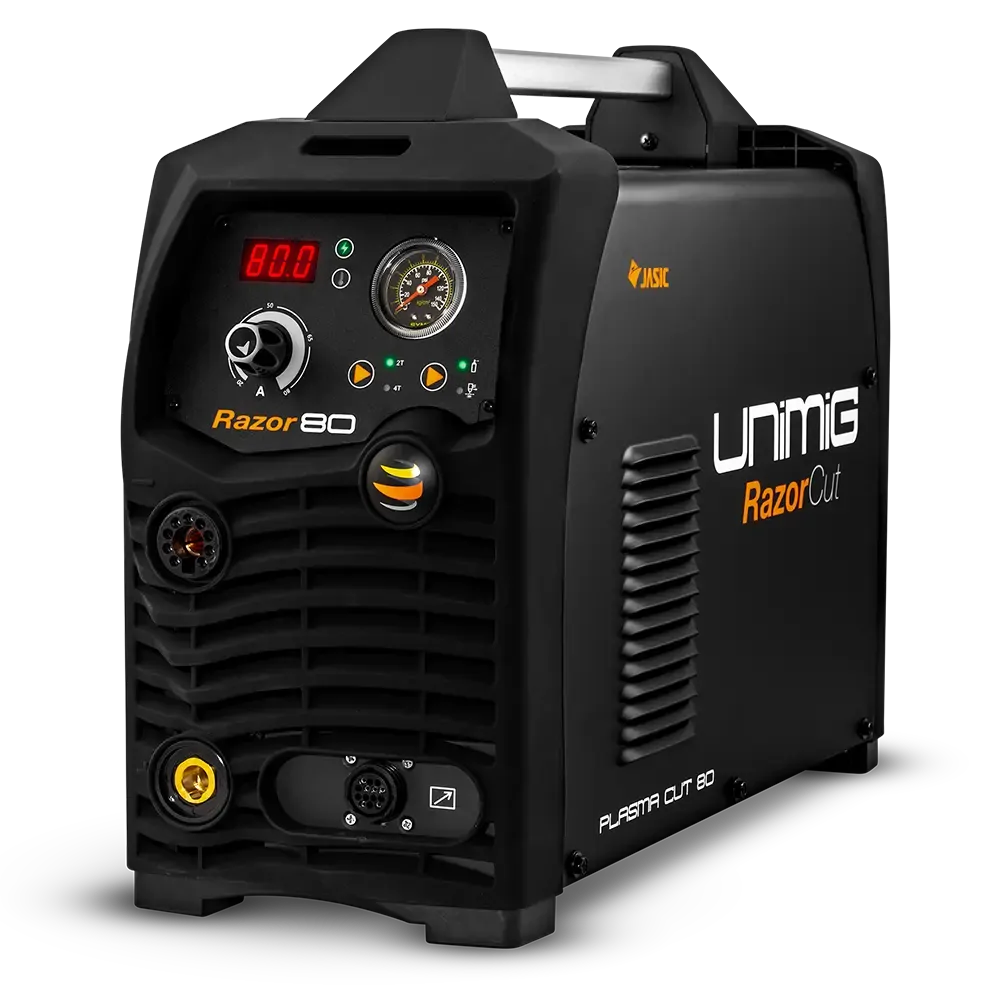

Inverter Plasma Cutter Razorcut 80 KUPJRRW80

The RAZOR™ CUT 80 is designed for maximum performance, offering the highest level of cutting performance from UNIMIG’s range. Capable of clean cutting 30mm and severing 35mm, this machine is for the professional needing maximum power from a portable machine.

Key Features
• Latest IGBT Inverter Technology
• CNC Connection
• Safe Euro torch connection
• High quality SC80 6 Metre Plasma torch
• Industrial application
• Tolerant to variable power supply
• In-built Air Regulator with preset air pressure
• Suitable to cut all electrically conductive materials
• Light weight and compact
• Strong metal housing, with plastic front and rear covers
• Generator use with pure sine wave generator only

PILOT ARC START

Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.

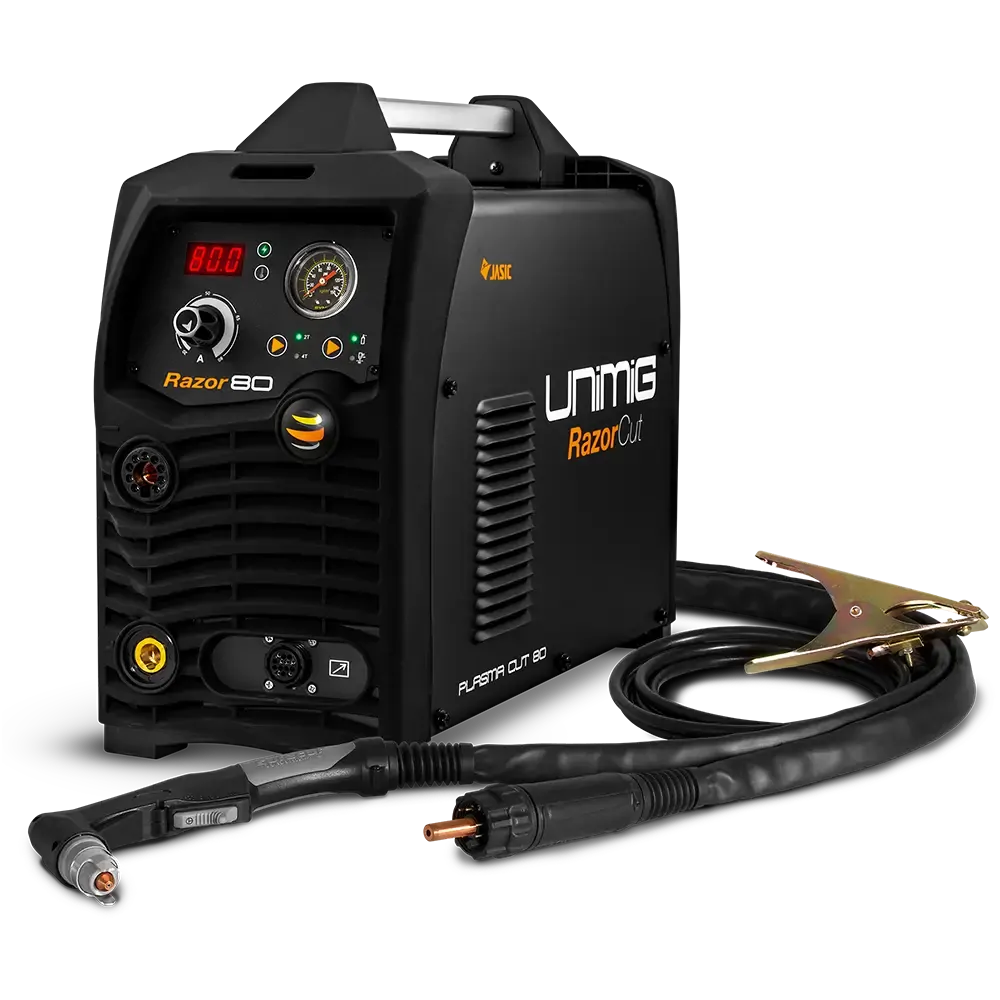

The UNIMIG RazorCut 80 is packaged ready to weld and includes :-

1 x Razor Cut 80 Power Source

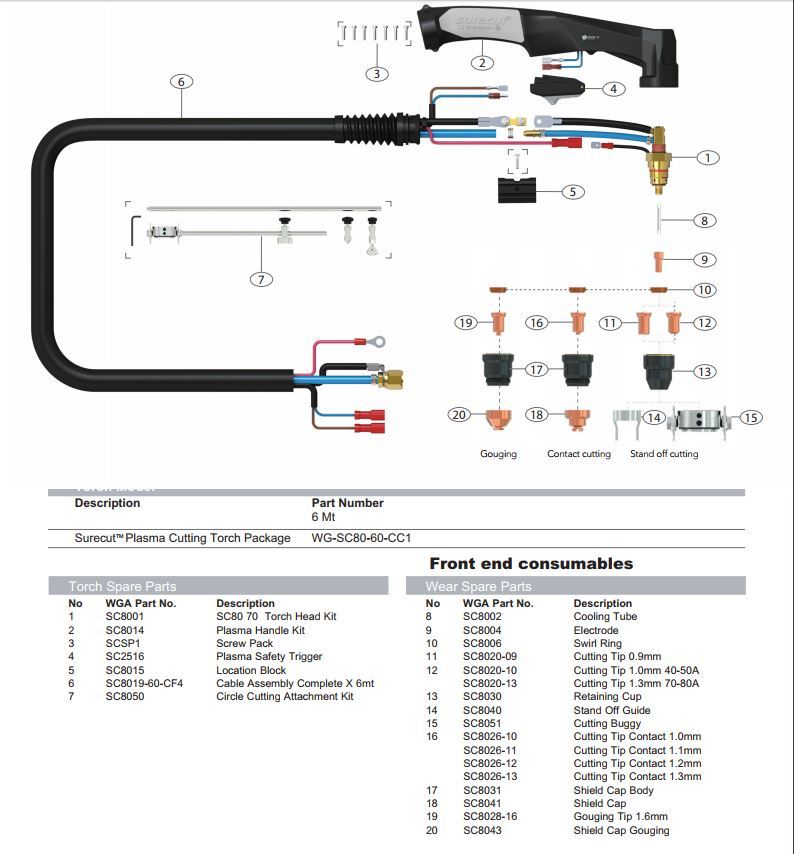

1 x 6 metre  SC80 Plasma Torch
1 x 4 metre  300 Amp earth clamp
1 x Instruction Manual

PLASMA CUT SPECIFICATIONS

 Plasma Cut Current Range   20-80 A
 Plasma Cut Duty Cycle @ 40° C  40% @ 80A
 Mild Steel Cut Thickness   30mm
 Mild Steel Severance Thickness   35mm
 Aluminium Cut Thickness   16mm
 Aluminium Severance Thickness   20mm
 Stainless Steel Cut Thickness   16mm
 Stainless Steel Severance Thickness  20mm
 Air Flow Draw Off (L/min)  189
 Air Flow Pressure (Bar)   5.17 (75 psi)
 Plasma Arc Start   Pilot Arc

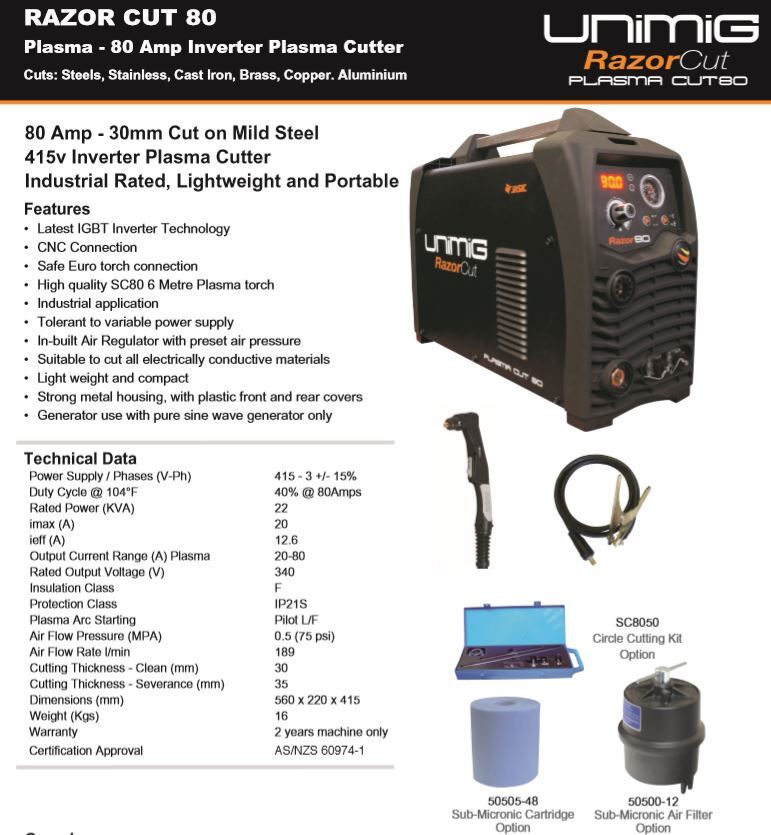

Info Sheet: /assets/files/RAZOR-CUT-80-Info-sheet1.pdf

Manual :


Part Number/SKU: KUPJRRW80

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU KUPJRRW80
Brand Unimig
Shipping Weight 20.0000kg
Shipping Width 0.700m
Shipping Height 0.550m
Shipping Length 0.300m
Shipping Cubic 0.115500000m3
Unit Of Measure ea
