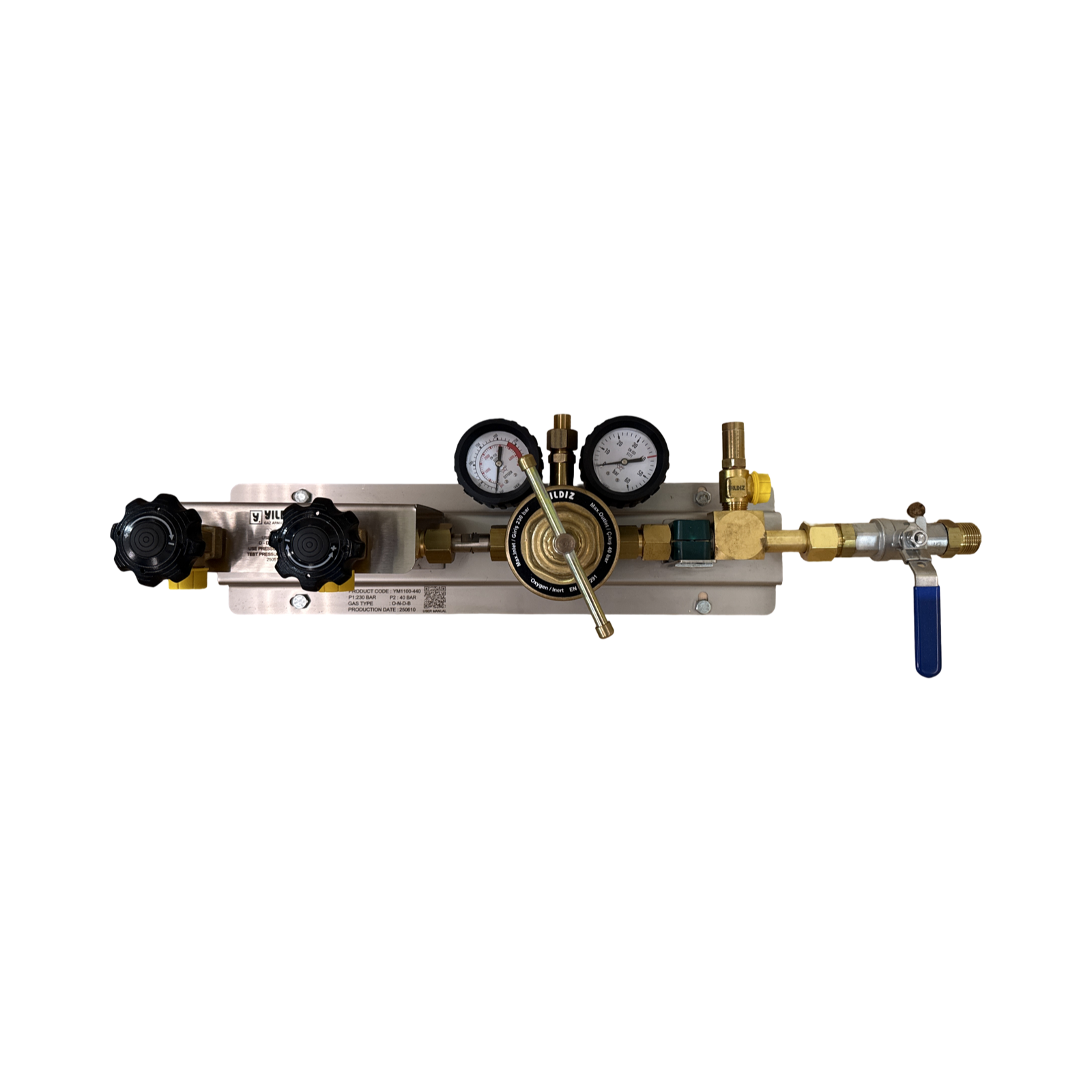

Inert Gas Manifold System Yildiz YM1100-440

DESCRIPTION:

In enterprises where the central system is installed and available, the pressure of the gas coming from the source (fixed or mobile, tube pallets, cylinders, or special containers) is reduced to the pressure level required by the central system with the high-pressure manifold with a regulator.

FEATURES:

• It offers high compressed gas (O, D, N, CO2, M, H) up to 550 Nm3 /h and up to 300 bar inlet pressure.
• A maximum inlet pressure of 230 bar is reduced to outlet levels of 10 bar, 20 bar, or 40 bar.
• Equipped with 2 cylinder connections with valves, suitable for use with individual cylinders or cylinder bundles.
• Extension connections on the inlet side allow additional cylinders or bundles to be connected to the system by purchasing extra cylinder valve connections.
• All components of the system are mounted on a high-strength stainless steel sheet.
• In oxygen systems, a flashback arrestor is installed before the ball valve on the outlet line.
• Check valves located at both cylinder connection valves prevent backflow of gas, thereby enhancing system safety.
• Thanks to its compact design, it occupies minimal space while its cost-effective structure reduces investment expenses.
• Safety relief devices located in and after the pressure regulator ensure that any excess pressure is safely vented in case of malfunction.

MATERIALS:

• Body:    Brass (Forged)
• Diaphragm:    Stainless Steel (10-20 Bar Outlet) / Piston Type (40 Bar Outlet)
• Cover:    Brass (Forged)
• Pressure-adjusting screw:    Stainless Steel
• Inlet Filter:    Bronze & Sintered Stainless Steel
• Connectors and Fittings:    Brass, Stainless Steel
• Plate:    Stainless steel
• Ball Valve:    Stainless Steel

Part Number/SKU: YM1100-440
