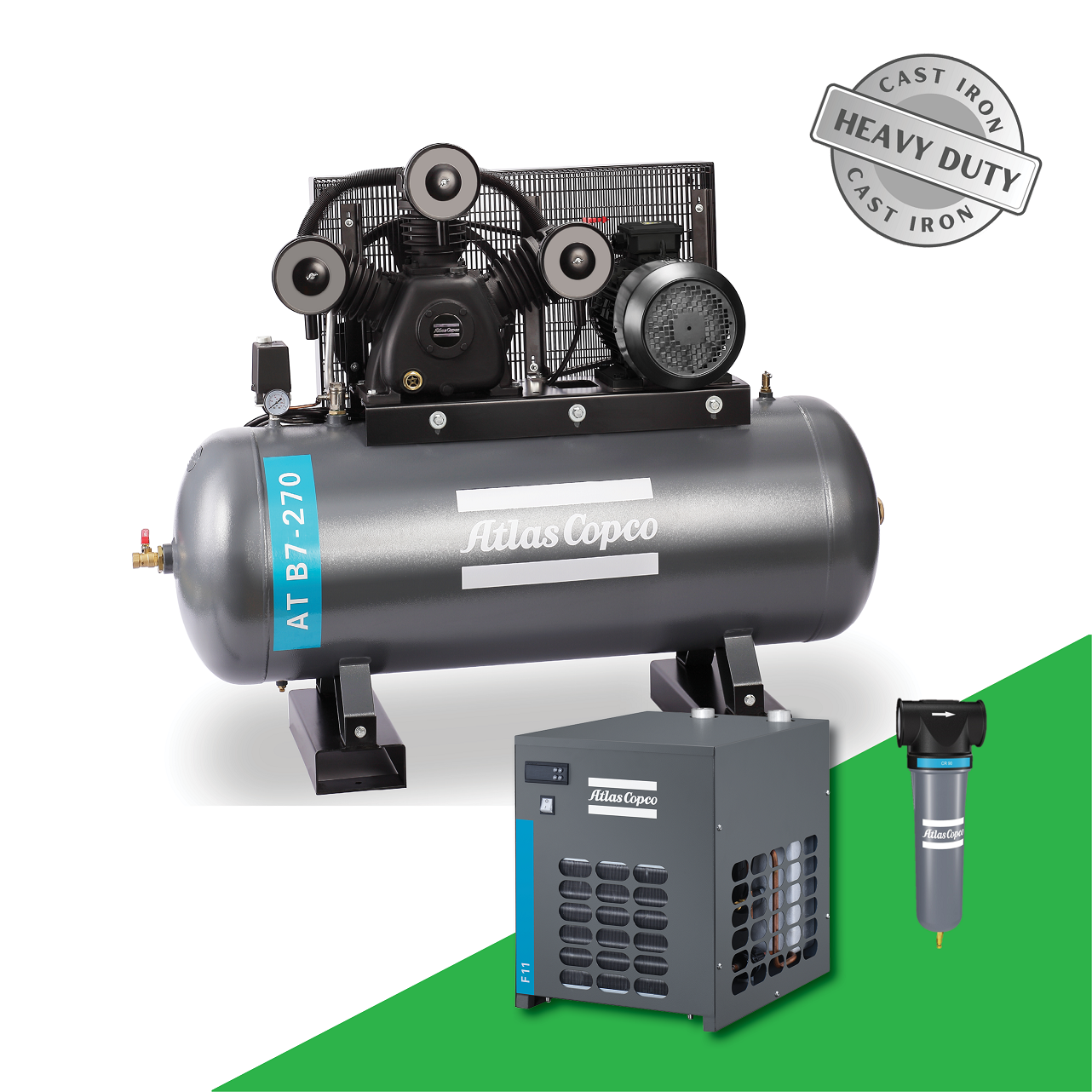

Three Phase Pack Industrial 775 LPM 7.5hp (Compressor 270L Tank+Dryer +Filter) AT B7-270 1129740158-pack

TECHNICAL SPECIFICATIONS

• AT B7-270 - 7.5 hp/5.5 kW Piston
• Part Number: 1129740158
• Model Name: AT B7-270
• Power: 7.5 hp / 5.5 kW (400/3/50)
• Starter / IP: DOL / 55
• MEPS: MEPS/GEMS
• Max Pressure: 10 bar / 145 psi
• Tank Volume: 270 l  (AS1210 Approved Tank)
• Pump Displacement: 1030 l/m / 36.4 cfm
• TRUE Free Air Delivery :  770 l/m / 27.2 cfm  (Tested as per ISO 1217- International Standards Organisation)
• Current Draw: 13.6 amp
• Noise: 77 dB
• Cylinders/Stages 3/1
• Motor Speed: 800 RPM
• Oil: 1 l
• Dimensions (L x W x H)/weight (machine): 1560 x 540 x 1240 / 250 kg
• Dimensions (L x W x H)/weight (package): 1650 x 585 x 1390 / 285 kg

F SERIES DRYER
The compact & efficient dry air solution Atlas Copco F-series refrigerant dryers keep your compressed air system in optimal shape, removing
humidity efficiently and reliably. With a stable pressure dewpoint as low as 7°C, these compact, low-maintenance dryers are compatible with most compressor technologies and applications.

Specifications:-

• Model - F18
• Capacity-18 l/s / 1080 l/m (FAD)
• Supply- 230V/1Ph/50Hz
• Power - 350 W
• Max Pressure- 13 Bar
• Connection -G3/4""

Key Features:-

•  Control panel
• Hot gas bypass valve
• Capillary tube
• Efficient Refrigerant compressor
• Air/air & air/ refrigerant heat exchanger
• Timer drain
• Efficent Refrigerant condenser

PRO FLTER
CR Series - a coalescing filter type, removes contaminants such as liquid water, oil aerosol up to 0.1ppm and particle size down to 1 micron.

Specifications:-

• Model- CR12
• Rated Capacity - 12 l/s (FAD)
• Max Pressure- 16 Bar
• Connection -G3/4""
• ISO class 8573-1 - 2:-:3
• Element service- After 4,000 operating hours or 1 year

Key Features:
 Housing with powder coating to maximize corrosion protection
  Strong and durable zinc plated cylinders
 Float drain automatically expels all captured oil and water (for CR & CF)
 Maximum oil aerosol, wet dust and water droplet filtration and drainage
 Significant energy savings & limited system operating costs
 High reliability
 Easy maintenance


Alternative SKU: Industrial 775 LPM Pack
Alternative SKU: AT-B7-270

Part Number/SKU: 1129740158-pack

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
