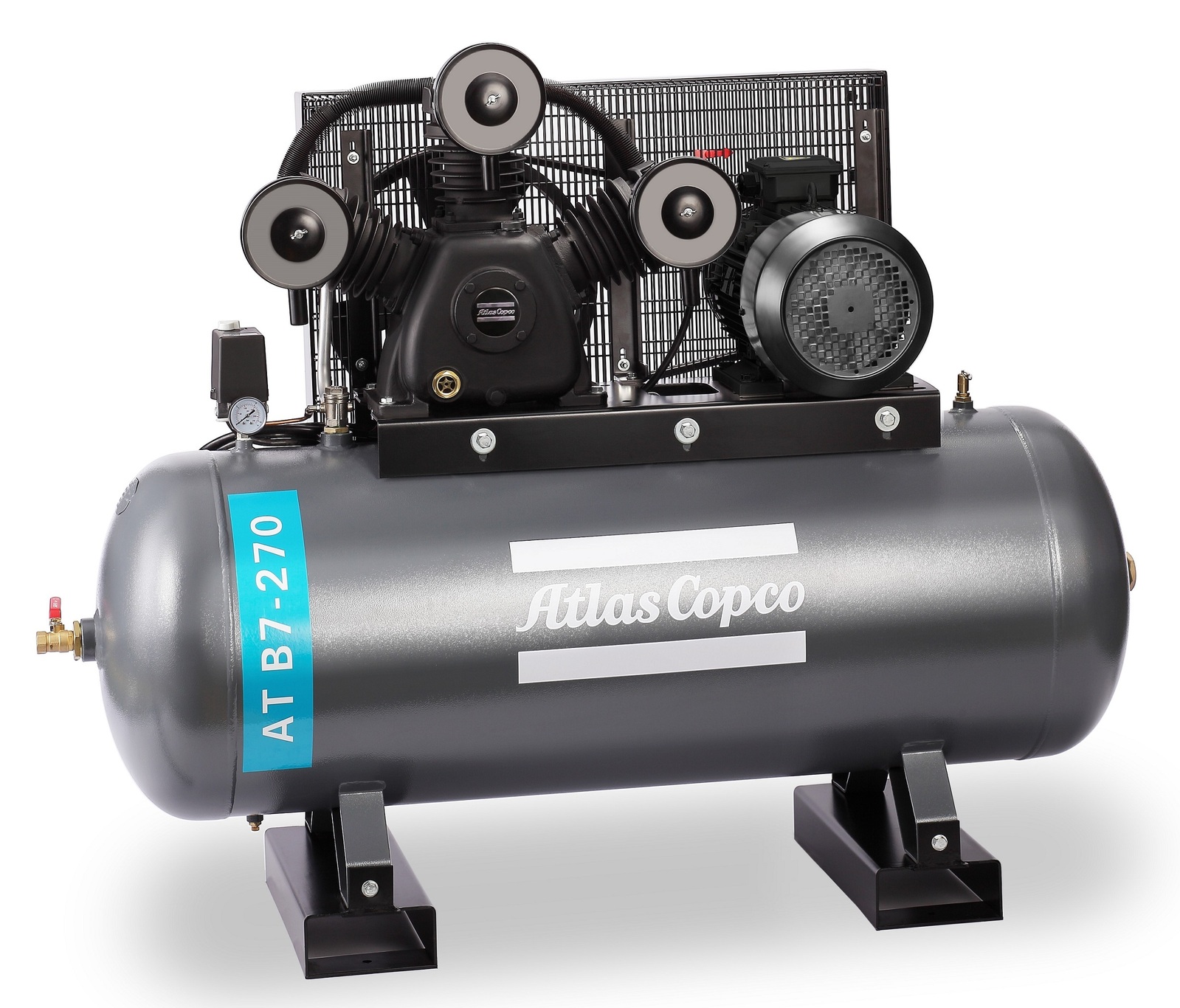

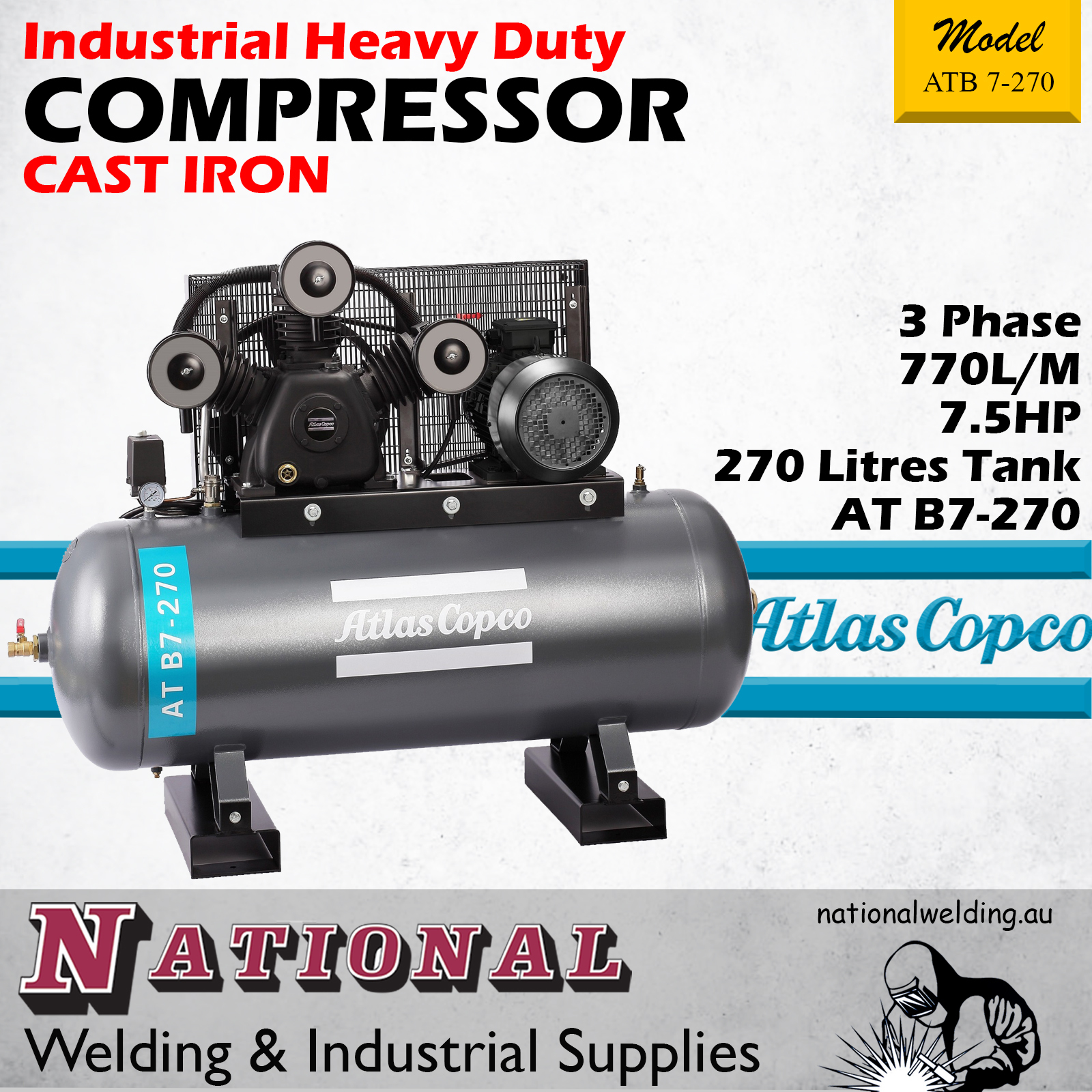

Three Phase Compressor Industrial Heavy Duty Cast Iron Piston FAD 770L/m7.5hp 270 Litre Tank AT B7-270


ATB 7-270 - 7.5hp/5.5kW Piston
Part number:	1129740158
Model name:	ATB 7-270
Power:	7.5hp/5.5kW (400/3/50)
Starter/IP:	DOL/55
MEPS:	MEPS/GEMS
Max pressure:	10 bar/145 psi
Tank volume:	270 L
Pump displacement:	1030 l/m /36.4 cfm
Free air delivery:	770 l/m /27.2 cfm
Current draw:	13.6 amp
Noise:	77 dB
Cylinders/stages:	3/1
Motor speed:	800 RPM
Oil:	1 L
Dimensions (LxWxH)/weight (machine):	1560x540x1240/250 kg
Dimensions (LxWxH)/weight (package):	1650x585x1390/285 kg

Alternative SKU: AT B7-270 AUS 400/3/50

Part Number/SKU: 1129740158

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
