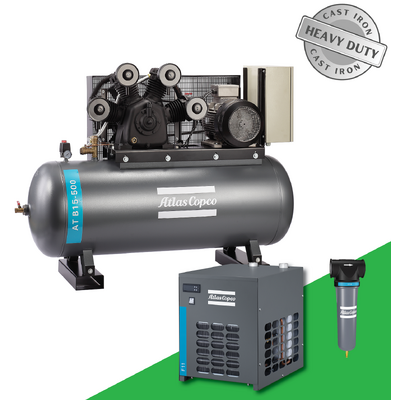

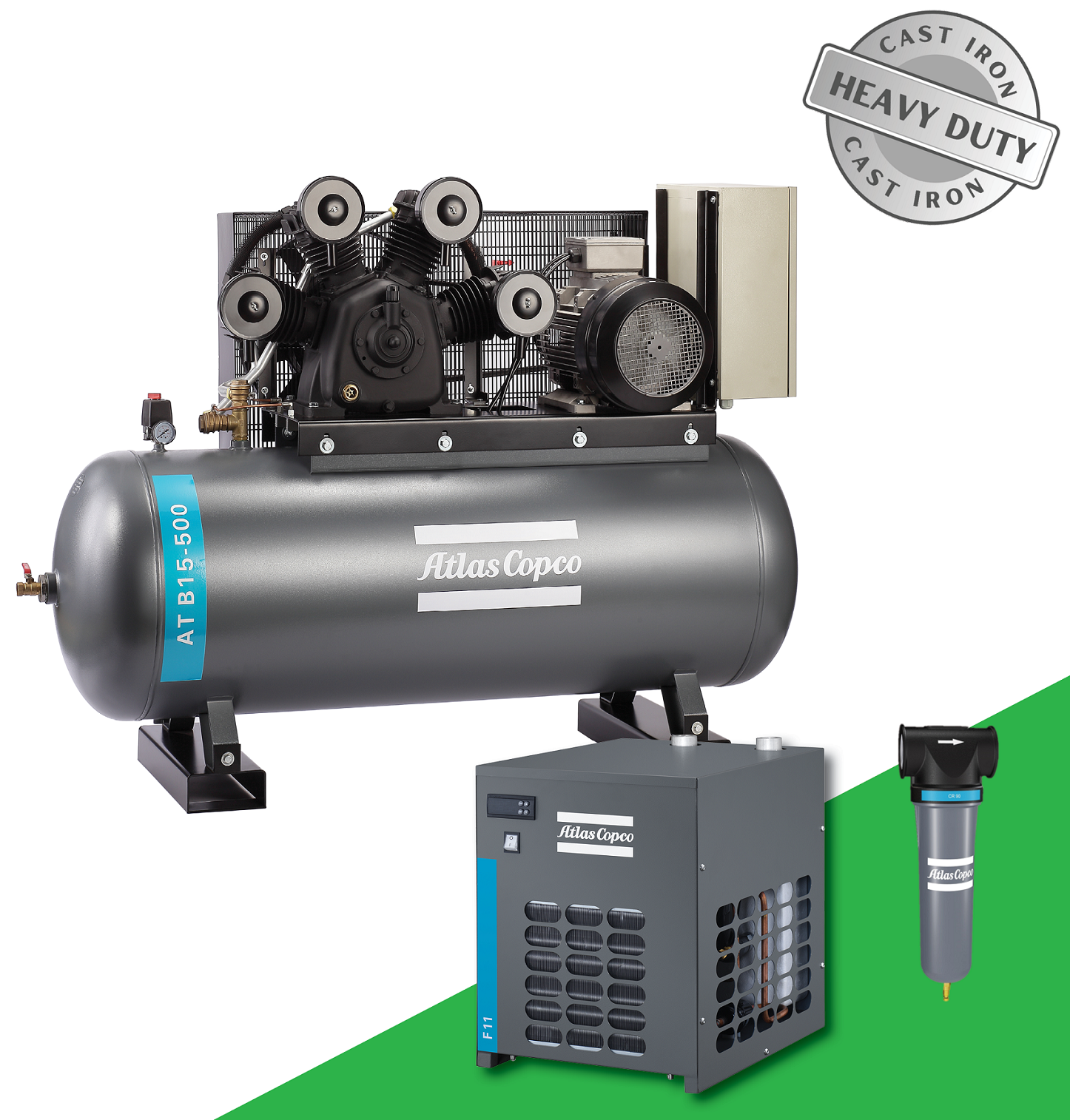

Industrial 1500 LPM 15hp Three Phase Pack (Compressor 500L Tank+Dryer +Filter) AT B15-500 1129740164-pack

TECHNICAL SPECIFICATIONS

• AT B15-500 - 15 hp/11 kW Piston
• Part Number: 1129740164
• Model Name: AT B15-500
• Power: 15 hp / 11 kW (400/3/50)
• Starter / IP: YD / 55
• MEPS: MEPS/GEMS
• Max Pressure: 10 bar / 145 psi
• Tank Volume: 500 l  (AS1210 Approved Tank)
• Pump Displacement: 2082 l/m / 73.5 cfm
• TRUE Free Air Delivery : 1470 l/m / 51.9 cfm  (Tested as per ISO 1217- International Standards Organisation)
• Current Draw: 23.7 amp
• Noise: 78 dB
• Cylinders/Stages 4/1
• Motor Speed: 870 RPM
• Oil: 2 l
• Dimensions (L x W x H)/weight (machine): 2000 x 710 x 1370 / 465 kg
• Dimensions (L x W x H)/weight (package): 2075 x 760 x 1515 / 535 kg

F SERIES DRYER
The compact & efficient dry air solution Atlas Copco F-series refrigerant dryers keep your compressed air system in optimal shape, removing
humidity efficiently and reliably. With a stable pressure dewpoint as low as 7°C, these compact, low-maintenance dryers are compatible with most compressor technologies and applications.

Specifications:-

• Model - F35
• Capacity-35 l/s / 2100 l/m (FAD)
• Supply- 230V/1Ph/50Hz
• Power - 370 W
• Max Pressure- 13 Bar
• Connection -G1""

Key Features:-

•  Control panel
• Hot gas bypass valve
• Capillary tube
• Efficient Refrigerant compressor
•  Air/air & air/ refrigerant heat exchanger
• Timer drain
• Efficent Refrigerant condenser
• PRO FLTER
• CR Series - a coalescing filter type, removes contaminants such as liquid water, oil aerosol up to 0.1ppm and particle size down to 1 micron.

Specifications:-

• Model- CR25
• Rated Capacity - 25 l/s (FAD)
• Max Pressure- 16 Bar
• Connection -G3/4""
• ISO class 8573-1 - 2:-:3
• Element service- After 4,000 operating hours or 1 year

Key Features:

•  Housing with powder coating to maximize corrosion protection
•   Strong and durable zinc plated cylinders
•  Float drain automatically expels all captured oil and water (for CR & CF)
•  Maximum oil aerosol, wet dust and water droplet filtration and drainage
•  Significant energy savings & limited system operating costs
•  High reliability
•  Easy maintenance"



Alternative SKU: Industrial 1500 LPM Pack

Part Number/SKU: 1129740164-pack

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
