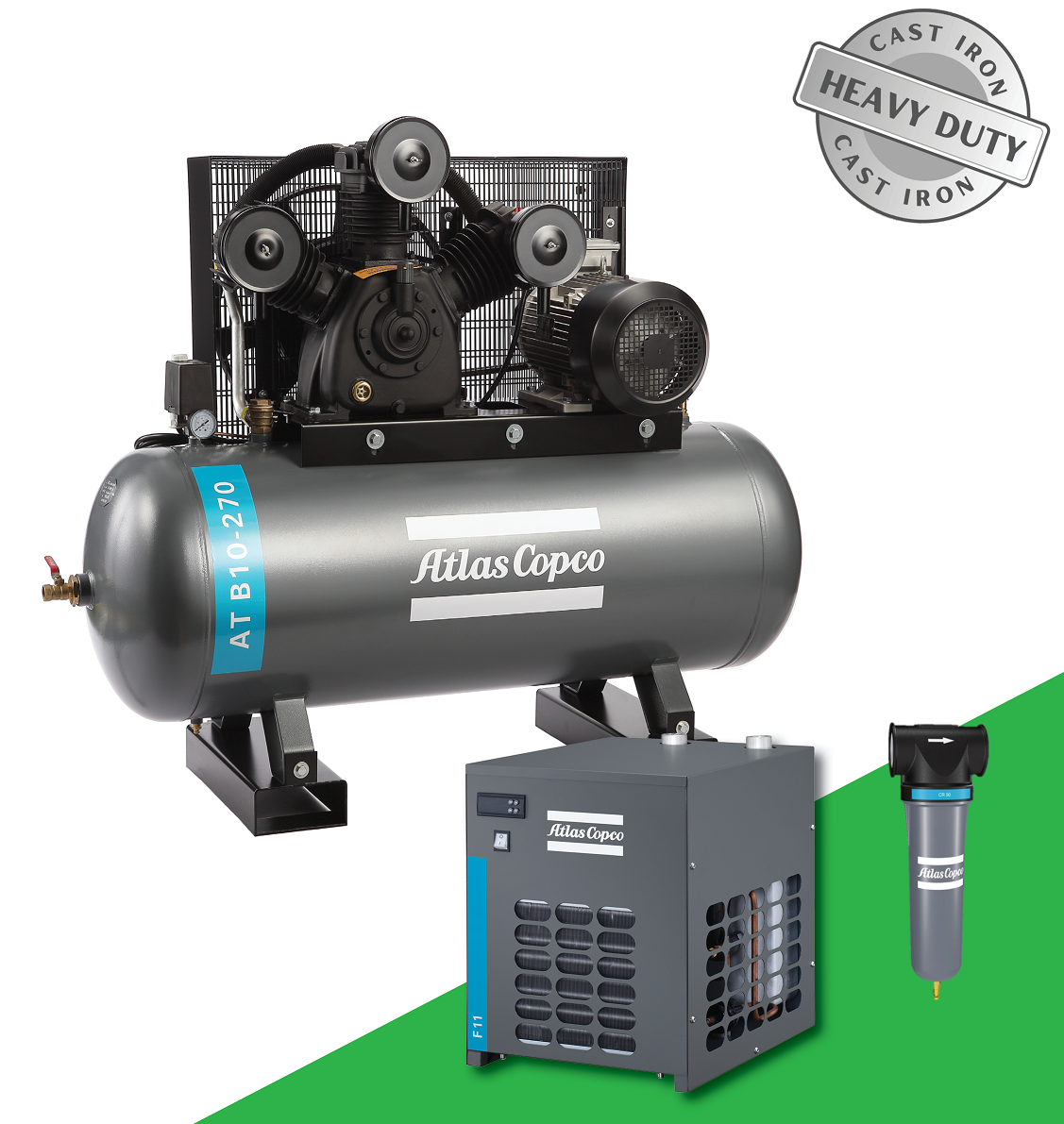

Three Phase Pack Industrial 1020 LPM 10hp (Compressor 270Litre Tank+Dryer +Filter) AT B10-270 1129740161-pack
TECHNICAL SPECIFICATIONS
- AT B10-270 - 10 hp/7.5 kW Piston
- Part Number: 1129740161
- Model Name: AT B10-270
- Power: 10 hp / 7.5 kW (400/3/50)
- Starter / IP: DOL / 55
- MEPS: MEPS/GEMS
- Max Pressure: 10 bar / 145 psi
- Tank Volume: 270 l (AS1210 Approved Tank)
- Pump Displacement: 1470 l/m / 51.9 cfm
- TRUE Free Air Delivery : 1020 l/m / 36 cfm (Tested as per ISO 1217- International Standards Organisation)
- Current Draw: 15.4 amp
- Noise: 77 dB
- Cylinders/Stages 3/1
- Motor Speed: 810 RPM
- Oil: 1.45 l
- Dimensions (L x W x H)/weight (machine): 1560 x 640 x 1280 / 290 kg
- Dimensions (L x W x H)/weight (package): 1650 x 700 x 1390 / 350 kg
F SERIES DRYER
- The compact & efficient dry air solution Atlas Copco F-series refrigerant dryers keep your compressed air system in optimal shape, removing
- humidity efficiently and reliably. With a stable pressure dewpoint as low as 7°C, these compact, low-maintenance dryers are compatible with most compressor technologies and applications.
Specifications:-
- Model - F25
- Capacity-25 l/s / 1150 l/m (FAD)
- Supply- 230V/1Ph/50Hz
- Power - 360 W
- Max Pressure- 13 Bar
- Connection -G3/4""
Key Features:-
- Control panel
- Hot gas bypass valve
- Capillary tube
- Efficient Refrigerant compressor
- Air/air & air/ refrigerant heat exchanger
- Timer drain
- Efficent Refrigerant condenser
- Control panel
- Hot gas bypass valve
- Capillary tube
- Efficient Refrigerant compressor
- Air/air & air/ refrigerant heat exchanger
- Timer drain
- Efficent Refrigerant condenser
PRO FLTER
CR Series - a coalescing filter type, removes contaminants such as liquid water, oil aerosol up to 0.1ppm and particle size down to 1 micron.
Specifications:-
- Model- CR25
- Rated Capacity - 25 l/s (FAD)
- Max Pressure- 16 Bar
- Connection -G3/4""
- ISO class 8573-1 - 2:-:3
- Element service- After 4,000 operating hours or 1 year
Key Features:
- Housing with powder coating to maximize corrosion protection
- Strong and durable zinc plated cylinders
- Float drain automatically expels all captured oil and water (for CR & CF)
- Maximum oil aerosol, wet dust and water droplet filtration and drainage
- Significant energy savings & limited system operating costs
- High reliability
- Easy maintenance
Part Number/SKU: 1129740161-pack
* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
SKU | 1129740161-pack |
Brand | Atlas Copco |
Shipping Weight | 290.0000kg |
Shipping Width | 0.700m |
Shipping Height | 1.200m |
Shipping Length | 1.500m |
Shipping Cubic | 1.260000000m3 |
Unit Of Measure | Pk |
