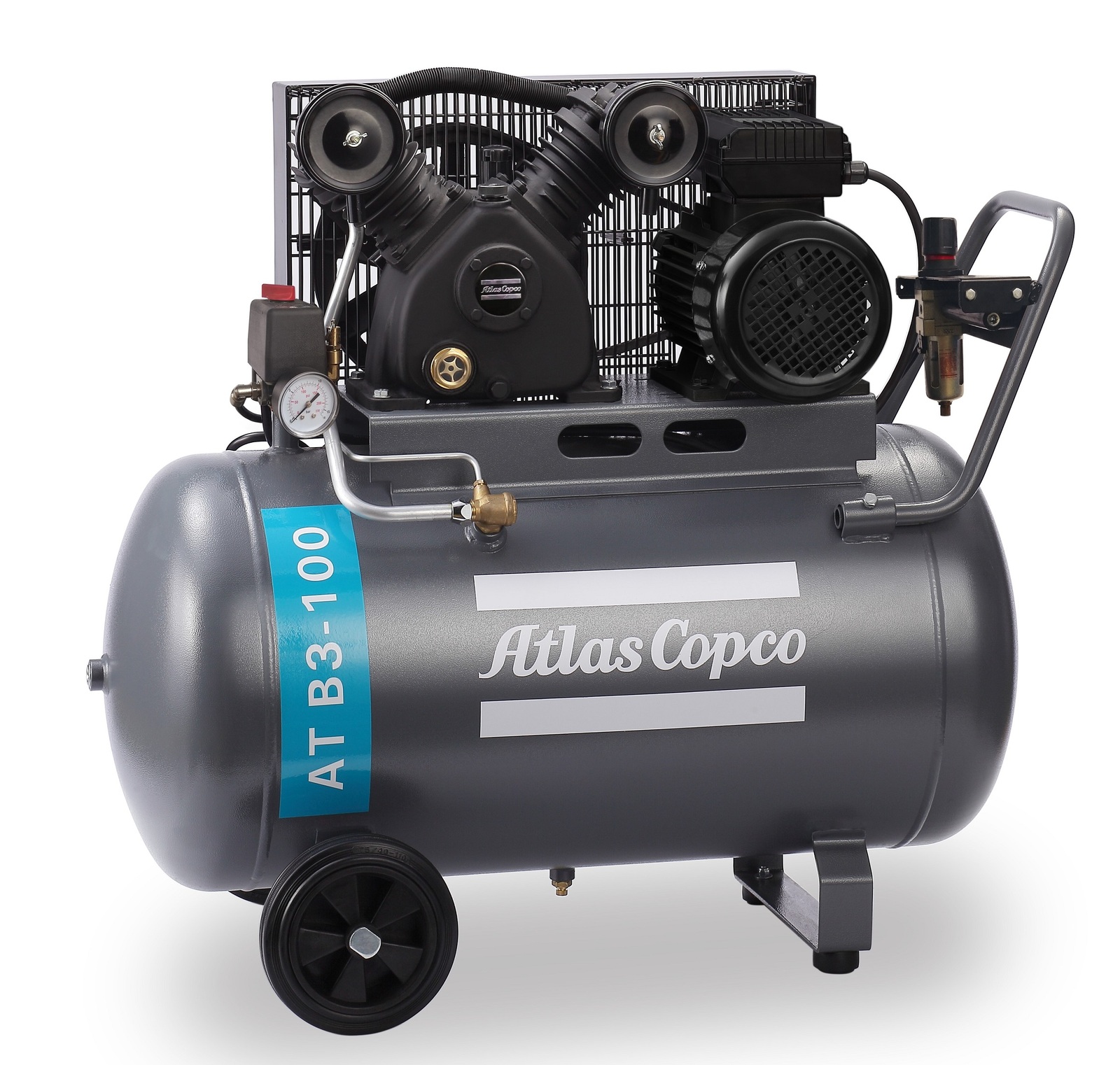

Industrial 1 Phase 300L/m 3hp 100 litres Tank Compressor AT B3-100 Heavy Duty Cast Iron

TECHNICAL SPECIFICATIONS

• AT B3-100 - 3 hp/2.2 kW Piston
• Part Number: 1129740177
• Model Name: AT B3-100
• Power: 3 hp / 2.2 kW (240/1/50)
• Starter / IP: DOL / 54
• MEPS: not appl.
• Max Pressure: 10 bar / 145 psi
• Tank Volume: 100 l  (AS1210 Approved Tank)
• Pump Displacement: 400 l/m / 14.1 cfm
• TRUE Free Air Delivery :  290 l/m / 10.2 cfm (Tested as per ACACA Protocol™ 2000  -Australian Commercial Air Compressor Association)
• Current Draw: 15 amp
• Noise: 73 dB
• Cylinders/Stages 2/1
• Motor Speed: 1000 RPM
• Oil: 0.46 l
• Dimensions (L x W x H)/weight (machine): 920 x 510 x 840 / 93 kg
• Dimensions (L x W x H)/weight (package): 936 x 430 x 1045 / 100 kg


Alternative SKU: AT B3-100 AUS (230/1/50)

Part Number/SKU: 1129740177

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
