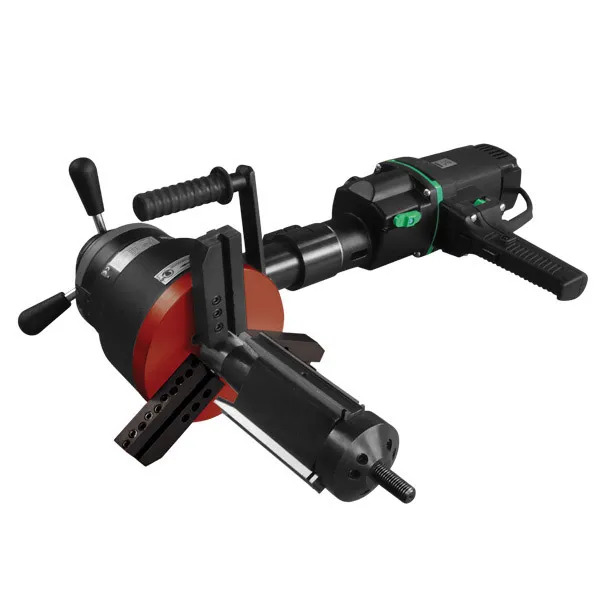

Pipe Beveller PRO10  240V Electric Motor 1.8kw Cap 84mm ID 273mm OD ITM WA-PRO10PBA

The ITM PRO 10 PB is a European made I.D. mounted portable pipe bevelling machine. Although it is a large capacity heavy duty machine, it can be used efficiently by a single operator, weighing in at a total of just 31.5kg.
The self-centring expandable mandrels provide quick and correct alignment to pipe.
The PRO 10 PB can simultaneously perform 3 of the following operations – internal bevel, external bevel, J-groove bevel, face off, I.D. chamfer and counterbore. Whilst the machine can be operated with just 1 cutting insert, optimal results are achieved by using 3 cutting inserts at once.
The PRO10PBE is powered by a high torque electric motor while the PRO10PBA is powered by a pneumatic motor.
PACKAGE INCLUDES:

  • PRO 10 PB Bevelling Machine
  • Electric motor
  • Mandrel for pipe 84mm I.D. to 269mm I.D.
  • Jaw block set no. 1 to 6
  • Toolbox & tools
  • Coolant bottle


Part Number/SKU: WA-PRO10PBE

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU WA-PRO10PBE
Brand ITM
Shipping Weight 38.0000kg
Shipping Width 0.700m
Shipping Height 0.550m
Shipping Length 0.750m
Shipping Cubic 0.288750000m3
Unit Of Measure ea
