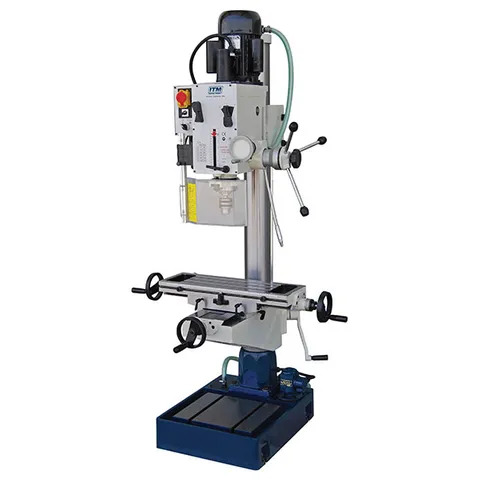

Geared Head Mill Drill With Coolant 4mt 415v 3 Phase ITM TGMD400-3

FEATURES
Quality precision machine for drilling, milling & tapping.
No. 4 Morse taper spindle.
1120W motor, three phase.
Micro feed precision.
Geared head tilts 90° right & left.
Forward and reverse operation.
Recirculating coolant system.
Accessories include arbor, with drawbar thread M16 x 2.0, milling chuck, 16mm drill chuck, drill sleeves
SPECIFICATIONS
Max Drilling Capacity: 40mm
Spindle Taper: MT4
Spindle Nose To Base: 1180mm
Spindle Nose To Table: 610mm
Spindle To Column: 272.5mm
Diameter Of Column: 115mm
Quill Travel: 120mm
Swing: 660mm
Spindle Speeds (rpm): 75, 170, 280, 540, 960, 1600
Table Surface: 600 x 190mm
Cross Travel: 190mm
Longitude Travel: 370mm
Overall Height: 1770mm
Base Dimensions: 650 x 450mm
T -Slot Size: 12mm
N.W. / G.W.: 340 / 390kg
Shipping Dimensions: 820 x 720 x 1830mm




Part Number/SKU: TGMD400-3

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU TGMD400-3
Brand ITM
Shipping Weight 400.0000kg
Shipping Width 0.850m
Shipping Height 1.850m
Shipping Length 0.800m
Shipping Cubic 1.258000000m3
Unit Of Measure ea
