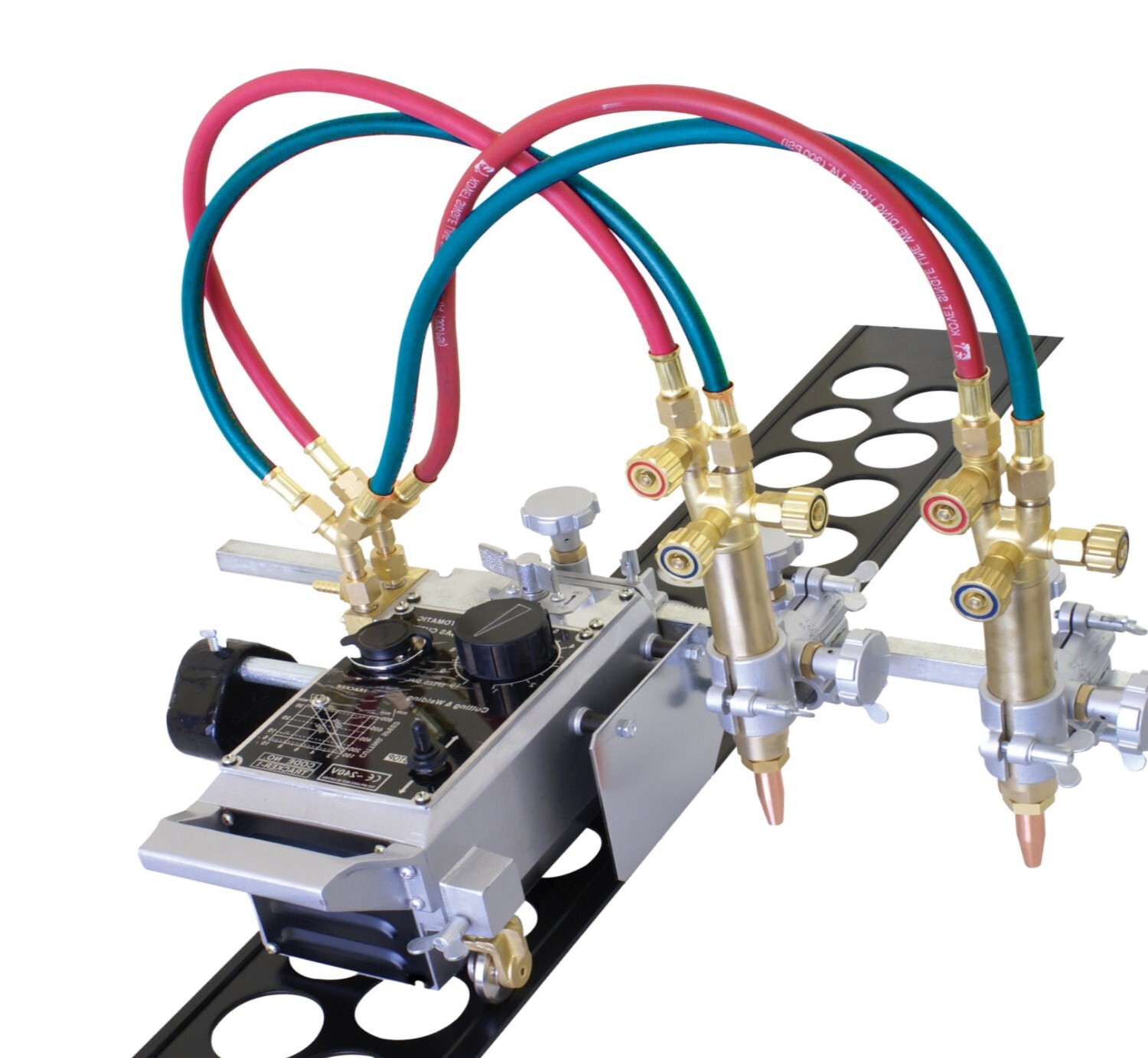

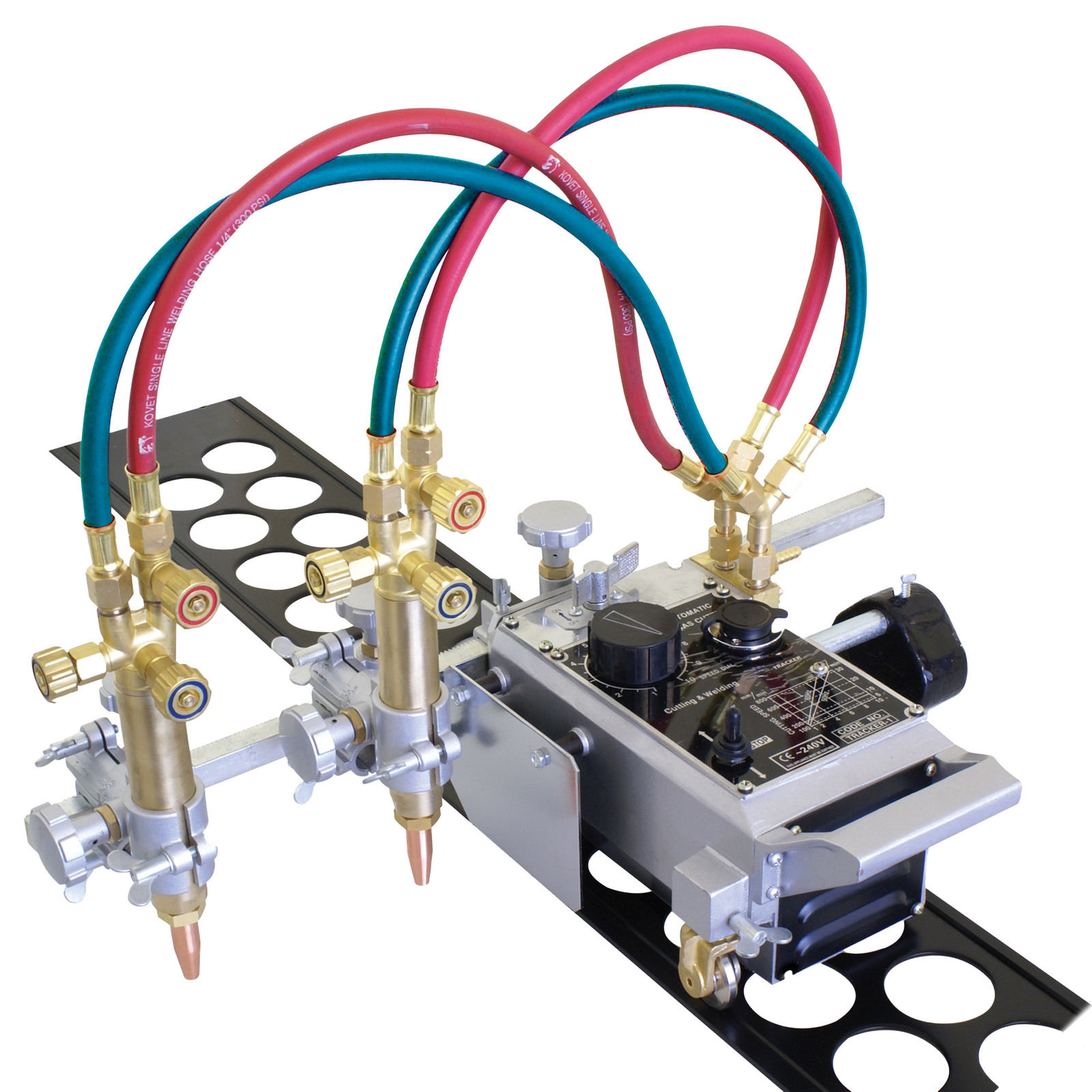

CG30-DOUBLE Double Head Straight Line Gas Cutting Machine

Features & Benefits

  • Single or Dual Torch Models - Performs high quality straight, circle and bevel cuts; single model includes 1 torch and 3 tips; dual model includes 2 torches and 6 tips; both include 1800mm (72in) rail
  • Stepless Drive System -  Maintains constant travel speed even with high temperatures ensuring stable, trouble-free cutting
  • Multiple Use Oxy Fuel Machine - Performs straight line and optional circle oxy fuel cutting
  • Light Weight - 9.5 kgs (20.9 lbs), easy to carry and use yet rugged enough to be a true workhorse
  • Use on Radiagraph Track - Possible replacement for discontinued Radiagraph; user can use existing track
  • Extendable 1800mm (72in) Track Sections - Cut longer parts. 2 more pcs 1800mm tracks are recommended per set machine.
  • High Quality Tips - Superior design torch tips are included to ensure fast, smooth cuts
  • Optional Snap Valve - One-touch on/off gas valve

Part Number/SKU: CG30-Double

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

CG-30 TWIN

Model CG-30-TWIN
Cutting Capacity: 5 to 60 mm
Bevels: 0o to 45o
Straight Cuts: 1.8 m and multiples
Circle Cutting (Diameter): 30 to 2400 mm
Cutting Speed: 180 to 800 mm/min (50HZ)
100 to1000 mm/min (60HZ)
Torch: Injector Type to suit Acetylene / LPG
Gas Connection (Fuel LH & Oxygen RH): 1/4" G,91/6o
Gross Weight: 10 kgs w/1 torch.
14.5kgs w/2 torches
Dimensions W/O rail (m): 350x140x175




















SKU CG30-Double
Brand Unimig Razorweld
Shipping Weight 35.0000kg
Shipping Width 0.500m
Shipping Height 1.000m
Shipping Length 0.500m
Shipping Cubic 0.250000000m3
Unit Of Measure ea
