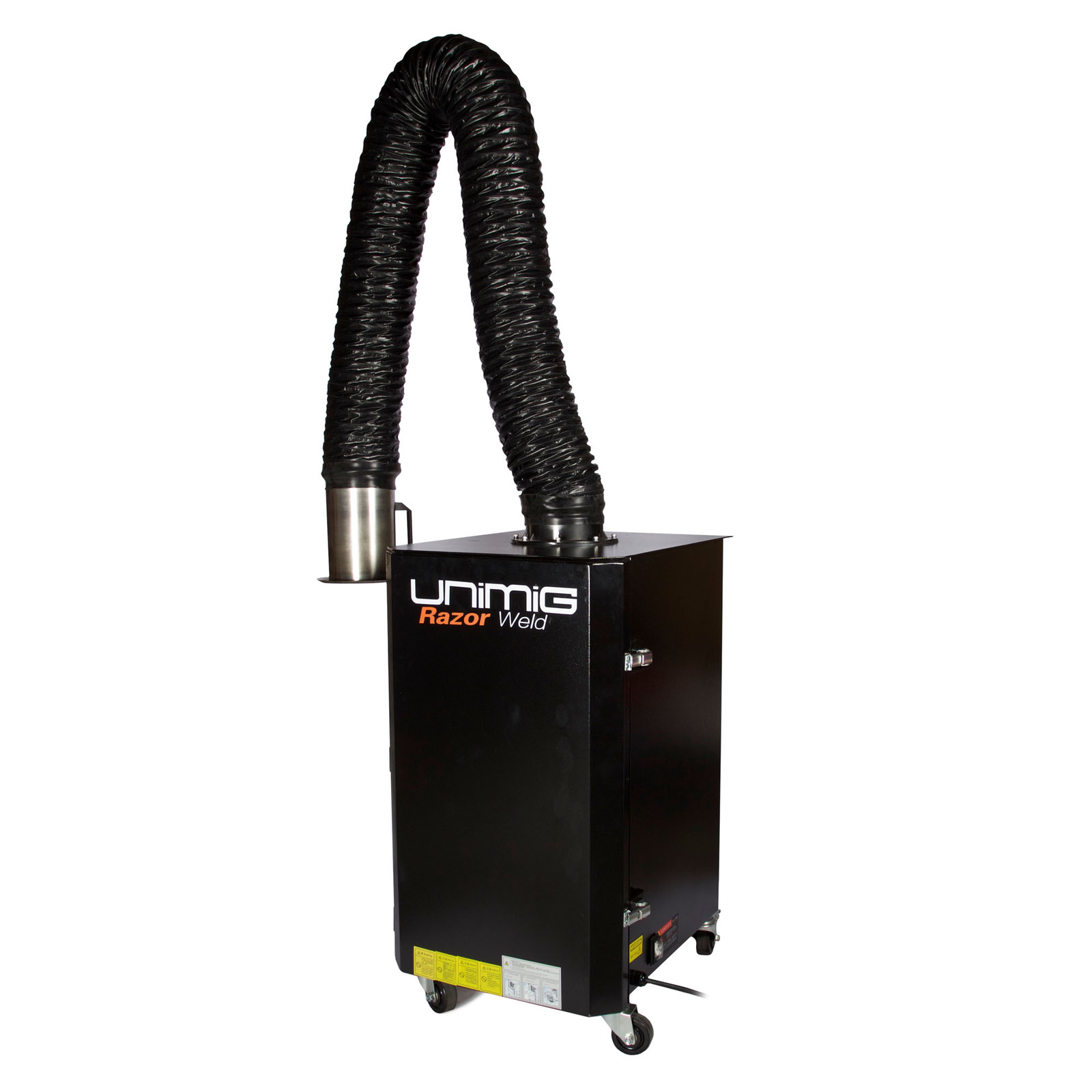

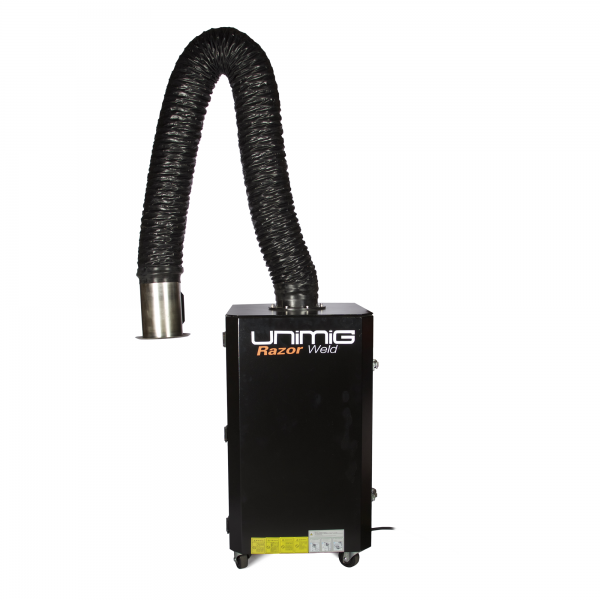

Fume Extraction Single Arm 240V Unimig KSJ-0.7S

The KSJ-0.7S is an economical compact mobile single arm 240 volt (10amp) fume extraction unit capable of filtering an area of up to 8 square metres. The unit is constructed from high quality sheet metal and is easily manoeuvrable due to its 4 heavy duty lockable caster wheels. The machine is suited for the purification of fumes and dust generated by welding and grinding. The suction arm is easily rotatable 360 degrees and can be put in place by easily pulling the handle on the hood to the desired work area.

SPECIFICATIONS

 Part Number  KSJ-0.7S
 Air Volume  2000 ± 100m3/h
 Air Suction Arm  1000m3/h
 Motor Power  0.75kW
 Working Voltage  240V/50Hz 1 Phase
 Filtering Area  8m2
 Cleaning Way  Automatic / Manual Cleaning
 Maximum Pressure  1900Pa
 Compressed Air  0.5 - 0.6MPa
 Filtration Efficiency  >99.8%
 Noise Level  <74 ± 5dB(A)
 Dimension (mm)  510 x 610 x 999
 Weight (Kgs)  98 ± 5




Part Number/SKU: KSJ-0.7S

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU KSJ-0.7S
Brand Unimig
Shipping Weight 110.0000kg
Shipping Width 1.200m
Shipping Height 1.800m
Shipping Length 1.200m
Shipping Cubic 2.592000000m3
Unit Of Measure ea
