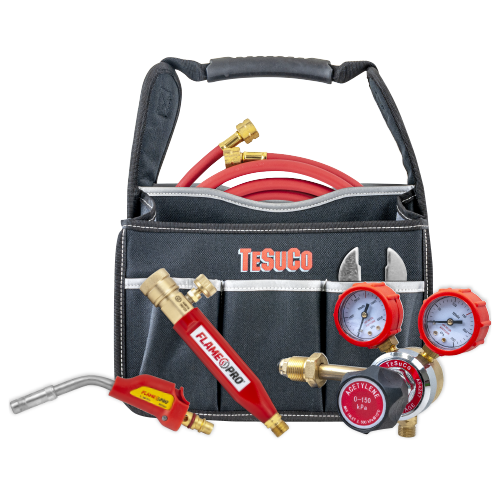

FlamePro Acetylene Torch Kit Complete Tesuko GBTAK

Tesuco offers the Flame Pro™ Air Acetylene heating and brazing kit for fast  soldering and brazing applications in the HVAC-R & Plumbing industries.

Designed to be used with acetylene cylinders the handle has a quick connect to fit the swirl flame auto ignite tip attachment eliminating the need for a spark lighter. Push button ignition saves time and fuel cost. Swirl flame tips produce a very hot efficient flame by mixing acetylene and air completely through a helical blade.



Kit Include:

  • Acetylene Hose 4m (GWSWA4)
  • Tesuko Tool BAg (GTB1)
  • Combination Spanner(GWS)
  • Acetylene Regulator(RC1SAC1.5)
  • Spare Tip Available(GBTAN12)
  • Flame Pro Air Acetylene Auto Ignite Attachment With Size 12 Swirl Flame Tip(GBTAIA)
  • Flame Pro Air Acetylene Quick Connect Handle (GBTA)

FEATURES

  •  Quick connect tip attachment
  •  Swirl flame heat technology
  • Push button auto ignition
  •  Ergonomically designe

SPECIFICATIONS

Standards

  • Regulator :AS 4267-1995 R2016
  • Hose : AS/NZS 1335:2020
  • Handle and tip :ISO 9012:2008

Regulator RC1SAC1.5

  • Flow rate :28.5 m³/hr
  • Inlet configuration :Side
  • Maximum inlet pressure :3,000 kPa
  • Maximum outlet pressure :150 kPa
  • Inlet connection :Type 20
  • Outlet connection :5/8"-18 UNF LH Male

Flame Pro™ Handle:GBTA

  • Maximum inlet pressure :150 kPa
  • inlet connection :5/8"-18 UNF LH Male
  • Outlet connection :Quick connect female


Flame Pro

  • Auto Ignite Attachment :GBTAIA
  • Flow rate :0.27 m³/hr
  • Operating pressure :100 kPa (15 PSI,1 BAR)
  • Inlet connection :Quick connect male baynot

Hose

  • Length :4 m
  • Inlet connection : 5/8"-18 UNF LH
  • Outlet connection : 5/8"-18 UNF LH
  • Rating :2 Mpa (2,000 kPa)
  • Size :5 mm ID

Part Number/SKU: GBTAK

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU GBTAK
Brand Tesuco
Shipping Weight 2.0000kg
Shipping Width 0.300m
Shipping Height 0.500m
Shipping Length 0.400m
Shipping Cubic 0.060000000m3
