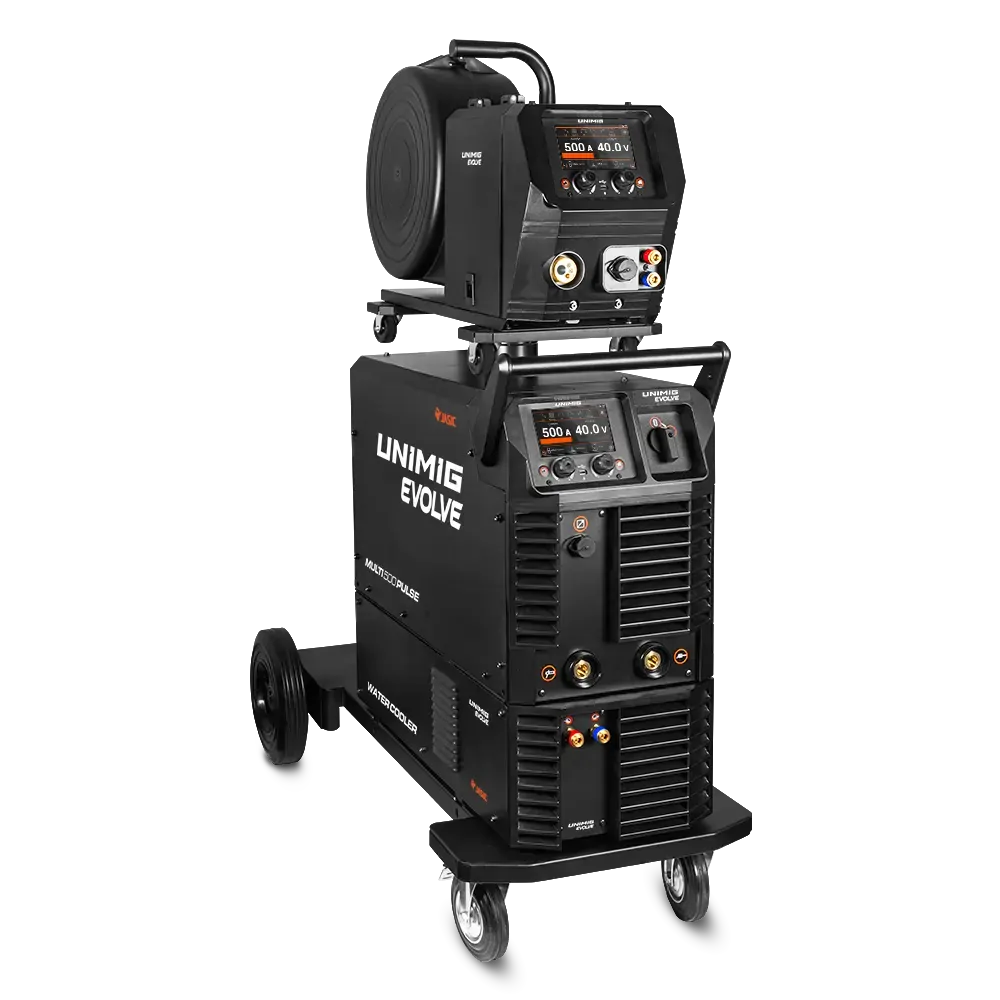

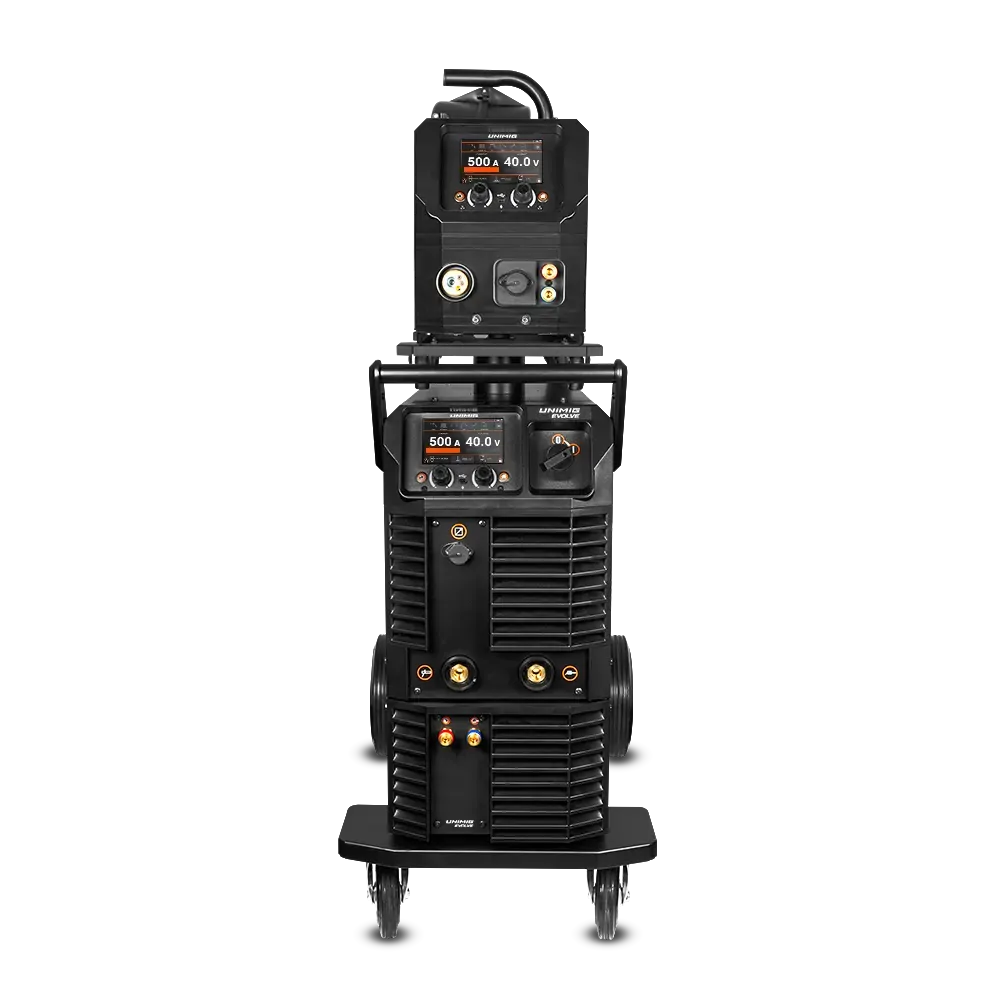

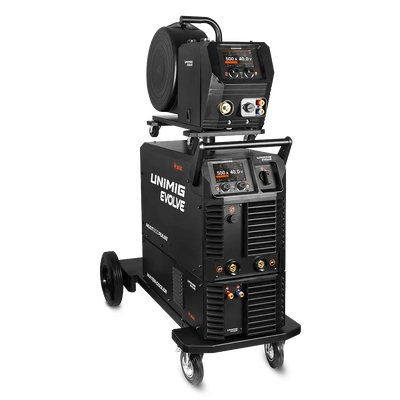

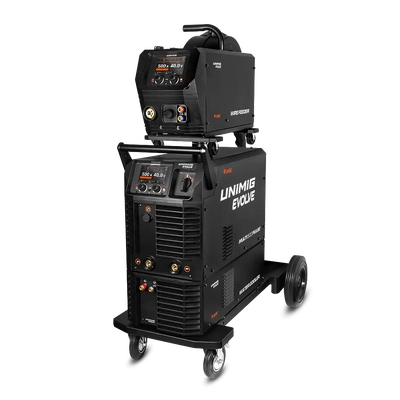

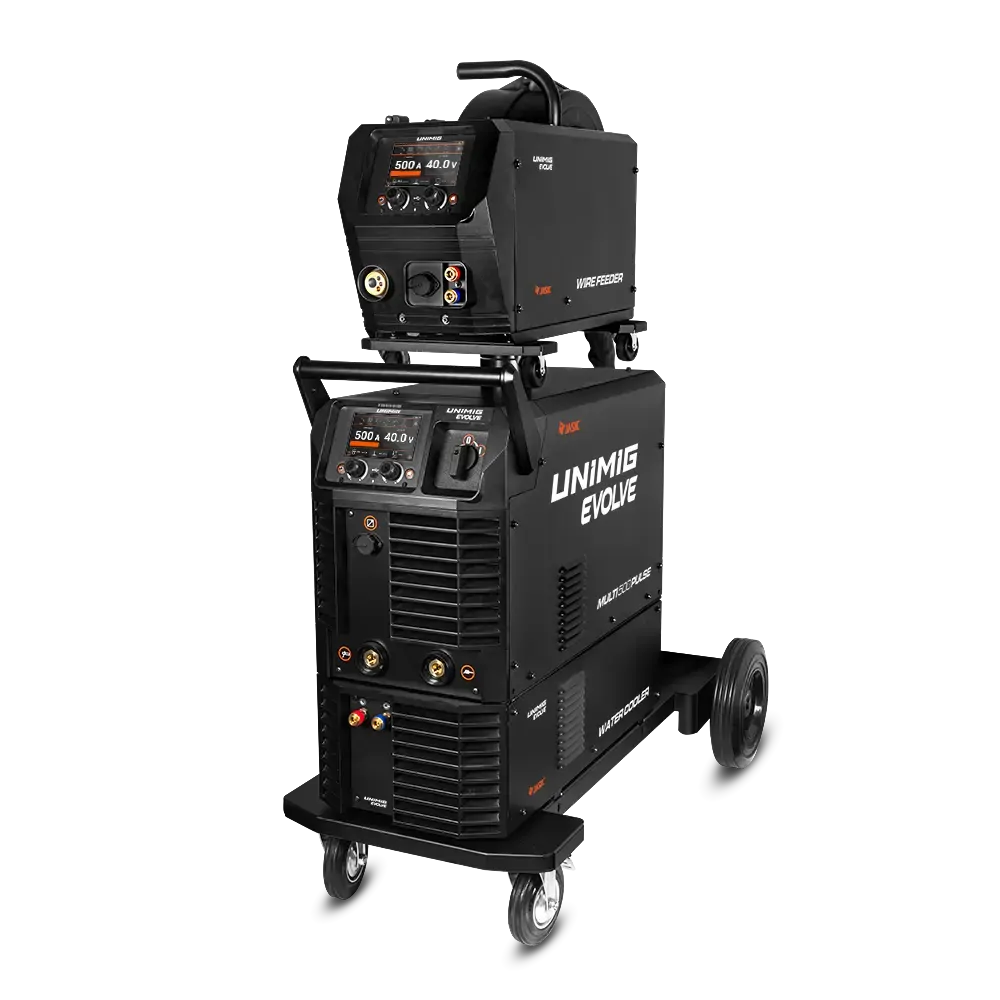

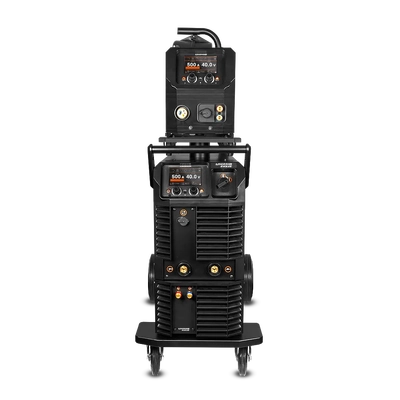

Evolve Multi 500 Pulse Bundle Unimig PK11122

DESCRIPTION:

Packed with revolutionary technologies, future-proof your workshop with our all-new Evolve Multi 500 Pulse.

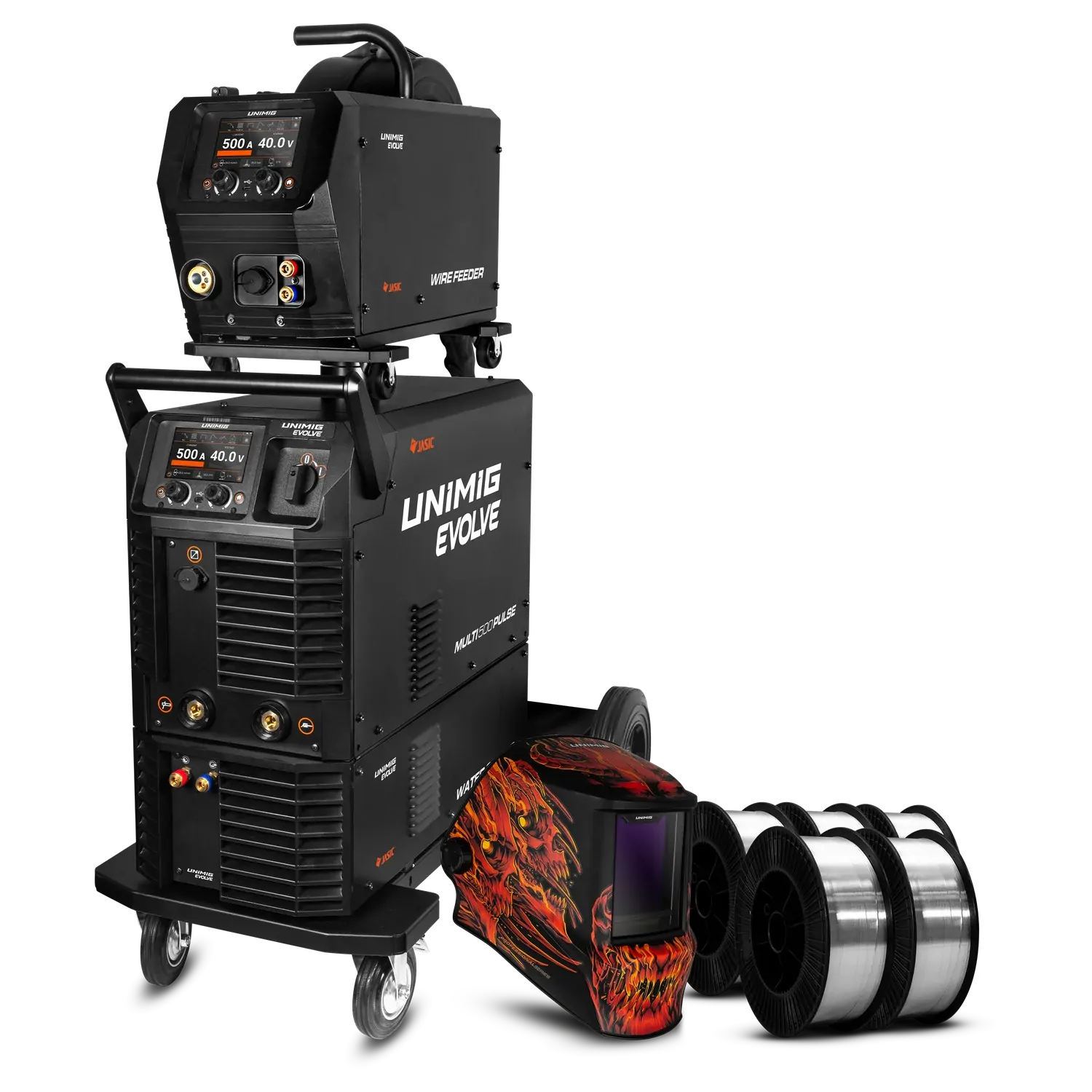

IN THE BOX:

• EVOLVE MULTI 500 PULSE WITH M580W, SWF MODULE AND WATER COOLED TROLLEY (U11142)
• 5 x HYPERMIG 5356 ALUMINIUM MIG WIRE PREMIUM 1.2MM 7KG (U11163)
• WELDING HELMET PROFESSIONAL SERIES DEMON (U21018)

FEATURES:

• Not All Pulse Machines Are Equal: Less spatter. Lower heat. Smoother results. Streamline your welds with the single and double pulse functions.
• Single Pulse: A single pulse weld alternates between a peak and base current, which works to minimise the amount of heat input without compromising on say of the penetration. The addition of a base current and reduction in heat means it's perfect for softer materials like aluminium. Pulse welding is also done by spray transfer, eliminating spatter and cutting your post-weld clean-up time.
• Double Pulse: A double pulse weld alternates between a peak current and two base currents, reducing the heat input of the weld even further than a single pulse, while still maintaining all of the benefits. Because of the faster freezing puddle, your double pulse welds come out looking just like a stack of dimes. You get the aesthetics of a TIG weld with all the speed of spray.
• 100+ Smart-Set MIG Programs: Getting set up for a weld has never been faster with over 100 synergic programs. Simply select your metal type, wire size, gas type and material thickness, and the machine does the rest. It'll pick the optimal settings for your weld.
• Modular Add-Ons: The EVOLVE MULTI 500 PULSE is built to expand as your work demands. Add an optional AC and DC TIG module whenever you need it, giving you the freedom to grow your capability over time.
• Separate Wire Feeder: Gain the freedom to work further from the power source. The separate wire feeder gives you an extra 10 metres of reach, making it easier to move around larger jobs, awkward spaces or workpieces that cannot be brought to the machine.
• Hot Start: Get the smoothest arc start possible. The Hot Start function gives a boost of current at the beginning of your weld, eliminating any issues with starting on cold metal, letting you weld on thicker materials and making welding aluminium even easier.
• Crater Fill: End your welds as strong as they started. Crater Fill ramps your welding current and voltage down at the end of a weld, filling it in at a lower amperage, eliminating craters and pinholes.
• Push-Pull Ready: Run soft wires with confidence. The system supports a push-pull torch with a built-in pull motor that assists the main drive, keeping aluminium and other soft wires feeding smoothly over longer distances. You get stable wire delivery and more freedom to move while welding.
• Longer Torch Consumable Life: Get superior life out of every torch consumable. Designed for maximum performance, you’ll get 6x longer life with Arc Torchology consumables.
• Contact Tip Performance: The Arc Torchology contact tips lasted up to 6x longer, withstanding the maximum amperage for 30 hours vs the Binzel 501D's 5 hours.
• Gas Nozzle Performance: The Arc Torchology gas nozzles lasted up to 3x longer, withstanding the maximum amperage for 75 hours vs the Binzel 501D's 25 hours.
• Tip Adapter Performance: The Arc Torchology tip adapters lasted up to 5x longer, withstanding the maximum amperage for 250 hours vs the Binzel 501D's 50 hours.
• Cooler Running Torches: The Arc Torchology tip adapters lasted up to 5x longer, withstanding the maximum amperage for 250 hours vs the Binzel 501D's 50 hours.
• Less Maintenance & Downtime: Spend less time cleaning your consumables and have them last longer with 90% less spatter adhesion.
• Contact Tip Performance: The Arc Torchology contact tips had 90% less spatter adhesion on the tip's face, with only 9% spatter vs the Binzel 501D's 100%.
• Gas Nozzle Performance: The Arc Torchology gas nozzle had 33% less spatter adhesion on the nozzle's face, with only 67% spatter vs the Binzel 501D's 100%.
• Power Factor Correction (PFC): Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.
• Advanced IGBT Inverter Technology: Our IGBT inverter platform delivers higher efficiency, stronger arc stability and more consistent power delivery. It runs cooler, responds faster to changes in arc demand and provides the reliability needed for modern welding applications.
• 4 Geared Wire Feed System: Built for stability and control. The four geared mechanism increases drive force and keeps wire delivery steady, even when you are using extended torch lengths.
• IP21S Protection Rating: Rated IP21S for consistent performance in standard workshop conditions. A dependable level of protection suited to everyday welding environments.
• Advanced MMA Features: Advanced MMA features are designed for improving weld quality and ease of use.
• Arc Force: The Arc Force feature helps to keep the arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking.
• Hot Start: The adjustable hot start is designed to help with striking an arc. The hot start temporarily boosts the output current at the start, making striking an arc, even with difficult electrodes, much easier. You get smoother arc starts, improving the quality of your weld.
• Anti-Stick: The adjustable hot start is designed to help with striking an arc. The hot start temporarily boosts the output current at the start, making striking an arc, even with difficult electrodes, much easier. You get smoother arc starts, improving the quality of your weld.
• Job Memory: Save all of your favourite settings with the Job Memory feature. With up to 100 saves available, you’ll never need to memorise your parameters again. Plus, seamlessly switch between different jobs with the touch of a button.
• Digital Control Torch: Our digital MIG torch lets you adjust settings on the fly. Change the amps, current and voltage at the touch of a torch button.
• Large Wire Spool Capacity: Fits both D200 and D300 wire spools, so you can put 15kg mild steel or 7kg aluminium spools in the machine.
• Robotics Connection: The robot connection lets you integrate a robotic arm into your workflow, which can improve the precision, consistency, and efficiency across welding tasks. It allows for automated, repeatable welds, reducing human error and improving productivity.
• CO2 Preheater: Plug Connect a preheater for your CO2 regulator with the preheater plug to prevent it from freezing during prolonged use. Keeping the gas heated allows a consistent gas flow and stops fluctuations or reductions in the gas flow.
• Adjustable Arc Length: Get absolute precision on your settings. The adjustable arc length allows you to increase or decrease the preselected voltage while in synergic and pulse MIG modes.
• Inductance Control: Take complete control of your arc with the inductance settings. By changing the frequency of your short circuit MIG welds with the Inductance controls, you can choose your preferred arc characteristics on every weld.
• Burnback Adjustment: Stop your wire from ever fusing with your weld or your contact tips again. Tune your burnback control to suit how much wire you want to remain sticking out from your torch when you finish a weld.

SPECIFICATIONS:

MACHINE SPECIFICATIONS:

MIG SPECIFICATIONS:

MMA SPECIFICATIONS:

Part Number/SKU: PK11122
