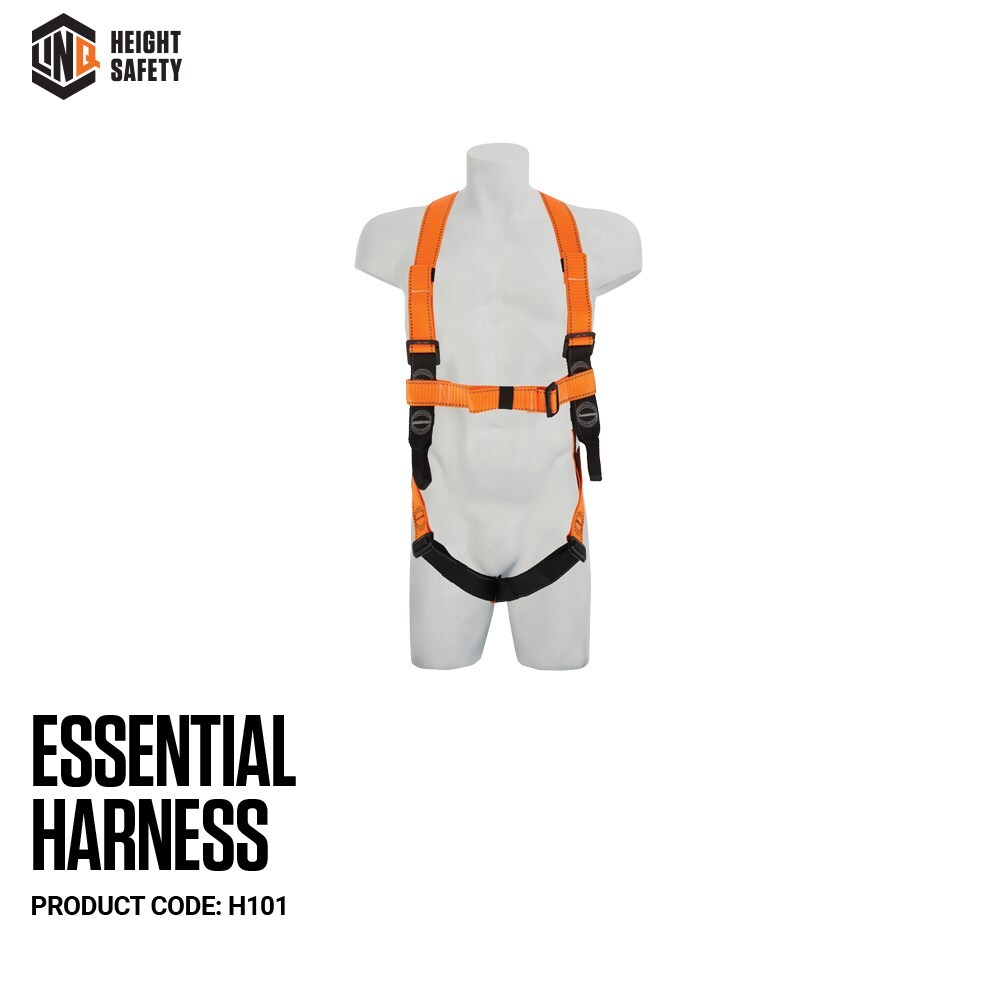

Essential Harness Standard (Medium-Large) H101

Pebble Weave Webbing design provides maximum grip for buckles, eliminating webbing slippage and the need for continual re-adjustment
High Tenacity UV stabilised webbing, enhances resistance to solvents and UV light degradation
Retro-Reflective Thread in webbing for improved visibility in low light
Large Dorsal D Ring for easier connection
Closed Loop Webbing system on rear Dorsal D maintains positioning of Dorsal D in the event of a fall. Significantly reducing the risk of injury from hardware hitting the back of workers head
Extended Belay Loops make connection of hardware easier, also maintains absolute front and centre positioning as per AS/NZS requirements
Sub Pelvic Strap integration along the line of Belay Loops, places the worker away from hardware in the event of a fall, significantly reducing the risk of injury from hardware hitting the worker
Articulated Chest Strap and shoulder adjustment points, designed for additional user comfort and female users, due to lower positioning of strap
Padding under buckles
Service Pouch on back

Technical Specifications

Webbing Material: Polyester; 45mm; UV Resilient
• Buckle Material: Corrosion resistant electrophoresis;
high tensile lightweight alloy steel
• Fall Arrest Hardware: Drop Forged corrosion resistant
electrophoresis; high strength alloy steel
• Thread: Polyester; 9.81 Newtons (10kg);
Extension at break 19.5%
• Stitch Pattern: THETA Pattern combines 313 stitches to
exceed 28kN of strength; AS/NZ compliant colour contrast.
• Plastic Material: UV stabilised high density polyethylene.
• Weight: 1.1kg
• Web Tenacity: Range: Min 28kN - Max 30kN.
• Drop Forged D Rings: Alloy Steel (standard): 40kN
• Buckle Strength: 12 to 17kN model dependent;
Laser etched or hard marked on buckle.


Part Number/SKU: H101

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU H101
Brand LinQ
Shipping Weight 3.0000kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
Shipping Cubic 0.125000000m3
Unit Of Measure ea
