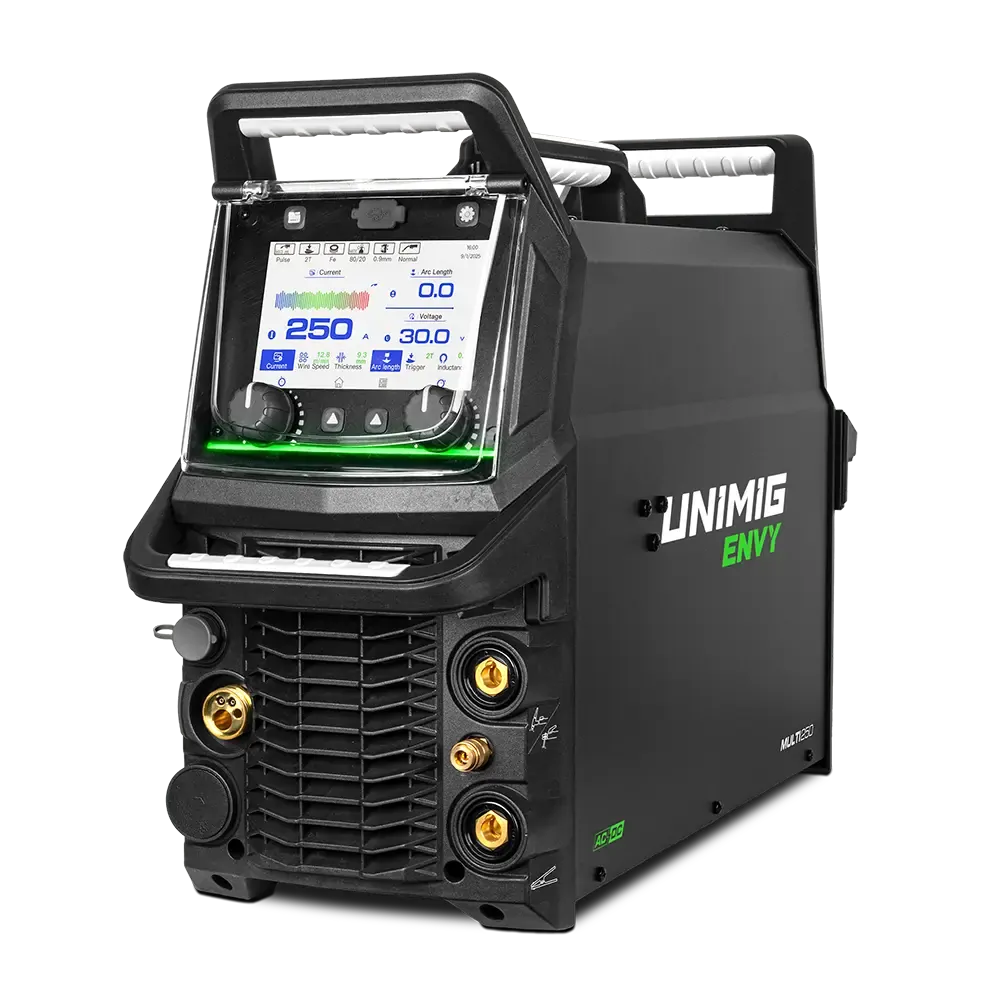

Envy Multi 250 AC/DC Welder Unimig U11238

DESCRIPTION:

Take your welding to the next level with the Unimig Envy Multi 250 AC/DC - a powerhouse multi-process welder packed with advanced features, precision control, and exceptional versatility. Whether you're working with aluminium, stainless steel, or mild steel, this machine delivers professional-grade results across AC/DC TIG, MIG, Flux-cored, and stick (MMA) processes.

FEATURES:

Multi-Process Capability: AC/DC TIG, high-frequency TIG, MIG, flux-cored, and MMA welding modes in one machine.
AC/DC TIG Welding: Weld aluminium and other non-ferrous metals with full control over frequency, balance, and waveforms.
Pulse TIG Function: Enhanced arc stability and heat control for ultra-precise TIG Welding.
Synergic MIG Programs: Pre-loaded settings for quick setup and consistent weld- ideal for beginners and pros alike.
Spool Gun Ready: Weld aluminium easily with the optional spool gun support.
2T/4T Trigger Modes & Job Memory: Customise control and save settings for repeatable results.
Large LCD Display: Easy-to-read digital interface with intuitive navigation and parameter control.
Water Cooler Compatible: Fully compatible with the UNIMIG U11243 Water Cooler and U11242 Trolley (Sold Separately)

SPECIFICATIONS:

TECHNICAL DATA:

SKU	U11238
Primary Input Voltage	240V Single Phase 50/60Hz
Supply Plug	15A
Ieff (A)	15.0
IMAX (A)	34.0
Rated Output	20-250A
No Load Voltage (V)	92V
Protection Class	IP21S
Insulation Class	H
Minimum Generator (kVA)	12.0
Dinse Connector	35/50
Standard	AS 60974.1
Welds	MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze \| MMA: Mild Steel, Stainless Steel, Cast Iron \| TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze

MIG SPECIFICATIONS:

MIG Welding Current Range	20-250A
MIG Duty Cycle @ 40Â°C	20% @ 250A, 60% @ 144A, 100% @ 112A
MIG Wire Size Range	0.6-1.2mm
MIG Wire Spool Size	5kg (200mm) / 15kg (300mm)
MIG Welding Thickness Range	1-12mm
Drive Roller Size	30/22

TIG SPECIFICATIONS:

TIG Function Type	AC/DC HF TIG & AC/DC Pulse
TIG Welding Current Range	3-250A
TIG Duty Cycle @ 40Â°C	30% @ 250A, 60% @ 177A, 100% @ 137A
TIG Welding Thickness Range	1-10mm

MMA SPECIFICATIONS:

STICK Welding Current Range	10-230A
STICK Duty Cycle @ 40Â°C	20% @ 230A, 60% @ 133A, 100% @ 103A
STICK Electrode Range	2.5-4.0mm
STICK Welding Thickness Range	2-12mm

DIMENSIONS:

L x W x H	810mm x 280mm x 520mm
Weight (kg)	34.5kg

Part Number/SKU: U11238

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	U11238
Barcode #	9333521060873
Brand	Unimig
Shipping Weight	40.0000kg
Shipping Width	0.350m
Shipping Height	0.650m
Shipping Length	0.950m
Shipping Cubic	0.216125000m3
Unit Of Measure	ea
