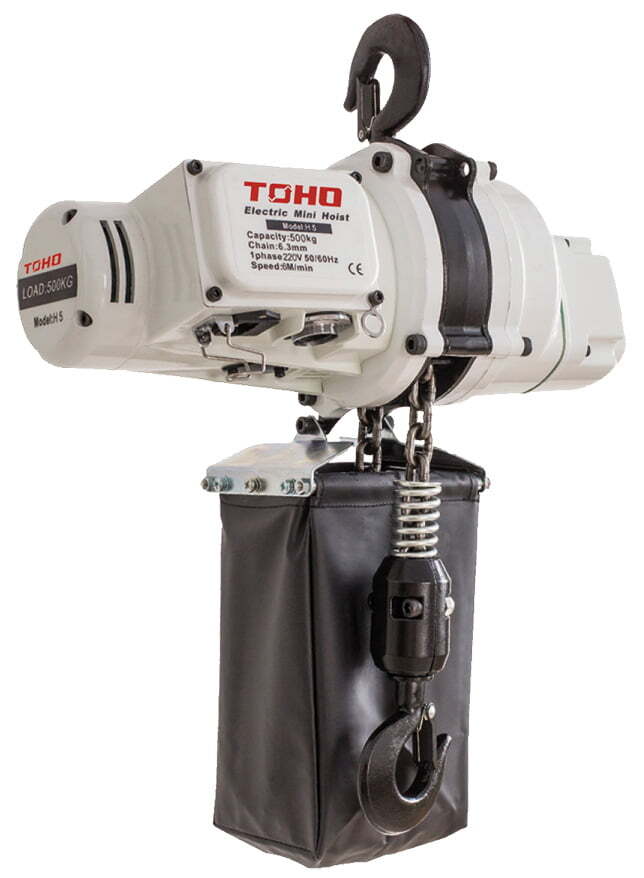

Electric Chain Hoist 3mtr 500kg Toho TECH0053

Features:

  • Load limited gear
  • Light weight, compact design with high efficiency motor
  • Pressed steel structure, high strength body
  • High tensile alloy steel top & bottom hooks
  • Compact chain container
  • Grade 80 – 6.3mm alloy steel load chain
  • Limit switches fitted at top and bottom ends to prevent chain runout
  • 1300W single speed motor
  • IP grade IP65

Specifications:

  • Power: 240V
  • Frequency: 50Hz
  • Motor power: 1300W
  • Weight capacity (Tonne): 0.5 tonne / 500kg
  • Standard lift: 3m
  • Lifting speed: 5m/min
  • Diameter of chain: 6.3mm

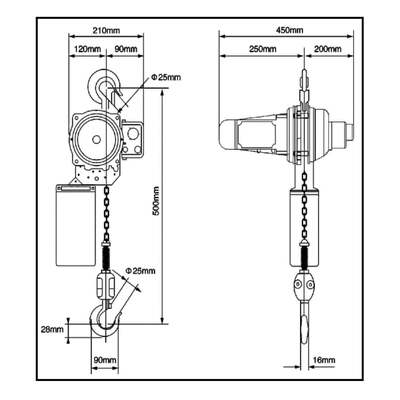

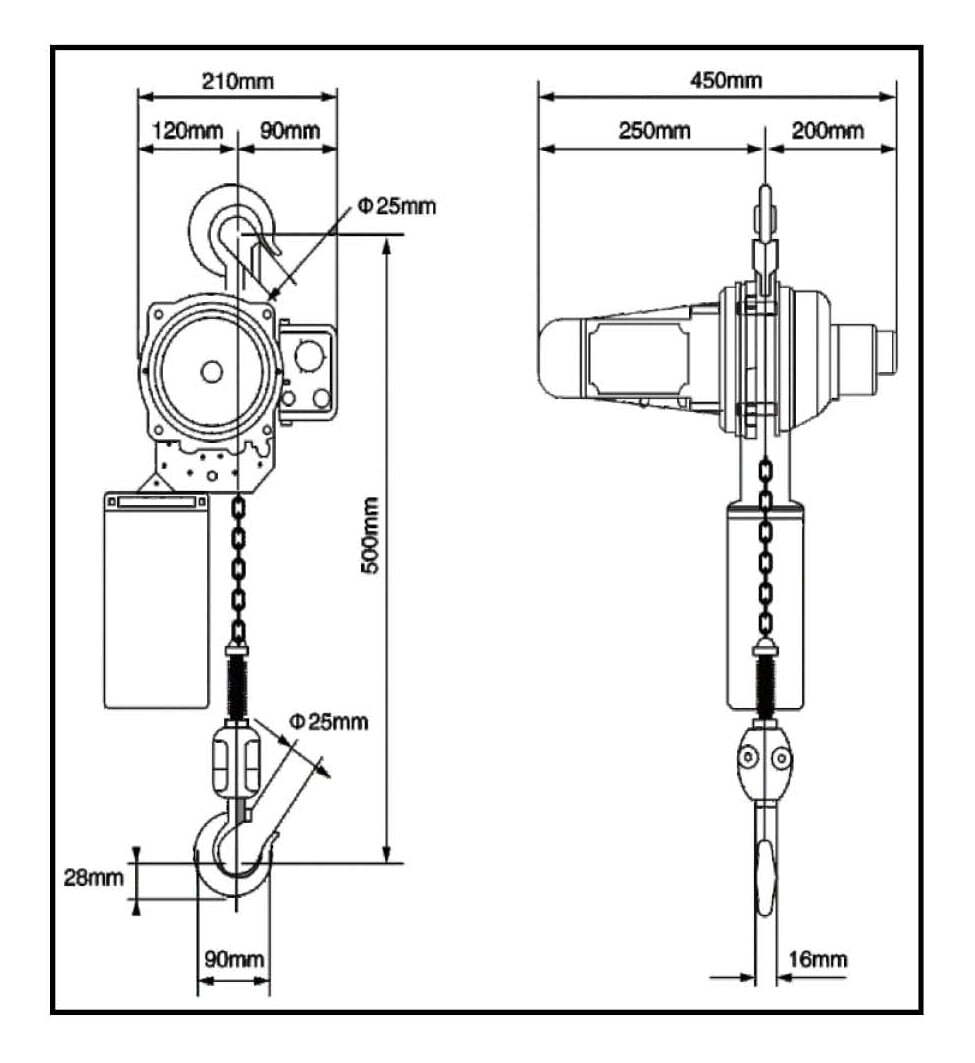

  • Dimensions (L x W x H): 450mm x 210mm x 480mm
  • Weight: 19kg

Part Number/SKU: TECH0053

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU TECH0053
Brand Toho
Shipping Weight 20.0000kg
Shipping Width 0.800m
Shipping Height 1.500m
Shipping Length 1.000m
Shipping Cubic 1.200000000m3
Unit Of Measure ea
