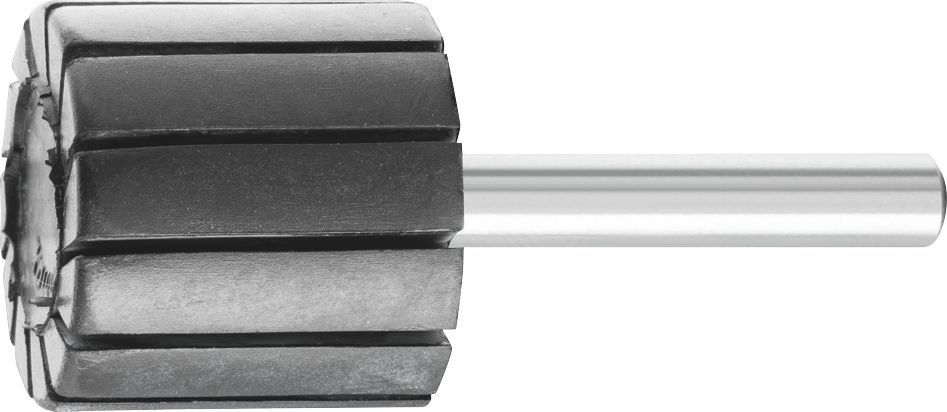

Drum Holder - 6mm Shank - GK 2525/6 Pferd 42107500

DESCRIPTION:

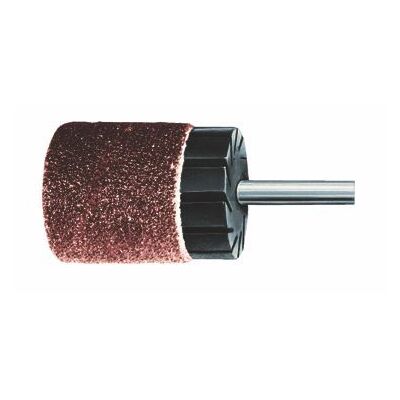

  • Compatible holder for cylindrical abrasive spiral bands.
  • In ISO 15637-1, cylindrical rubber drum holders are designated as holding fixtures of cylindrical abrasive sleeves.

FEATURES:

  • The abrasive spiral band is firmly held in place on the rubber drum holder as the holder expands during use.
  • Excellent tool life due to special manufacturing process - even under the most demanding operating conditions.
  • Maximum economic efficiency thanks to a particularly high stock removal rate and aggressive abrasive quality.

RECOMMENDATIONS FOR USE:

  • To easily change the abrasive spiral bands, give them a slight clockwise twist and pull them up and off. When doing so, leave the rubber drum holder clamped in the tool drive.
  • To ensure the abrasive spiral band is securely attached, adhere to the minimum speed for the rubber drum holder.
  • For the best results, use at a recommended cutting speed of 20-30m/s.

SAFETY NOTES:

  • The maximum permitted peripheral speed is 30m/s.

DRIVE TYPES:

  • Flexible shaft drive.
  • Straight grinder.

SPECIFICATIONS:

Dia. external 25 mm
Dia. shank 6 mm
Hardness 65–70
Length, shank 35 mm
Max. RPM 22900 RPM
PFERD TOOLS type GK
RPM, min. 16000 RPM
Width 25 mm
Version No information




Part Number/SKU: 42107500

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 42107500
Barcode # 4007220146866
Brand Pferd
Shipping Weight 0.20kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 0.200m
Shipping Cubic 0.004500000m3
Unit Of Measure ea
