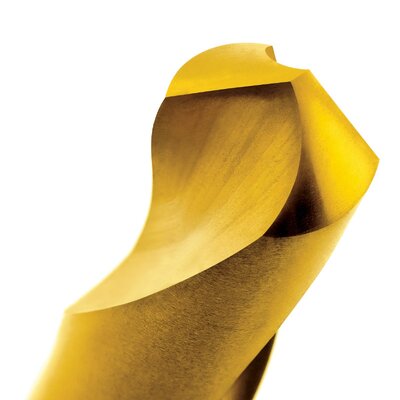

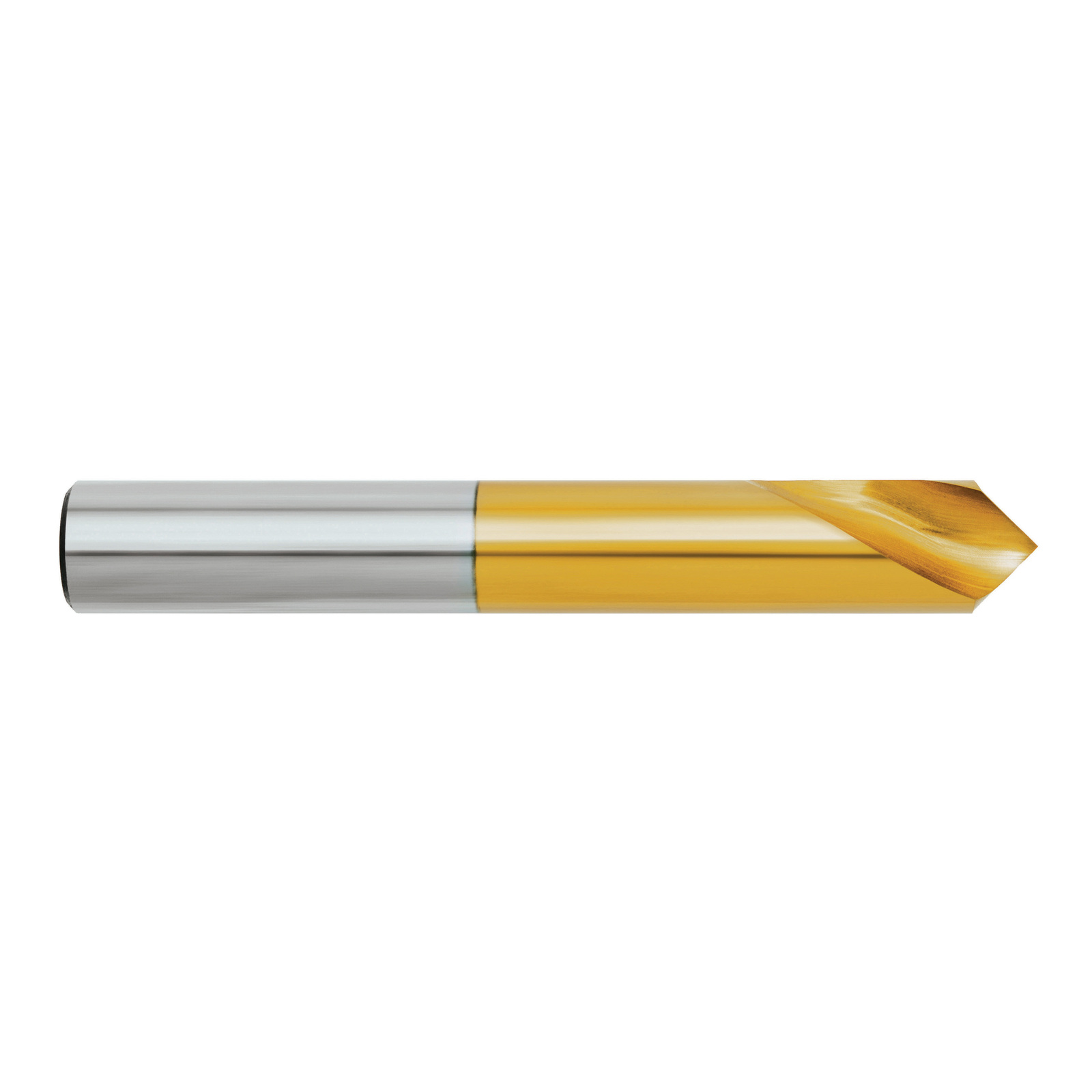

DRILL D175 10.0mm SPOTTING 90 deg. DIN1897 HSS-Co. TiN SUTTON D1751000



Descriptions

  • Precision drill for machine use
  • Refer to Carbide Drill section for VHM Spotting Drills

Features

  • Spotting Drill for “seat” position accuracy
  • 90° offers hole chamfering & spotting with the one tool
  • 120° for spotting, matching a typical drill point
  • Only drill to the depth of the point

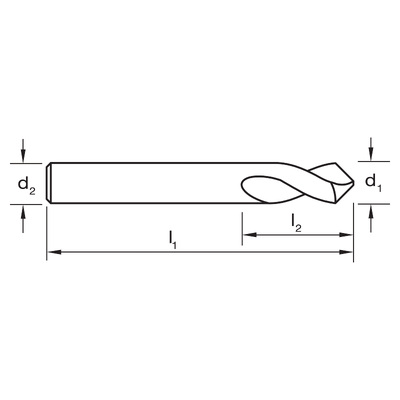

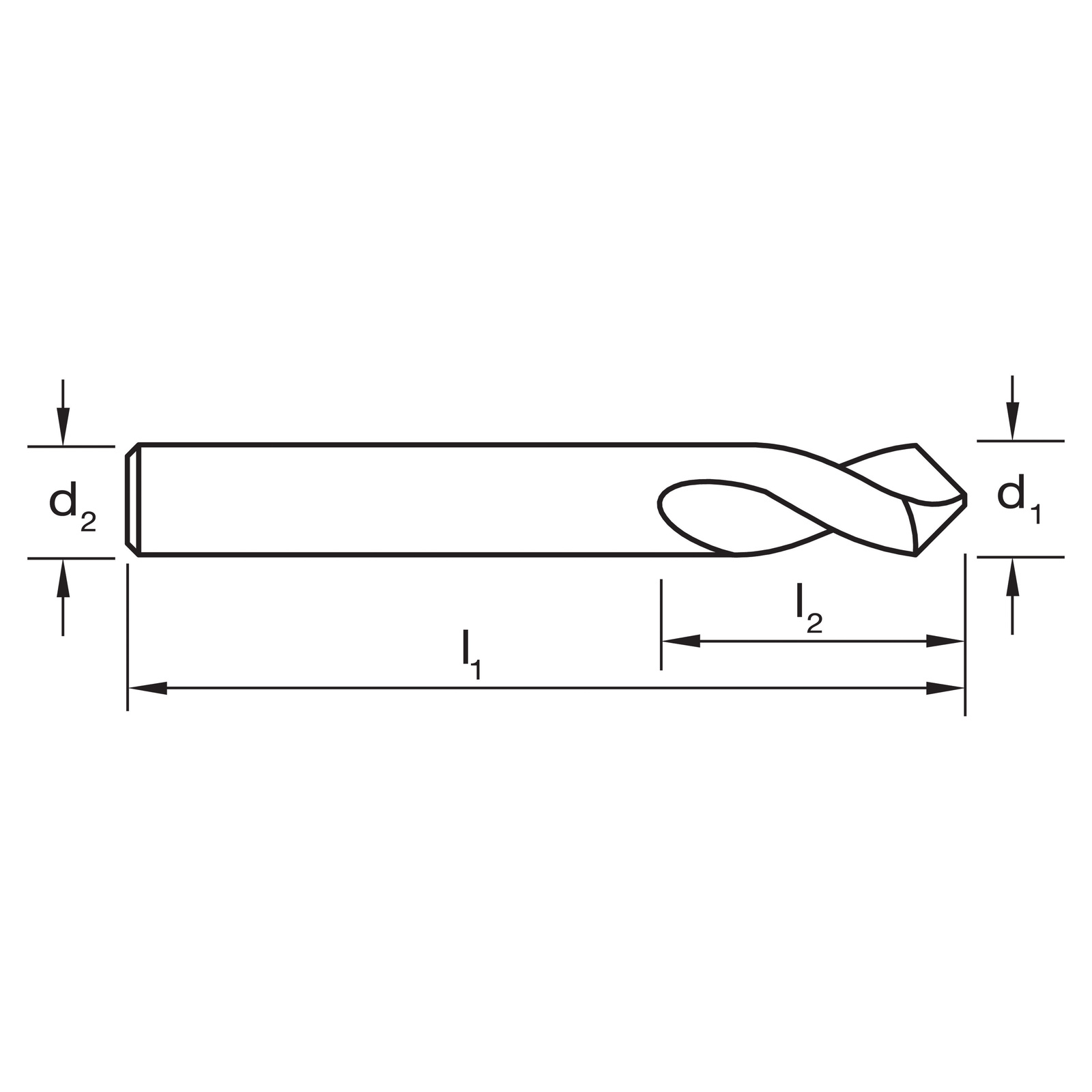

Specifications

  • Designation: N
  • Material: High Speed Steel Cobalt
  • Finish: TiN
  • Shank Form: A
  • X: als
  • Point Tolerance: h8
  • Shank Tolerance: h9
  • Point Type: 90°
  • Cutting Edges: ul
  • Standard: DIN 1897

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Stainless Steel – Duplex- 250 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB

Part Number/SKU: D1751000

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU D1751000
Barcode # 9311963081762
Brand Sutton Tools
Shipping Weight 0.0530kg
Shipping Width 0.015m
Shipping Height 0.009m
Shipping Length 0.115m
Shipping Cubic 0.000016000m3
