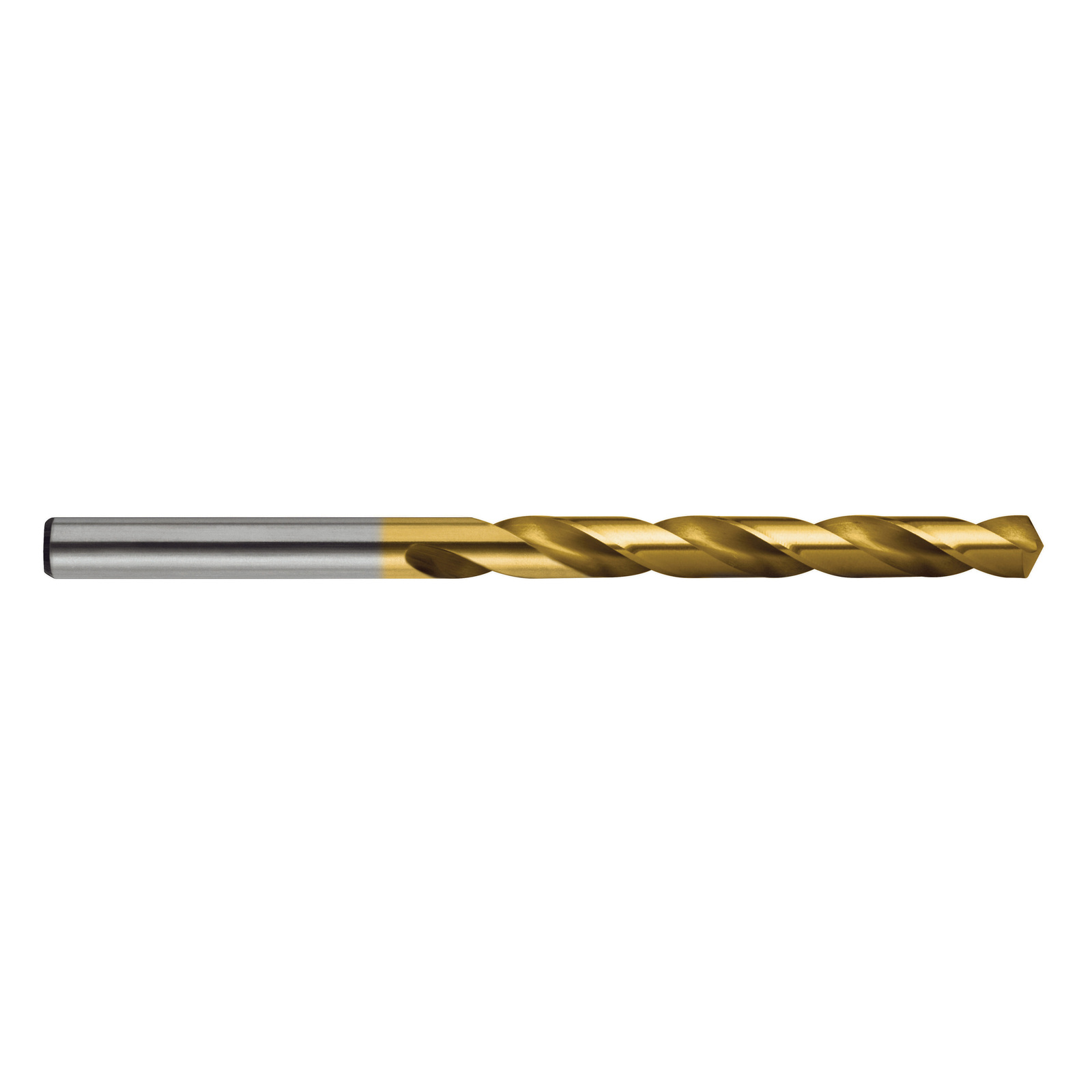

DRILL D103 1.0mm JOBBER DIN338 HSS TiN SUTTON D1030100



Descriptions

  • Sutton Tools TiNite® jobber drills are for high performance drilling
  • Lasts up to 6 times longer than standard HSS drill bits
  • For drilling metal & tougher alloy steels such as steel, stainless steel, copper, brass, aluminum & cast iron

Features

  • Cuts faster at higher speeds

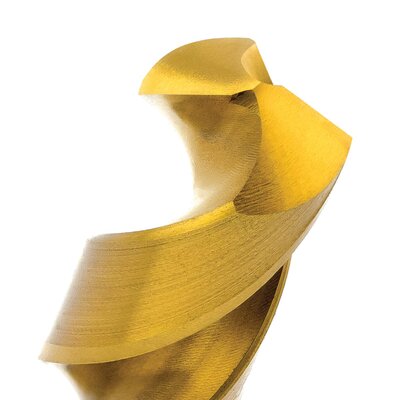

  • 118° web thinned point reduces the amount of thrust required
  • Precision ground flute offers high accuracy drilling and fast chip removal
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • TiN coating provides 3 to 6 times longer tool life than uncoated tools and is suitable for general purpose use in a wide range of applications

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: TiN
  • Maximum Cut Depth: 5XD
  • Shank Form: A
  • Helix Angle: R30
  • X: als
  • Point Tolerance: h8
  • Point Angle: 118°
  • Point Form: Form A
  • Cutting Edges: ul
  • Standard: DIN 338

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Steel - High alloy, cast & tool- 325 HB
  • Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic- 200 HB
  • Optimal for Steel - Corrosion resistant & cast - Martensitic- 240 HB
  • Optimal for Stainless Steel - Austenitic- 180 HB
  • Optimal for Stainless Steel - Duplex- 250 HB

Part Number/SKU: D1030100

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU D1030100
Barcode # 9311963367354
Brand Sutton Tools
Shipping Weight 0.0030kg
Shipping Width 0.011m
Shipping Height 0.009m
Shipping Length 0.082m
Shipping Cubic 0.000008000m3
