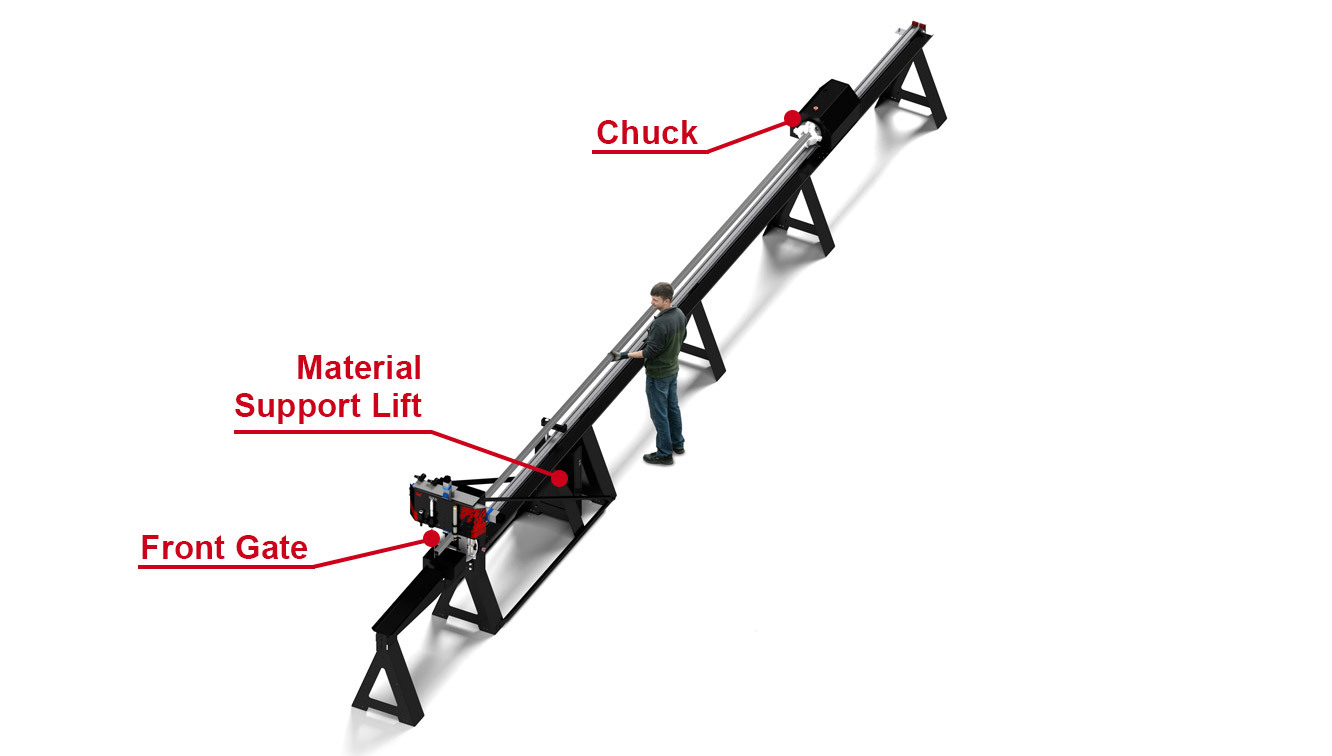

Dragon A400 Bend Tech CNC Tube Production Machine A400
The Dragon A400 uses plasma cutting, marking, and engraving to make CAD/CAM designs a reality. Any design of holes and end cuts can be plasma cut on the Dragon A400. The machine marks clear bending instructions such as bend location, rotation, and degrees on the tube. For shops that fabricate with tube and pipe, the Dragon A400 is the essential tool for success.
Improving the Bottom Line
The Dragon is like having two or three people who just cope and cut it to length all day. It is exponentially faster than how we used to process. We had used only hand processes and were using a belt notcher to put saddles in our tubing. I wanted to eliminate anything really laborious that I could. That machine essentially does all of that.” - Andy Hobbs, Nashville Fabrication.
Increase Efficiency and Accuracy with CNC Automation
The best production investment I’ve ever made.
- Mike Workman, Burlington Miscellaneous Metals.

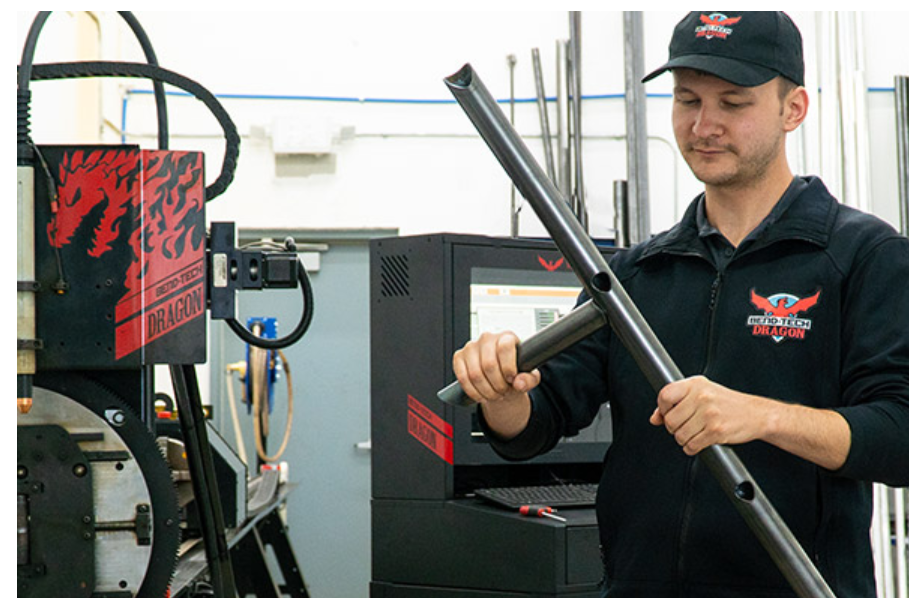

Cutting Edge Plasma
“Albina Co purchased the Dragon A400 and immediately identified how valuable this tool would be. The quality of the machine is exceptional. The quality and the consistency in the cut are outstanding. The operator interface is easy to learn and very user friendly. This piece of equipment has been a great asset to us and our customers allowing us to quickly provide a high-quality part with a quick turnaround. Albina Co is very impressed with the machine and the customer support that Bend-Tech provides.” - KC Lesch
Built to Handle Your Material
Material Types
- Steel
- Stainless Steel
- Galvanized Steel
- Aluminum
- Black Pipe
- Chrome Alloy
- Any type of electrically conductive metal
Material Length
- The Dragon A400 handles full 24 ft. (7.31m) length material.
- The chuck has a pass through ability for round material with a 2” or less OD to accommodate longer than standard pieces.
Material Thickness
1/32” (0.79mm) - 5/8" (15.8mm)
Material Sizing
- Round: 0.75” (19mm) - 6” (152.4mm)
- Square: 1” (25.4mm) - 4" (101.6mm)
- Rectangle: 1” (25.4mm) - 4” (101.6mm)
- Angle: 1” (25.4mm) - 4” (101.6mm)
- Channel: 1” (25.4mm) - 4” (101.6mm)
Material Weight
- Maximum capacity of 400 lbs (181.4kg)
Quick and Easy Loading Process
Design to Production Made Easy with Powerful CAD & CAM Software
The Bend-Tech Software provides a smooth transition from design to finished part. Easy to use, the software eliminates a considerable amount of waste in time and mistakes. The Bend-Tech Software is an essential part of the Dragon A400, it is part of what makes the machine the best tube cutter in the market. The Bend-Tech Software has been in use by over 27,000 fabricators. For 20 years the Bend-Tech Software has had a fully staffed software development team making improvements to create the best tube design software on the market. Every Dragon comes standard with the powerful Bend-Tech Software.
Part Number/SKU: A400
* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
SKU | A400 |
Brand | Bend-Tech |
Shipping Weight | 300.0000kg |
Shipping Width | 1.100m |
Shipping Height | 1.000m |
Shipping Length | 1.200m |
Shipping Cubic | 1.320000000m3 |
Unit Of Measure | ea |
