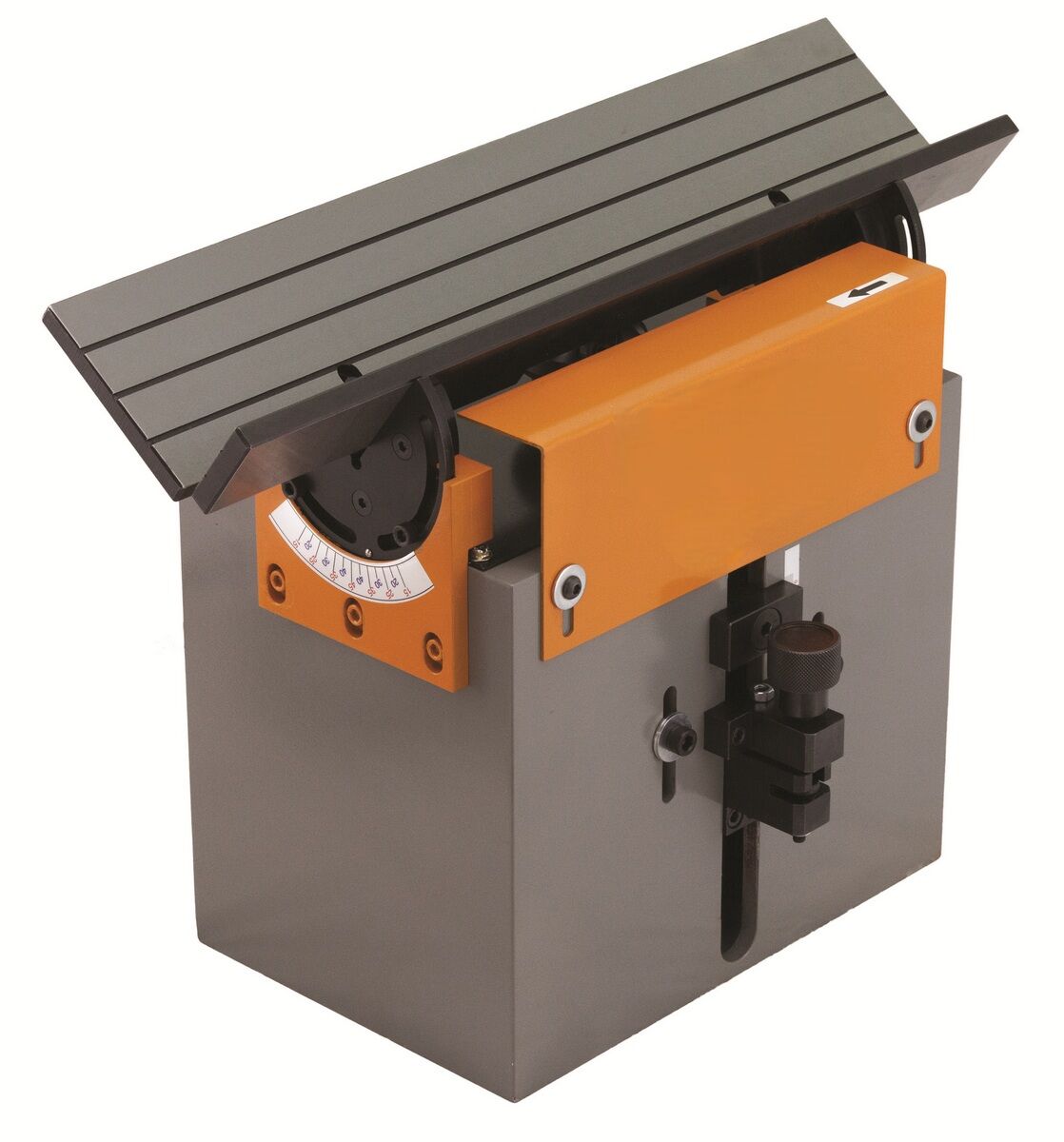

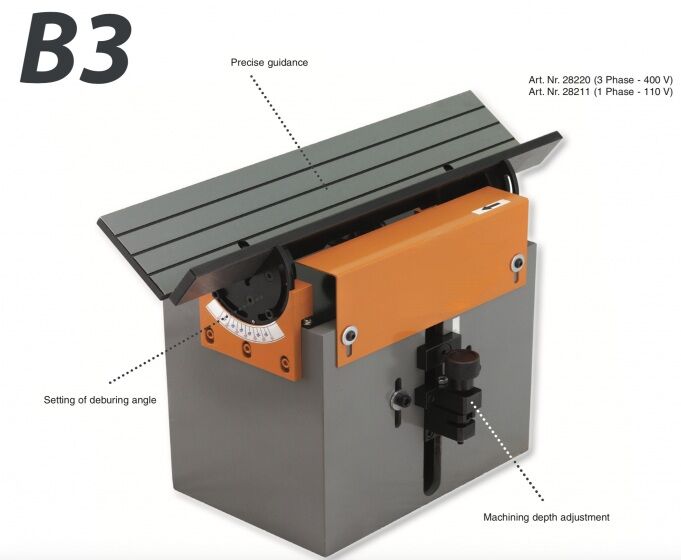

Deburring and Bevelling System B3 Excision 28220

DESCRIPTION:

The B3 machine is intended for deburring and bevelling of the smaller steel workpieces. The workpieces are inserted directly into the machine and are guided manually.

FEATURES:

• Scale adjustment of the cut
• Protective security guards

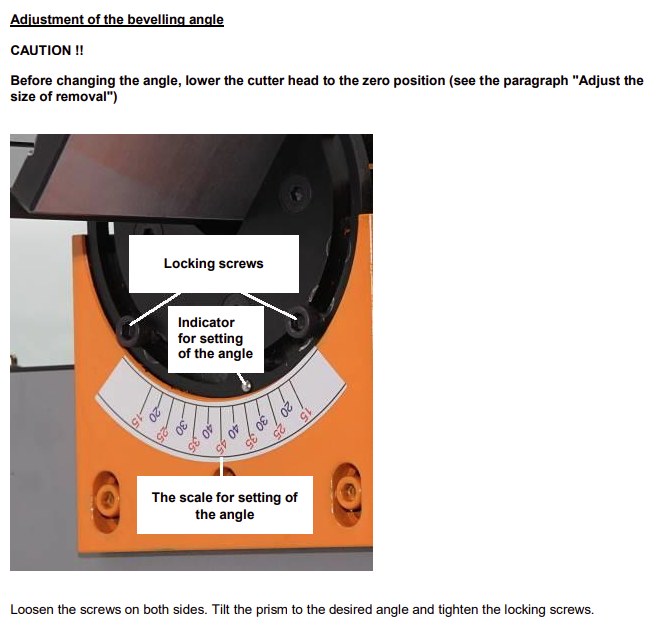

• Adjustable angle chamfers
• For steel, stainless steel, aluminum, and other materials.
• Exact massive and luxuriously long plate fences.

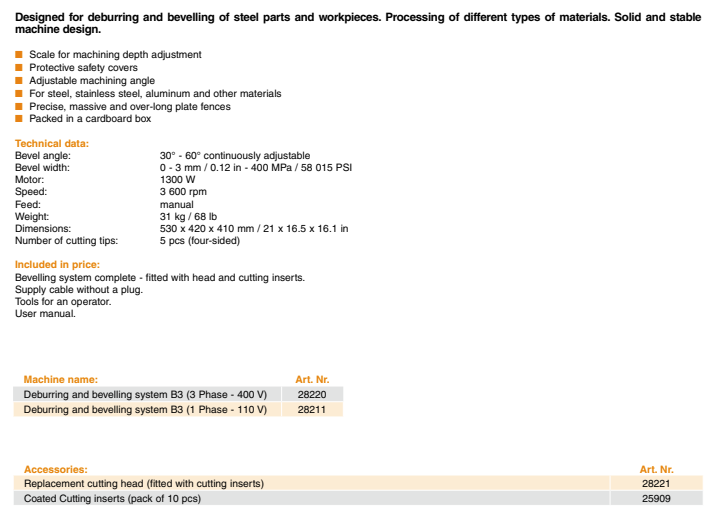

TECHNICAL SPECIFICATIONS:

Bevel angle: 30° - 60° infinitely adjustable

• Bevel width: 0 - 3 mm / 0 - 0.12 in
• Voltage: 400V/ 50 Hz/3phase;  110V/50 Hz/1-phase
• Power of motor: 1,3 kW
• Router speed: 3,600 ot./min
• Feed: hand-operated
• Weight: 31kg
• Dimensions: 530x420x410mm
• Number of inserts: 5 pcs (square)

OLD PART NO: 25250

https://www.nationalwelding.com.au/excision-alfra-ksl-deburring-bevelling-machine-p-9846

Part Number/SKU: 28220
