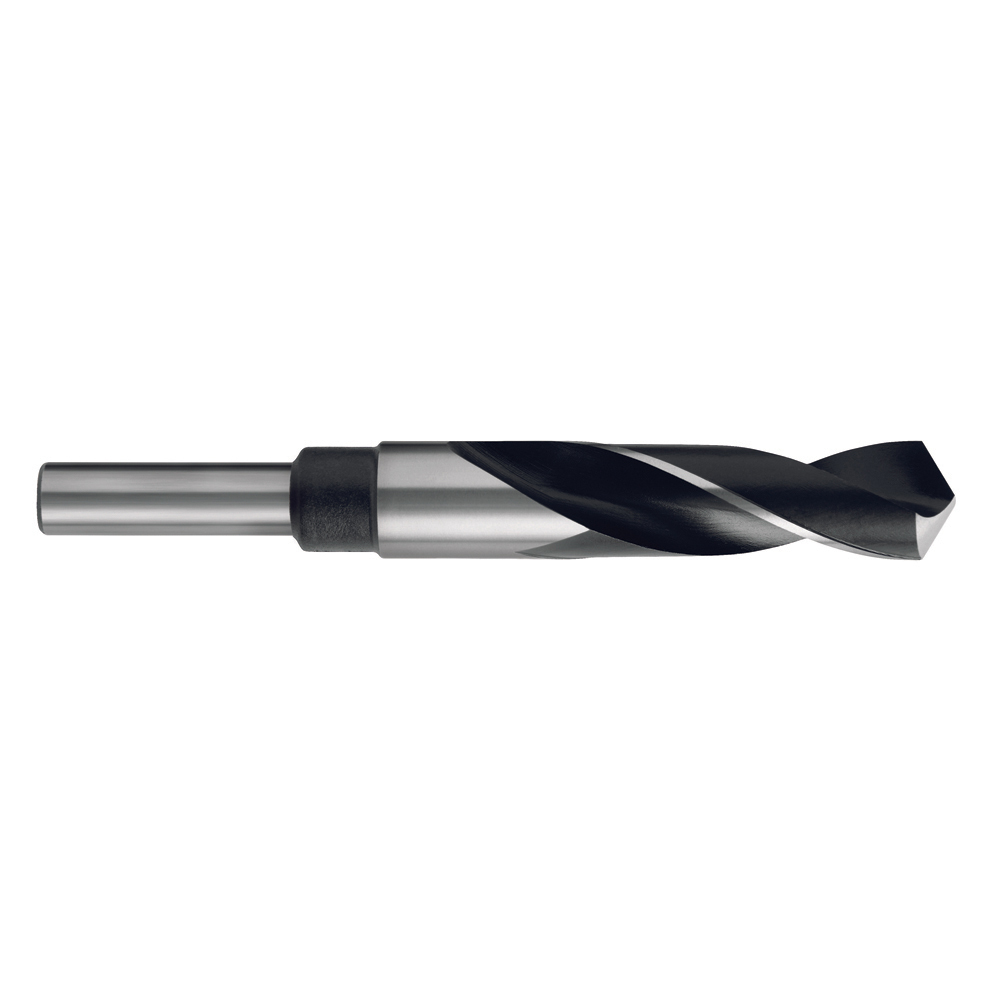

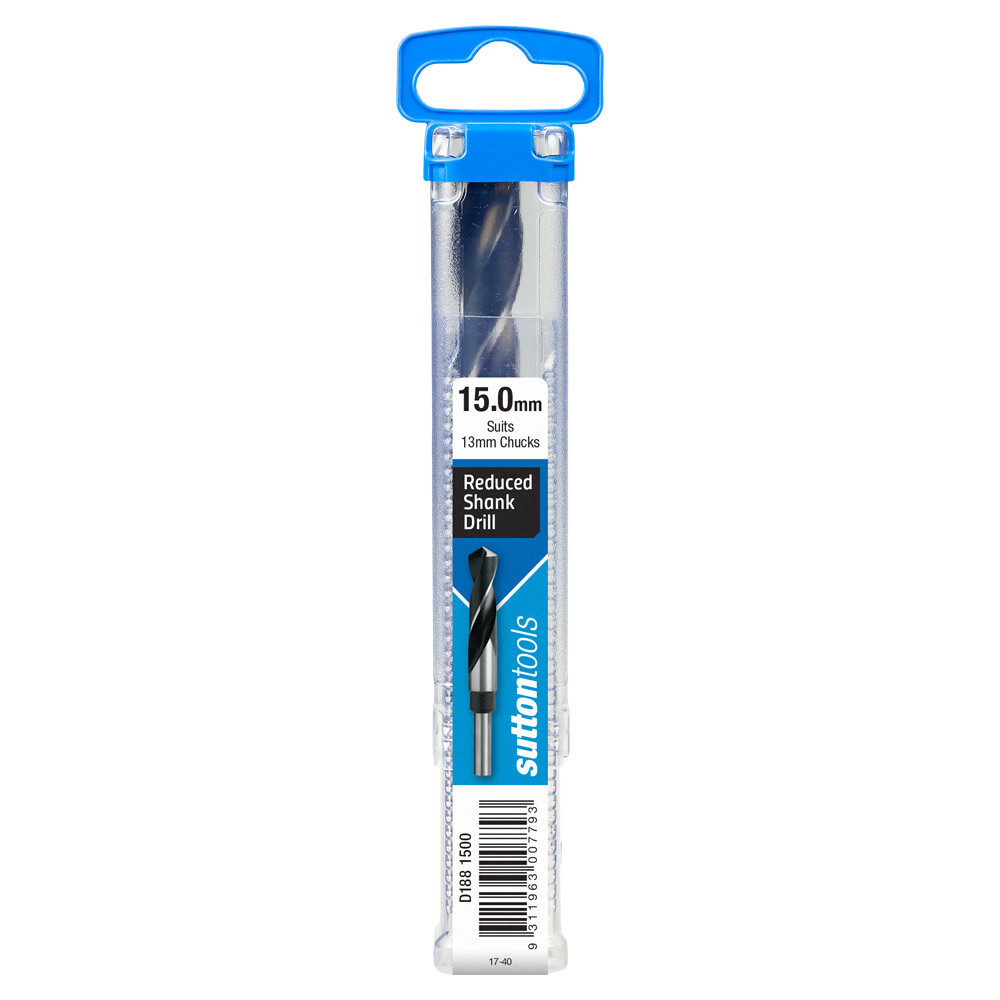

D188 Reduced Shank Drills 15mm Sutton Tools D1881500

DESCRIPTION:

Sutton Tools Reduced Shank Drills are designed to increase the drilling capacity of drill chucks and for slow speed (350 RPM or less), large-scale boring. Reduced shanks suit 13mm drill chucks. All drills have a 152mm overall length and 86mm flute length.

FEATURES:

  • Common Length 6" (152mm) overall length with a 3 3/8" (86mm) flute length
  • Reduced shanks suit 13mm drill chucks
  • 118° standard point for general-purpose applications
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Blue surface finish for ferrous applications. The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low-carbon steels.


SPECIFICATIONS:

  • Designation: N
  • Material: HSS
  • Finish: Blu
  • Max Cut Depth: 5xD
  • Shank Form: A
  • Helix Angle: R30
  • x : als
  • Point Tolerance: h8
  • Point Angle: 118°
  • Point Form: Form A
  • Cutting Edges: ul
  • Standard: Sutton

APPLICATIONS:


Part Number/SKU: D1881500

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU D1881500
Barcode # 9311963007793
Brand Sutton Tools
Shipping Weight 0.8000kg
Shipping Width 0.200m
Shipping Height 0.250m
Shipping Length 0.250m
Shipping Cubic 0.012500000m3
Unit Of Measure ea
