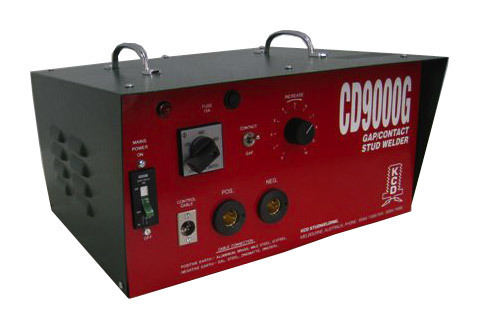

CD9000 With Standard Gap Gun Cap M3 to M6 M/Steel S/Steel Aluminium (Gap) Brass with Gap Gun for Aluminium & Brass

Technical Data

STUD RANGE	M3 to M10
STUD MATERIAL	Mild Steel Stainless Steel Aluminium (Gap gun required) Brass (Gap gun required)
WELD MODE	Contact/Gap
INPUT POWER	240V
CAPACITANCE	126,000mfd
WEIGHT	32kgs
SIZE (L.W.H.)	356 x 436 x 245mm
SAFETY	Primary: Fuses Output Voltage: Circuit Breaker



Description

TYPICAL APPLICATIONS

There are literally hundreds of applications – wherever you require a fastener end-joined to a metal surface - instantaneously.

DOMESTIC APPLIANCE MANUFACTURERS

Including refrigerators, washing machines, dish washers, stoves, heaters, fittings, etc.

MOTOR VEHICLE MANUFACTURERS

Decorative trim, panels, structural, labels, locks, handles, etc.

MANUFACTURING JEWELLERS

Attachment of pins and clips.

CONSTRUCTION INDUSTRY

Attachment of insulation.

SHIPBUILDING

Installing insulation to steel and aluminium bulk heads and panels

GENERAL FABRICATION

Panels, sink units, sheet metal work, duct work, etc.

ELECTRICAL & ELECTRONIC INDUSTRY

Light fittings, transformers, cases, valves, semi-conductors.

AIRCRAFT MANUFACTURERS

Ducting, sealing and studding of non-stress assemblies.

CHEMICAL PLANT MANUFACTURERS

Fabrication of pressure vessels, tanks, heat exchanges, duct work.

Back to Top

Details

SPEED OF OPERATION

Welding time is less than 0.0002 seconds. 15 welds per minute possible.

COST SAVING

Speed of operation and portability cut costs up to 10 times compared with conventional methods, drilling tapping etc. Material saving by virtue of simpler design.

RELIABILITY

Robust construction and solid state components insure long life and dependability in harsh working environment.

NO REVERSE SIDE MARKING

No distortion or burning. Therefore no reworking on the reverse side.

SIMPLE TO OPERATE

Unskilled operators are all that is needed. No flux, ferrules or inert gas
required.

Part Number/SKU: CD9000-StdGapGun
