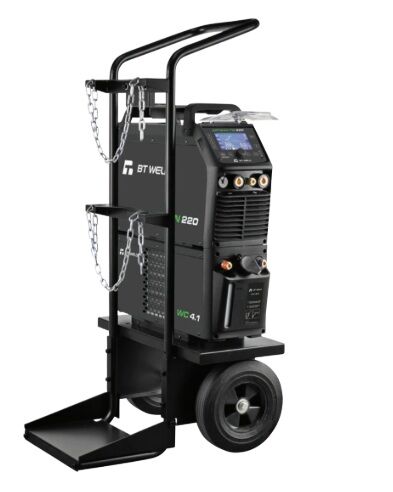

ARTISAN TIG 220 W AC/DC Pulse HF 240V BT Weld 652225

DESCRIPTION:

  • Duty Cycle: 40% @ 220A
  • Generator: 10 Kva
  • Plate Thickness:  Max. 10mm
  •  Material:  Mild Steel, Stainless Steel, Brass / Copper, Aluminum

PROCESS:

  • TIG AC/DC PULSE HF
  • TIG LIFT DC
  • STICK (MMA) AC/DC

FEATURES:

  • 200A Output, 15A plug
  • HF/LIFT TIG AC/DC Welder
  • 4.3" Colour LCD Screen
  • Adjustable Pulse
  • AC/DC Waveforms
  • 2T/4T Trigger Latching
  • Weld Parameter Storage
  • Foot Control Ready
  • PFC
  • Water Cooler 4L
  • 2-Wheel Trolley

SPECIFICATION:

Primary Input Power                1 Phase 240V 50-60 HZ +/-15%
Duty Cycle @ 40˚C 10min

40% @220A
60% @180A
100% @140A

 20% @200A
60% @130A
100% @100A
             TIG              MMA
                                                   AC         DC      AC     DC
Effective Current (A)         14.9    15.9  17.2 18.5
Rated Input Current (A)   19.2   20.5  29.1 31.3
Welding Current Range (A)    4.4    4.7   6.7 7.2
Welding Current RANGE (A     10 - 220                 10 - 220
I Max (A)                                  21.0  22.5 30.0 32.0
I eff (A)  13.6 14.2 13.4 14.3
Tungsten Diameter Range 1.0-3.2mm
Electrode Diameter Range 1.6-5.0mm
Protection/Insulation Class IP23S/S
Power Factor/Efficiency 0.99/89.3%
Dimensions L57 x W55 x H112 cm
Weight 42.4kg
Warranty 3 year
Part Number 652225

STANDARD PACKAGE INCLUSIONS:

  • BT Artisan 220 TIG Welder 240V
  • BT Weld Water Cooler 4L Single Phase 240V
  • BT Weld TR2 Welder & Cylinder Trolley
  • 18 Series Water-Cooled TIG Torch With Current Control 4Mt
  • Twist Lock Electrode Holder 4mt
  • Earth Clamp 300Amp 3mt
  • Argon Regulator With Flowmeter
  • Quick Connect Gas Hose 2mt
  • BT Weld Water Cooler Coolant Liquid 5L




Part Number/SKU: 652225

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 652225
Brand BT Weld
Shipping Weight 43.0000kg
Shipping Width 0.650m
Shipping Height 1.220m
Shipping Length 0.950m
Shipping Cubic 0.753350000m3
Unit Of Measure ea
