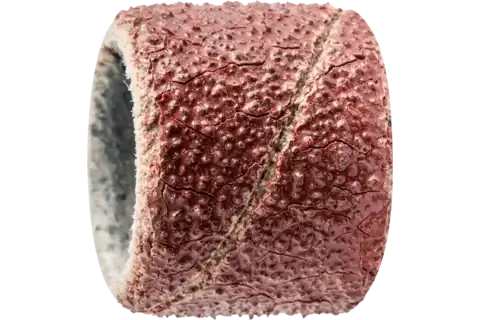

Aluminium Oxide Abrasive Spiral Bands KSB Cylinder Dia. 10 x 10mm A80 Pferd 42231108-25

DESCRIPTION:

• For general applications from coarse to fine grinding.
• In ISO 2421, abrasive spiral bands are designated as "cylindrical sleeves".
• KSB = small pack of abrasive spiral bands

ADVANTAGES:

• The abrasive spiral band is firmly held in place on the rubber drum holder as the holder expands during use.
• Excellent tool life due to special manufacturing process – even under the most demanding operating conditions.
• Maximum economic efficiency thanks to particularly high stock removal rate and aggressive abrasive quality.

TECHNICAL INFORMATIONS:

• Abrasive: Aluminium oxide A
• Dia internal: 10 mm
• Dia. external: 10 mm
• Grit size: 80
• Height: 10 mm
• RPM, optimum: 30.000 - 44.000 RPM
• Packaging unit: 25 pieces

RECOMMENDATIONS FOR USE:

• To easily change the abrasive spiral bands, give them a slight clockwise twist and pull them up and off. When doing so, leave the rubber drum holder clamped in the tool drive.
• To ensure the abrasive spiral band is securely attached, adhere to the minimum speed for the rubber drum holder.
• For the best results, use at a recommended cutting speed of 20-30 m/s.
• Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.

ORDERING NOTES:

Please order rubber drum holder separately.

SAFETY NOTES:

• The maximum permitted peripheral speed is 30 m/s.
• For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
• Do not allow abrasive spiral bands to protrude beyond the rubber drum holder.

MATERIALS THAT CAN BE WORKED:

• Aluminium
• Annealed cast iron
• Brass
• Bronze
• Cast steel
• Cobalt-based alloys
• Copper
• Fibre-reinforced thermosetting plastics (GRP, CRP)
• Grey/nodular cast iron (GG/GJL, GGG/GJS)
• Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
• Stainless steel (INOX)
• Steel materials with a hardness > 54 HRC
• Steels up to 1,200 N/mm² (< 38 HRC)
• Thermoplastics

APPLICATIONS:

• Deburring
• Leveling
• Roughening
• Sharpening
• Step-by-step fine grinding
• Surface work
• Working on edges
• Work on weld seams

DRIVE TYPES:

• Flexible shaft drive
• Straight grinder

Part Number/SKU: 42231108-25
